Most popular loading and unloading conveyor system for truck cargo-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Home Use, Manufacturing Plant, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Farms, Restaurant, Printing Shops, Construction works , Energy & Mining

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Belt Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz

Power:1.5 KW

Dimension(L*W*H):L4700*W600*H700/2500 mm

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Factory QC Report

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2021

Warranty of core components:1 Year

Core Components:Gear, Gearbox, Motor, Pump

Weight (KG):2000 kg

Belt Width:600mm

Table Width:800mm

Adjustable Height:700-2500mm

Adjustable Speed:10-20m/min

Motor Power:1.5kw,2.2kw

Packing Size:L4900*W1240*H1625mm,850KGS

Belt Material:anti-skiding green PVC belt

Caster:6" heavy duty swivel lockable PU casters

Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop

After Warranty Service:Online support, Video technical support

Local Service Location:None

After-sales Service Provided:Free spare parts

Product Overview

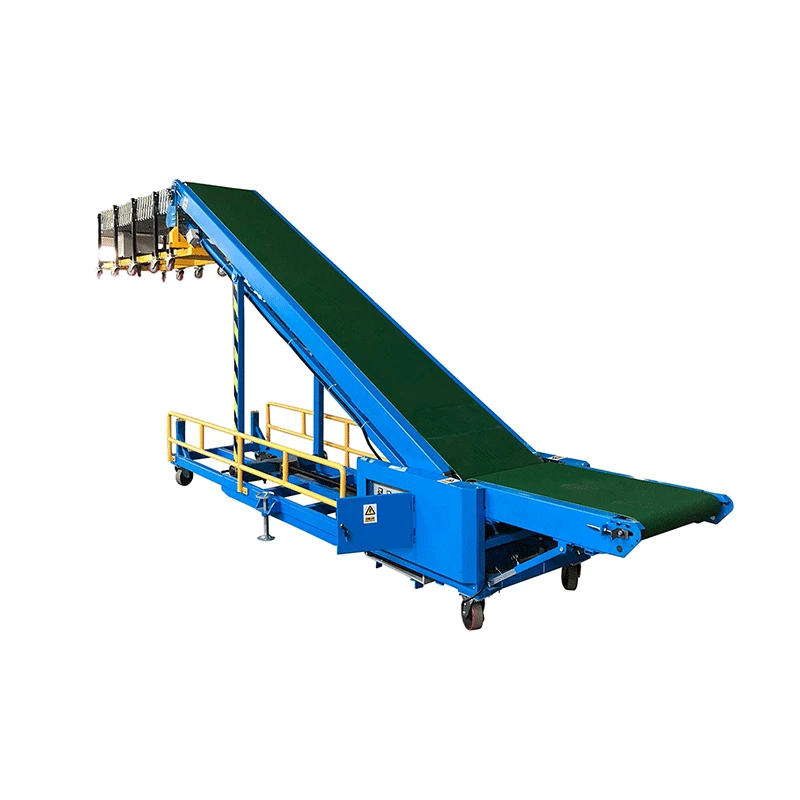

TLC-P600 Truck Loading Conveyor

The Truck Loading Conveyor is consist of two parts:

Front Flexible Tongue and Inclined Belt Conveyor.

It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.

PART 1.Flexible Powered Roller Conveyor-O belt

Size(mm):L4800/1840*W600*H700/1000

Variable Speed(m/min):10-18

Load Capacity(kg/m):50

Power(kw):0.36

*Belt:high quality O ring PU belt

*Roller:Dia 50mm galvanized steel roller,roller center Max 130mm

*Caster:5'' swivel lockable casters

*Frame:3.5mm thickness galvanized curved join plates with better load

*Leg:32×32 outer tube with 25×25 inner tube,spray
paint black

*Control Box:Forward/Stop/Reverse,Emergency Stop

PART 2.Inclined Belt Conveyor

Size(mm):L4700*W600*H700/2500

Variable Speed(m/min):10-20
Load Capacity(kg/m):50
Power(kw):3.7

*Standard Belt: 600*3mm anti-skiding stripy belt Forbo Seigling

*Option Belt: 600*5mm rough top green PVC belt

*Caster:6" heavy duty swivel lockable PU casters

*Control Panel: Belt Forward, Stop, Reverse,Up, Down, Emergency Stop

*Voltage:220V,1-Phase,50Hz or 380V,3-Phase,50Hz

*Part 1+2 Packing Details:

L4900*W1240*H1625mm,850KGS

Technical Parameters

Model	Belt Width（mm）	L1（mm）	L2（mm）	L3（mm）	L（mm）	H1（mm）	H1（mm）
TLC-P600	600	900	3700	1800	4200	700	700-2500

Details Image

With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons

Control panel covered by a lockable door

PVC anti-skiding belt

With two side guards

Mobile on lockable swivel casters

Belt tighten system

Flexible conveyor bracket and main conveyor are joint by screws

Screw lift system

Lock the foot to be more stable when rise up

Successful Project

Installation Instructions

SIMILAR PRODUCTS

truck loading conveyor

telescopic belt conveyor

flexible gravity/powered conveyor

flexible skate wheel conveyor

aluminum belt conveyor

gravity roller conveyor

Company Profile

FAQ

Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service？
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

The use of this high-tech product reduces the number of unskilled workers needed in the production process. Besides, it also raises productivity. Equipped with a PLC control, it ensures high efficiency. With the help of this product, time, money, and labor are significantly saved and reduced. This product can greatly reduce the production cost of the manufacturer. Equipped with a PLC control, it ensures high efficiency.
