Mobile loading conveyor for paddy mobile lifting belt conveyor with rotarywheel

这里可以自定义设置
Mobile loading conveyor for paddy mobile lifting belt conveyor with rotarywheel
B站不支持收货地址
B站不支持库存规格
Model
Vertical Conveyor,Other
MOQ
50KG
Start Port
Sea freight
Certification
Customized logo (Min. Order: 3 Sets),Customized packaging (Min. Order: 3 Sets),Graphic customization (Min. Order: 3 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Load Capacity
TLC-P600
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Heat Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V, 220V/380V
Power:2.2 KW
Dimension(L*W*H):L4700*W600*H700/2500 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Motor, Gear, Gearbox, Frequency Inverter
Weight (KG):800 kg
Belt Width:600mm or 800mm
Belt Material:anti-skiding green PVC belt
Front Tongue:4.2m powered roller
Adjustable Speed:10-20m/min
Adjustable Height:700-2500mm
Motor Power:1.5kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:6" heavy duty swivel lockable PU casters
Packing Size:L4900*W1240*H1625mm
After Warranty Service:Video technical support, Online support
Local Service Location:None
After-sales Service Provided:Free spare parts
Certification:CE
Video Description
Product Overview


Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,
distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.The Truck Loading Conveyor is consist of two parts: Front Flexible Tongue and Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.

Part 1
Flexible Powered Roller Conveyor
Rollers: Dia 50mm steel rollers
Adjustable Length: 2-4.2m
Adjustable Height: 700-1000mm
Adjustable Speed: 10-18m/min
Load Capacity: 50kg/m Direction: forward & reverse
Part 2
Inclined Belt Conveyor Belt: 600mm rough top PVC material
Adjustable Height: 700-2500mm Adjustable Speed: 10-20m/min Load Capacity: 50kg/m
Direction: loading & unloading
Technical Parameters
Model
Belt Width(mm)
L1(mm)
L2(mm)
L3(mm)
L(mm)
H1(mm)
H2(mm)
TLC-P600
600
900
3700
2000
4200
700
700-2500
TLC-P800
800
900
3700
2000
4200
700
700-2500
Details Images





Control Panel
OFF/ON, Power, Abnormal, Transition, Forward/Up, Stop, Reverse/Down, Emergency Stop,Speed Kob buttons




Easy Set Up
Flexible conveyor bracket and main conveyor are joint by screws. It can be removed quickly when not need.




Screw Lifting System
The belt conveyor is lift up by screw system rather than hydraulic.




Anti-skiding PVC belt
600mm width
5mm thickness
rough top
PVC material
Successful Project

2012 Project In Mombasa,Kenya

Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.

2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.

2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

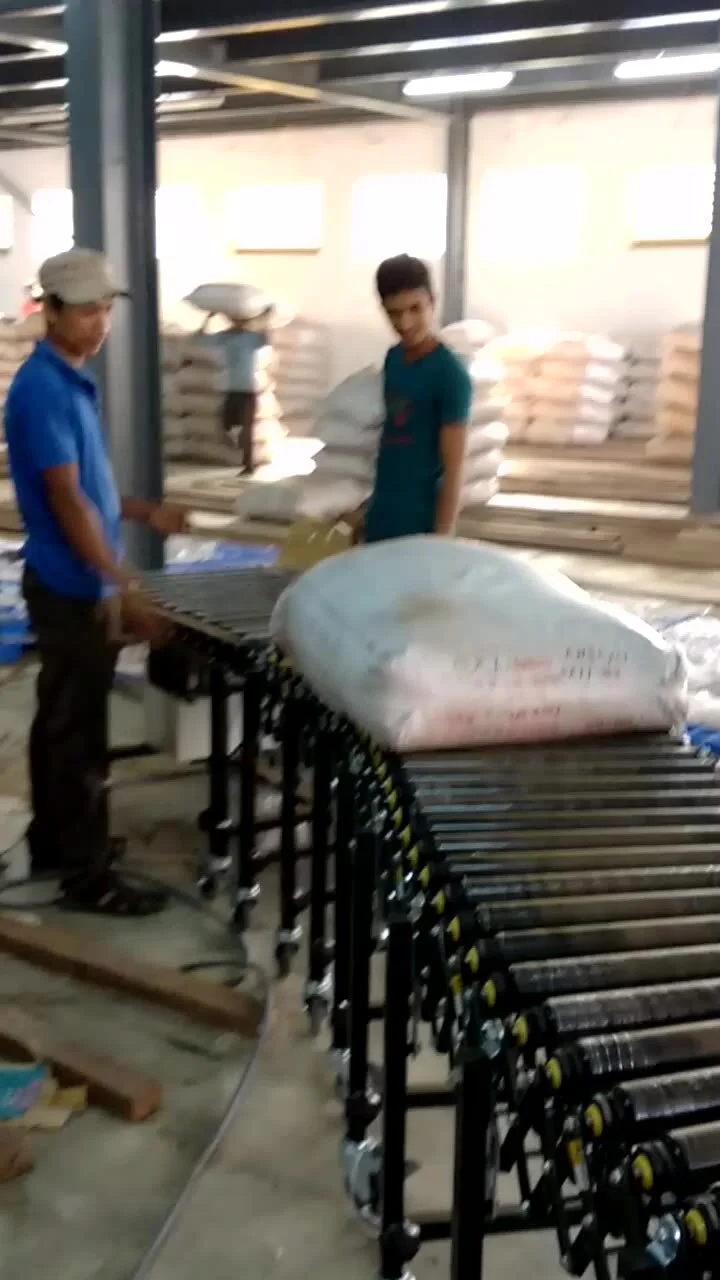

Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.

2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.

2016 Project In Kenya Cartons loading unloading container/trucks/trailers

Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags

2016 Project In Kenya Bags stacking mobile belt conveyor

Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
