Portable Small Belt Conveyor for Loading and Unloading
TLC-S600

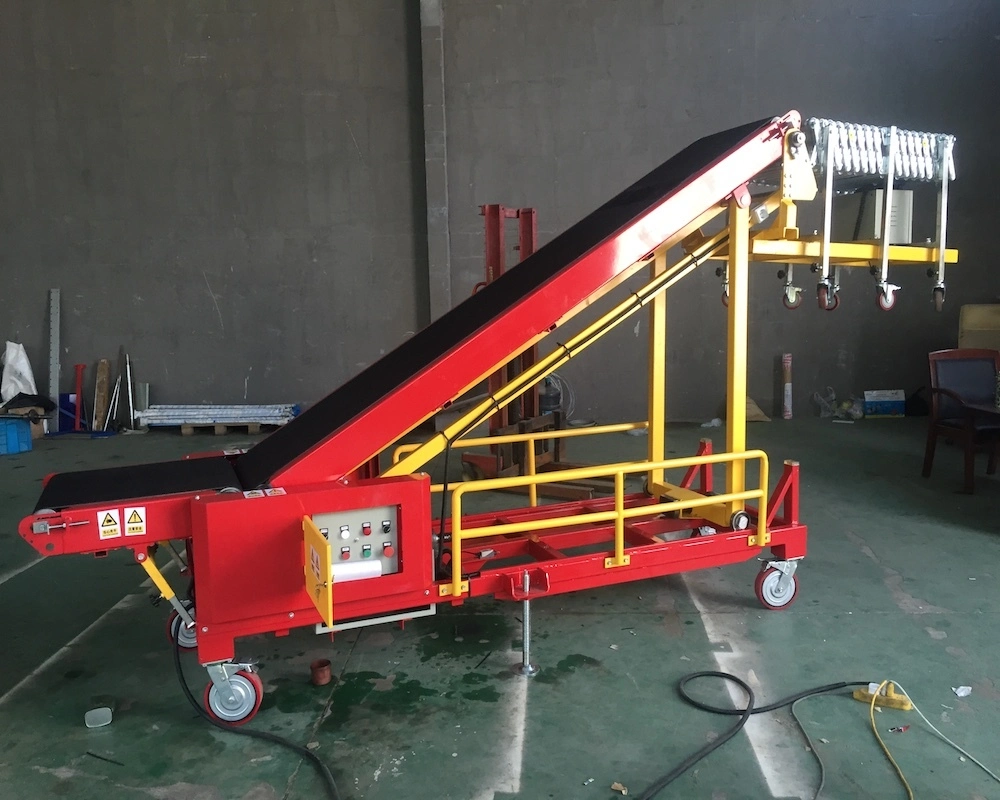

MINI PORTABLE VEHICLE LOADING CONVEYOR
TLC-S600 is a smaller version of model TLC-P600.This conveyor is designed for our domestic biggest express company named SF Express for loading and unloading small trucks/vans/vehicles. Its advantages is extremely flexible, easy to set up and use.
PRODUCT PARAMETERS
| Technical Parameters | |||
Part 1: Inclined Belt Conveyor | Part 2: Flexible Powered Roller Conveyor | ||
Belt Width | 600mm | Rollers | Φ50*T1.5*L600mm galvanized steel rollers |
Belt Type | T=5mm rough top PVC belt | Belt | High quality V belt |
Adjustable Height | 800-2000mm | Motor | 90W*3pcs, total 630W |
Adjustable Speed | 10-20m/min | Adjustable Speed | 10-18m/min, two way |
Load Capacity | 50kg/m | Load Capacity | 50kg/m |
Belt Driven Motor | 1.5kw | Flexible Frame | 272*5mm X shape side links, galvanized |
Conveyor Lift Motor | 1.5kw | Adjustable Legs | 32*32*2mm steel tubes, powder coated in BLACK |
Frequency Inverter | Delta | Castors | 5'' high quality swivel PU casters with brakes |
Main Electric Elements | Schneider | Voltage | 220V, single phase,50Hz/380V, three phase,50Hz |
Caster | Φ125mm heavy duty lockable swivel PU casters | Control Panel | Forward/Stop/Reverse, Emergency Stop |
Frame Construction | Carbon steel, powder coated RED | - | - |
Power Supply | 220V,single phase,50Hz/380V,three phase,50Hz | - | - |
SHOW DETAILS
Application 1
Application: Loading unloading all kinds of parcels from vans in SF Express.
