Low resistance ergonomically unloading conveyor rail offloading conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 10(Sets):30(days),11 - 20(Sets):40(days),>20(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Vertical Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817511;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'TLC-W800', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 3 Sets),Customized packaging (Min. Order: 3 Sets),Graphic customization (Min. Order: 3 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V
Power:2.2 KW
Dimension(L*W*H):L6800*W800*H2500 mm
Certification:CE
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:800mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):700 kg
Belt Width:800mm
Belt Material:5mm rough top black PVC belt
Adjustable Height:700-2500mm
Adjustable Speed:10-20m/min
Motor Power:0.75kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:250mm diameter nylon reinforced wheels
Packing Size:L6800*W800*H2500 mm
Others:With head anti-collision bar and LED Lights
Video Description
Product Overview

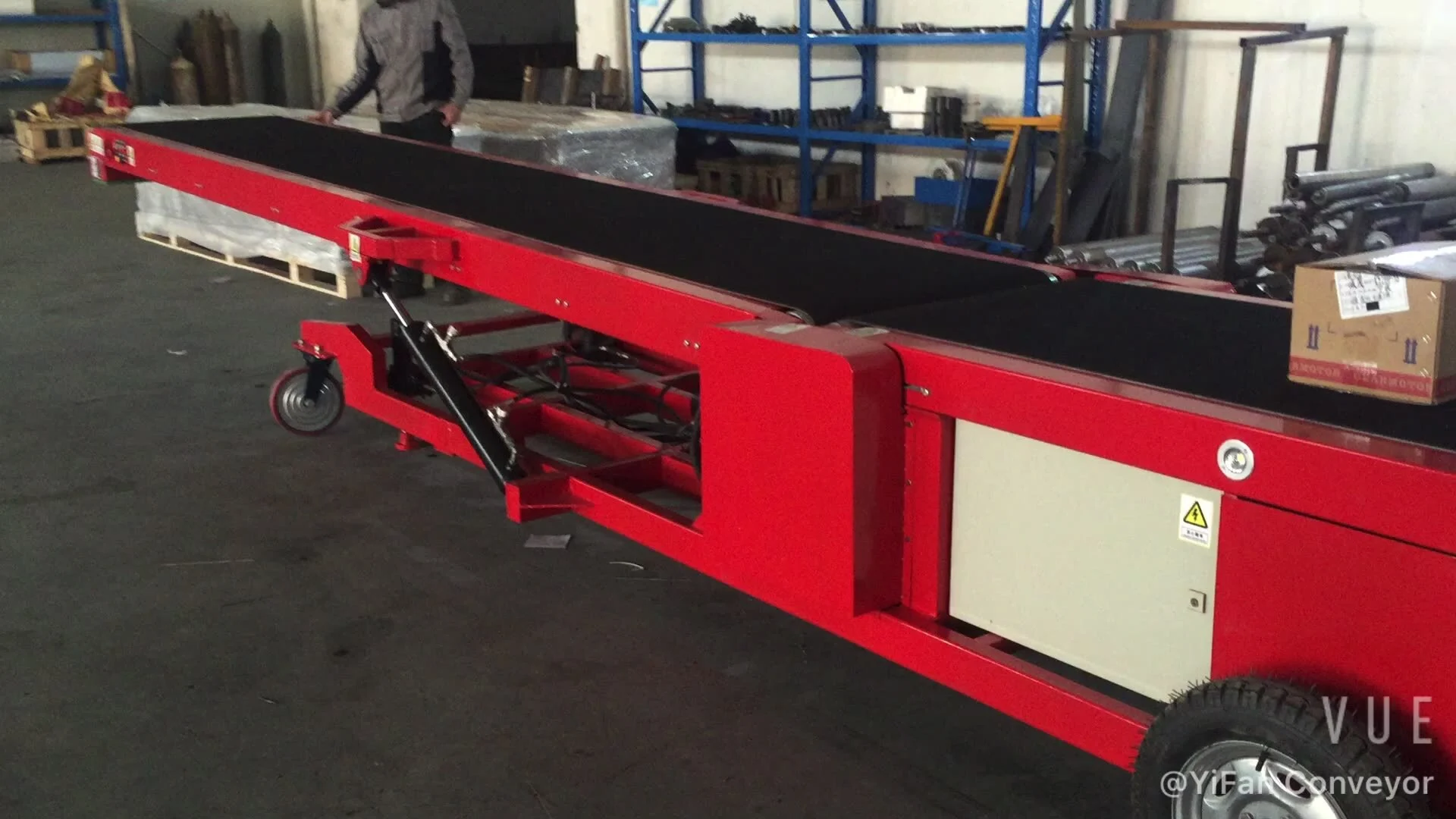

AUTO WALKING TRUCK LOADING CONVEYOR （TLC-W800）
YiFan loading conveyor manufacturer produces a number of different product series, including trailers/vans/trucks/containers unloading conveyor.Closely following the market trend, YiFan uses advanced production equipment and manufacturing technology to produce the truck loading and unloading conveyor.
YiFan's TLC-W800 truck loading conveyor is an AUTO-WALKING loading conveyor. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.
Technical Parameters
Belt:5mm thick rough top black PVC belt
Belt Driven Motor: 2.2kw, SEW
Auto Walk Motor: 0.75kw, SEW
Hydraulic Power Unit: 1.5kw
Frequency Inverter: Delta
Belt Running Speed: 10-20m/min
Walking Speed: 12m/min
Load Capacity: 50kg/m
Frame Construction: carbon steel, paint
Wheels: 250mm dia Nylon reinforced wheels
With head anti-collision bar and LED Lights
Details Image
With Load,Unload,Up,Down,Stop,Emergency Stop,Light ON/OFF
The main electric elements is installed in the control box
Load,Unload,Up,Down,Emergency Stop
The conveyor can auto move around in the warehouse
Successful Project
Customer Inspection
Company Profile
With the help of this product, people can make production at a mass level and the cost of production also is less when compared to manual works. The utilization of high-quality raw materials ensures its chemical resistance.
This product will remove the physical need of man, and created a society that has never been known to man. The utilization of high-quality raw materials ensures its chemical resistance.
