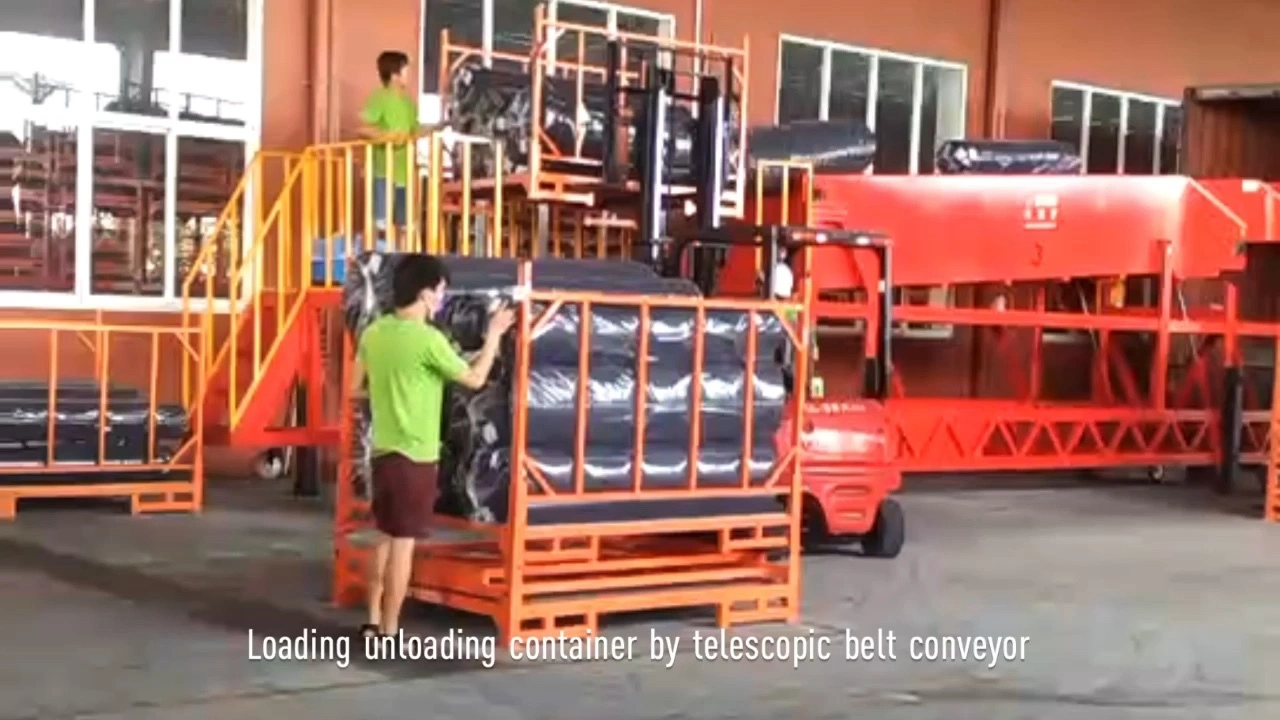

Loading Fabric rolls into 40ft containers by high chassis telescopic belt conveyor with front operator platform

这里可以自定义设置
Loading Fabric rolls into 40ft containers by high chassis telescopic belt conveyor with front operator platform
B站不支持收货地址
B站不支持库存规格
Type
SLAT CONVEYOR,Other
Load Capacity
50KG
Model Number
ITBC-4S-6/12-800
shipping
Sea freight
Customization
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
Power:Other
Dimension(L*W*H):L6000/12000*W600*H950 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):5500 kg
Belt Material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Packing Details:L6100*W1400*H1000mm,4000KGS
Motor Power:0.75kw,2.2kw
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
Video Description
Product Overview

( INCLINED TYPE ) TELESCOPIC BELT CONVEYOR

Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Technical Parameters
Fixed Length
7m
Extension Length
14m
Total Length
21m
Tail Boom
4m
Belt Spec
800mm width Siegling PVK belt, alligator clip jointing
Belt Top Heigh
2.3m, can lift up 1.65m
Belt Direction
Forward & reverse
Max. Load Capacity
60kg/m
Belt Driven Motor
3.0 kw. SEW
Telescopic Motor
0.75kw. SEW
Tail Boom Motor
1.5kw. SEW
Hydraulic Power Pack
2.2kw
Machine Total Power
7.45kw
Electric Control System
Siemens PLC intelligent controller
Main Electric Components
Schneider, including abnormal fault automatic detection alarm device
Telescopic Chain
Donghua, Hangzhou
Cable Carrier
Kruis
Power Cord Length
10m
Standard Color
BLUE, RAL5015
Voltage
380V, three phase, 50Hz
Model List
Drawing
Details Image
Company Profile
This product is widely used and popular in the specific customer segment. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying. It proves to be one of the most reliable and promising products in the market.
