Inclined truck loading and unloading conveyor for vehicle unloading

这里可以自定义设置

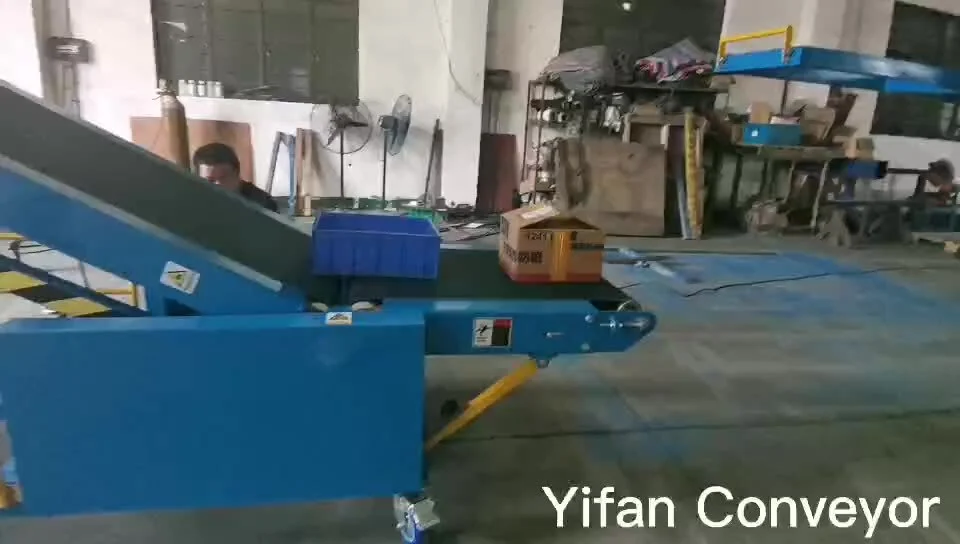

Inclined truck loading and unloading conveyor for vehicle unloading
B站不支持收货地址
B站不支持库存规格
Type
Other
Load Capacity
50KG
Model Number
TLC-P600
shipping
Sea freight
Customization
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other, Hotels, Restaurant
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Inclining belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V 1 phase/ 380V 3 phase
Power:1.5kw,2.2kw
Dimension(L*W*H):L4700*W600*H700/2500 mm
Warranty:1 Year
Width or Diameter:belt 600 mm/800 mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox
Weight (KG):4000 kg
Belt Material:PVC
Front Tongue:4.2m powered roller conveyor
Loading Height:2500mm
Adjustable Speed:10-20m/min
Discharge Height:700mm
Motor Power:1.5kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:6" heavy duty swivel lockable PU casters
Packing Size:L4900*W1240*H1625mm,850KGS
After Warranty Service:Video technical support, Online support
Local Service Location:None
After-sales Service Provided:Online support
Product Overview

The Truck Loading Conveyor is consist of two parts:
Front Flexible Tongue and Inclined Belt Conveyor.
It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.
Size(mm):L4800/1840*W600*H700/1000
Variable Speed(m/min):10-18
Load Capacity(kg/m):50
Power(kw):0.36
*Belt:high quality O ring PU belt
*Roller:Dia 50mm galvanized steel roller,roller center Max 130mm
*Caster:5'' swivel lockable casters
*Frame:3.5mm thickness galvanized curved join plates with better load
*Leg:32×32 outer tube with 25×25 inner tube,spray
paint black
*Control Box:Forward/Stop/Reverse,Emergency Stop

PART 2.Inclined Belt Conveyor

Size(mm):L4700*W600*H700/2500
Variable Speed(m/min):10-20
Load Capacity(kg/m):50
Power(kw):3.7
*Standard Belt: 600*3mm anti-skiding stripy belt Forbo Seigling
*Option Belt: 600*5mm rough top green PVC belt
*Caster:6" heavy duty swivel lockable PU casters
*Control Panel: Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
*Voltage:220V,1-Phase,50Hz or 380V,3-Phase,50Hz
*Part 1+2 Packing Details:
L4900*W1240*H1625mm,850KGS
Technical Parameters
Model
Belt Width(mm)
L1(mm)
L2(mm)
L3(mm)
L(mm)
H1(mm)
H1(mm)
TLC-P600
600
900
3700
1800
4200
700
700-2500
Details Image
With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
Control panel covered by a lockable door
PVC anti-skiding belt

With two side guards

Mobile on lockable swivel casters


Belt tighten system

Flexible conveyor bracket and main conveyor are joint by screws
Screw lift system
Lock the foot to be more stable when rise up
Successful Project



Installation Instructions
SIMILAR PRODUCTS
Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service?
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Ningbo YiFan Conveyor Equipment Co.,Ltd can store conveyor manufacturer in clean and big warehouse to ensure their safety from rain or sunlight. With stainless steel bearings, the product is suitable for wet environments. Ningbo YiFan Conveyor Equipment Co.,Ltd has established conveyor manufacturer business organizations in many regions, basically forming a strategic layout. With stainless steel bearings, the product is suitable for wet environments.
