Inclined telescopic boom conveyor with tail conveyor
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'SLAT CONVEYOR', 'sku_img': None, 'sku_id': '191284229:430360791;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'ITBC-4S-6/12-800', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
Power:Other
Dimension(L*W*H):L6000/12000*W600*H950 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):5500 kg
Belt Material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Packing Details:L6100*W1400*H1000mm,4000KGS
Motor Power:0.75kw,2.2kw
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
Video Description
Product Overview

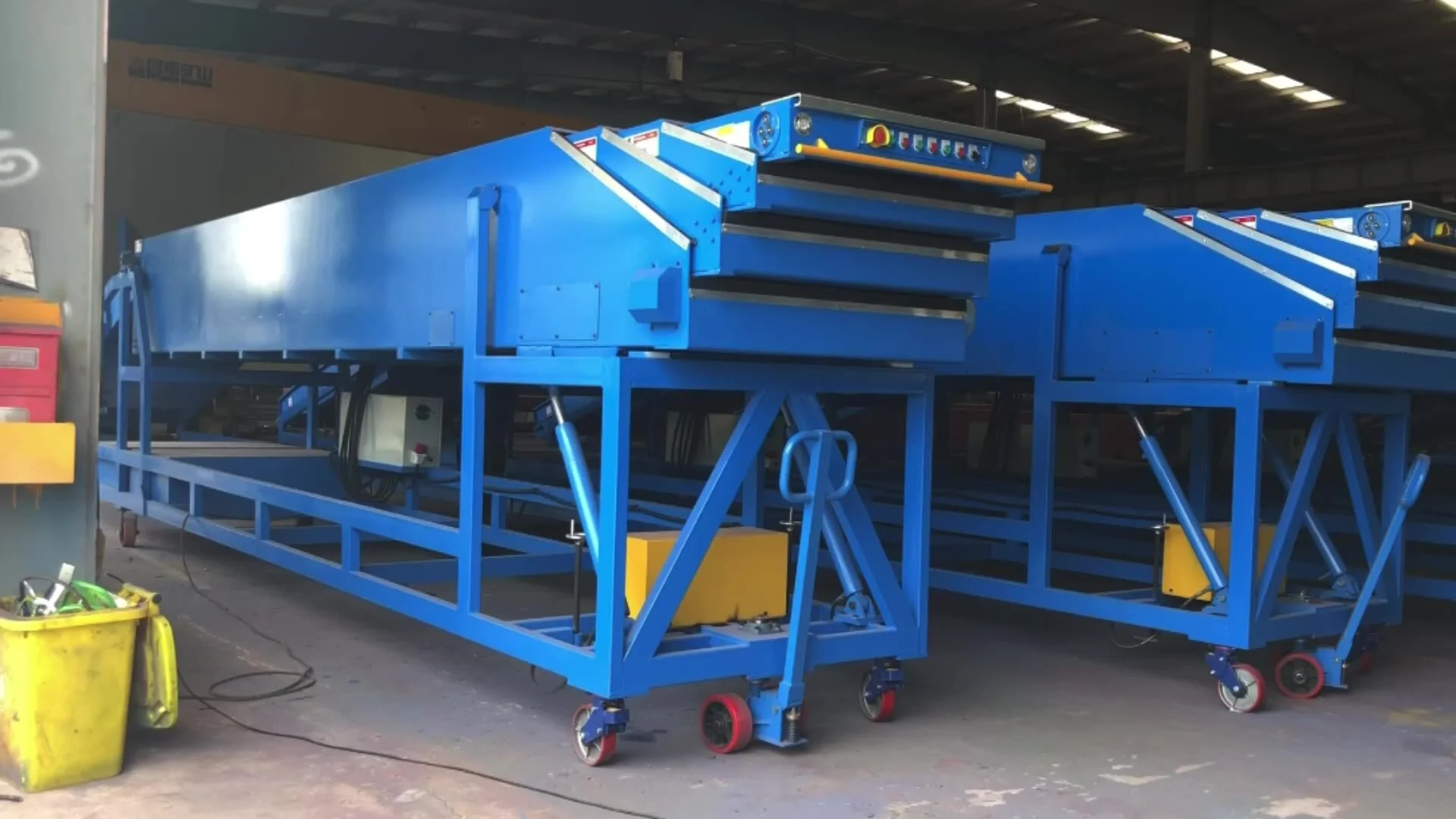

( INCLINED TYPE ) TELESCOPIC BELT CONVEYOR
Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Technical Parameters | ||
Fixed Length | 7m | |
Extension Length | 14m | |
Total Length | 21m | |
Tail Boom | 4m | |
Belt Spec | 800mm width Siegling PVK belt, alligator clip jointing | |
Belt Top Heigh | 2.3m, can lift up 1.65m | |
Belt Direction | Forward & reverse | |
Max. Load Capacity | 60kg/m | |
Belt Driven Motor | 3.0 kw. SEW | |
Telescopic Motor | 0.75kw. SEW | |
Tail Boom Motor | 1.5kw. SEW | |
Hydraulic Power Pack | 2.2kw | |
Machine Total Power | 7.45kw | |
Electric Control System | Siemens PLC intelligent controller | |
Main Electric Components | Schneider, including abnormal fault automatic detection alarm device | |
Telescopic Chain | Donghua, Hangzhou | |
Cable Carrier | Kruis | |
Power Cord Length | 10m | |
Standard Color | BLUE, RAL5015 | |
Voltage | 380V, three phase, 50Hz | |
Model List
Drawing
Details Image
Company Profile
When I used this product, it doesn't produce buzzing or flickering noises and it gives me the maximum eye comfort. - One of the customers said. It contributes to the highly efficient loading/unloading logistics sorting and conveying.
One of our customers says: 'With the help of polishing and water lubrication, my visitors barely feel the friction or any discomfort between the skin and the surface of this product.' It contributes to the highly efficient loading/unloading logistics sorting and conveying.
