In stock food loading conveyor for truck sack loading conveyor

这里可以自定义设置

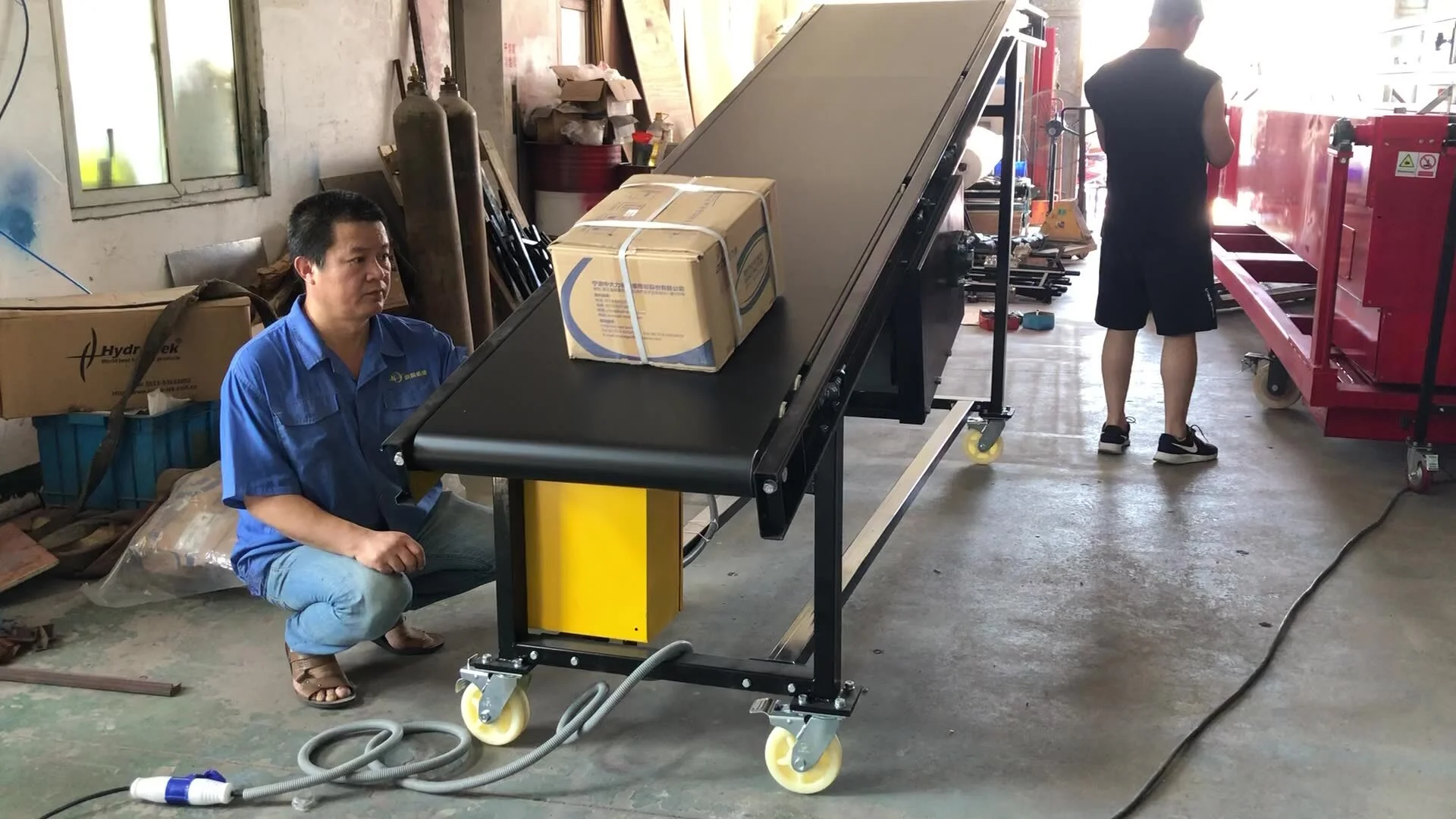

In stock food loading conveyor for truck sack loading conveyor
B站不支持收货地址
B站不支持库存规格
Type
Vertical Conveyor,Other
Load Capacity
50KG
Model Number
TLC-E600
Lead Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
shipping
Sea freight
Customization
Customized logo (Min. Order: 3 Sets),Customized packaging (Min. Order: 3 Sets),Graphic customization (Min. Order: 3 Sets)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Heat Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V, 220V/380V
Power:2.2 KW
Dimension(L*W*H):L4000*W600*H800/1500 mm
Certification:CE
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Motor, Gear, Gearbox, Frequency Inverter
Weight (KG):350 kg
Belt Width:600mm or 800mm
Belt Material:smooth PVC belt
Adjustable Speed:10-20m/min
Conveyor Height:800-1500mm
Motor Power:0.75KW
Control Panel:Belt Forward, Stop, Reverse,Emergency Stop
Caster:6" swivel lockable PU casters
Packing Size:L4000*W800*H800mm
Video Description
Product Overview

The Truck Loading Conveyor largely facilitates goods handling work and increase work efficiency.
Reference Drawing
Details Images




Black PVC belt
600mm width
3mm thickness
PVC material




Customized Length
Horizontal length can be customized.




Dismantled Frame
The frame is fixed by bolt, which can be easily dismantled for packing.





Control Box
Power Indicator,Belt Forward,Stop,Reverse
Emergency Stop





Mobile on wheels
The conveyor is easy to move around on 6 inches castors
Successful Project

2012 Project In Mombasa,Kenya

Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.

2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.

2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.

2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.

2016 Project In Kenya Cartons loading unloading container/trucks/trailers

Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags

2016 Project In Kenya Bags stacking mobile belt conveyor

Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
Company Profile
Ningbo YiFan Conveyor Equipment Co.,Ltd is familiar with the sales network in conveyor manufacturer area. YiFan Conveyor has a wide reputation about its considerate service.
