Hot sell extendable belt conveyor used for truck container loading and unloading1
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-2;'}]
Model:
[{'sku_name': 'Telescopic Conveyor', 'sku_img': None, 'sku_id': '191284229:-3;'}]
Load Capacity:
[{'sku_name': 'MTBC-3S-6/8-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Home Use, Other, Retail
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V
Power:1.5 KW
Dimension(L*W*H):L6000/14500*W600*H990/1890 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Bearing, Gear, Gearbox, Motor, Pump
Weight (KG):3500 kg
Belt Material:600mm,PVK
Extendable Length:6m-14.5m
Adjustable Height:990-1990mm
Table Width:800mm
Belt Speed:10-30m/min
Motor Power:0.75kw,2.2kw
Caster:6" heavy duty swivel lockable PU casters
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Packing Details:L6100*W1400*H1000mm,3800KGS
After Warranty Service:Online support
Video Description
Product Overview

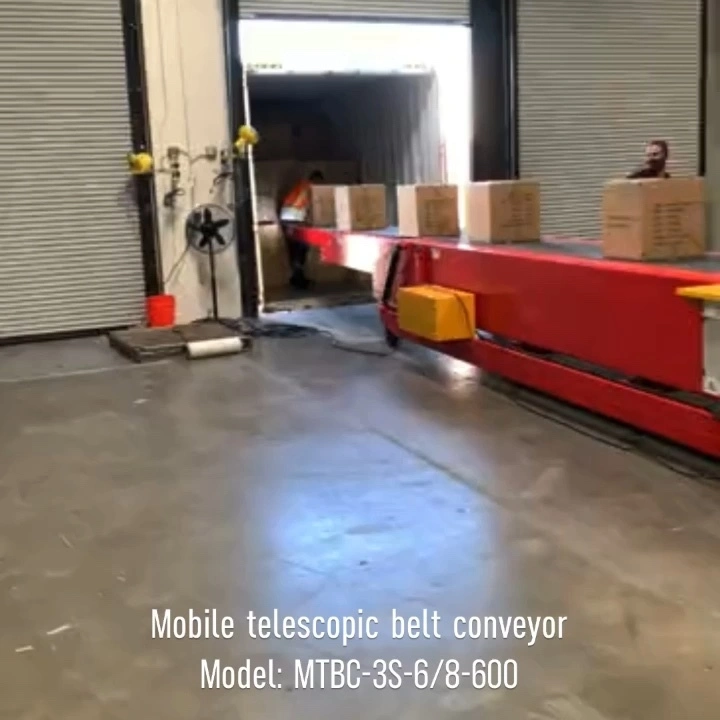

Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports,docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality. Features
1. In structure, the telescopic conveyor makes the common belt conveyor extendable and retractable freely. The length can be controlled at will by the buttons; and also height adjustment is available if needed.
2. The conveyor can combine other conveying equipment such as lifting conveyors, inflexible roller/belt conveyors and assembly line, in which way an automatic conveying system is complete for production, assembly, storage, loading and unloading of goods.
3. The conveyor can transmit items in both forward and reverse way;and some options in details: either constant or variable in conveying/telescoping speed, either fixed or movable type by adding universal wheels, and belt types of chemical fiber/PVC belt, oil-proof or cutting-proof
Drawing
Model List
Sections | Model | A(m) | B(m） | C(m) | H(mm） | Belt Width(mm) |
3 | FTBC-3S-4/5.4 | 4 | 5.4 | 9.4 | 800 | 600/800 |
FTBC-3S-4.5/6 | 4.5 | 6 | 10.5 | 800 | 600/800 | |
FTBC-3S-5/7 | 5 | 7 | 12 | 800 | 600/800 | |
FTBC-3S-5.4/7.3 | 5.4 | 7.3 | 10.7 | 800 | 600/800 | |
FTBC-3S-6/8.5 | 6 | 8.5 | 14.5 | 800 | 600/800 | |
FTBC-3S-6.5/9.4 | 6.5 | 9.4 | 15.9 | 800 | 600/800 | |
FTBC-3S-7/9.6 | 7 | 9.6 | 16.6 | 800 | 600/800 | |
4 | FTBC-4S-4/7 | 4 | 7 | 11 | 950 | 600/800 |
FTBC-4S-4.5/8.5 | 4.5 | 8.5 | 13 | 950 | 600/800 | |
FTBC-4S-5/9.5 | 5 | 9.5 | 14.5 | 950 | 600/800 | |
FTBC-4S-5.4/10.3 | 5.4 | 10.3 | 15.7 | 950 | 600/800 | |
FTBC-4S-6/12 | 6 | 12 | 18 | 950 | 600/800 | |
FTBC-4S-6.5/12.8 | 6.5 | 12.8 | 19.3 | 950 | 600/800 | |
FTBC-4S-7/14 | 7 | 14 | 21 | 950 | 600/800 |
Sections | Model | A(m) | B(m) | C(m) | H(m) | Belt Width(mm) |
3 | MTBC-3S-4/5.4 | 4 | 5.4 | 9.4 | 1100 | 600/800 |
MTBC-3S-5/7 | 5 | 7 | 12 | 1100 | 600/800 | |
MTBC-3S-6/8.5 | 6 | 8.5 | 14.5 | 1100 | 600/800 | |
4 | MTBC-4S-4/7 | 4 | 7 | 11 | 1200 | 600/800 |
MTBC-4S-5/9.5 | 5 | 9.5 | 14.5 | 1200 | 600/800 | |
MTBC-4S-6/12 | 6 | 12 | 18 | 1200 | 600/800 |
Sections | Model | A(m) | B(m) | L(mm) | H(mm) | Belt Width(mm) |
3 | ITBC-3S-4/5 | 4 | 5 | 3000-4500 | 750/1500 | 600/800 |
ITBC-3S-6/8 | 6 | 8 | 3000-4500 | 750/1500 | 600/800 | |
4 | ITBC-4S-6/12 | 6 | 12 | 3000-4500 | 750/1500 | 600/800 |
ITBC-4S-7/14 | 7 | 14 | 3000-4500 | 750/1500 | 600/800 |
Company Profile
FAQ
Please feel free to contact us at sales@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our
clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many
countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi
Arabia, Singapore, France, Canada, etc.
