High standard efficiency Incline Heavy-duty Conveyor for truck loading and unloading-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other

After Warranty Service:Video technical support, Online support, Spare parts

Local Service Location:None

Showroom Location:None

Condition:New

Material:Carbon Steel

Material Feature:Fire Resistant

Structure:Inclining belt Conveyor

Place of Origin:China

Brand Name:YiFan

Power:1.5kw,2.2kw

Dimension(L*W*H):L4045*W600*H850/2320 mm

Certification:ISO,CE

Warranty:1 Year

After-sales Service Provided:Free spare parts

Width or Diameter:600mm belt

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter

Weight (KG):1000 kg

Belt Material:600mm anti-skiding green PVC belt

Front Tongue:7.2m powered roller

Caster:8" heavy duty swivel lockable PU casters

Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop

Motor Power:1.5kw,2.2kw

Table Width:800mm

Adjustable Speed:10-20m/min

Loading Height:2350mm

Discharge Height:850mm

Video Description

Product Overview

CBLC-600 Truck Loading Conveyor

The Truck Loading Conveyor is consist of two parts:

Front Flexible Tongue and Inclined Belt Conveyor.

It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.

PART 1.Flexible Powered Roller Conveyor-O belt

Size(mm):L7200/2760*W600*H600/800

Variable Speed(m/min):10-18

Load Capacity(kg/m):50

Power(kw):0.63

*Belt:high quality O ring PU belt

*Roller:Dia 50mm galvanized steel roller,roller center Max 130mm

*Caster:5'' swivel lockable casters

*Frame:3.5mm thickness galvanized curved join plates with better load

*Leg:35×35 outer tube with 30×30 inner tube,spray paint black

*Control Box:Forward/Stop/Reverse,Emergency Stop

PART 2.Inclined Belt Conveyor

Size(mm):L4100*W600*H750/2300

Variable Speed(m/min):10-20
Load Capacity(kg/m):50
Power(kw):3.0

*Standard Belt: 600*3mm anti-skiding stripy belt Forbo Seigling

*Option Belt: 600*5mm rough top green PVC belt

*Caster:8" heavy duty swivel lockable PU casters

*Control Panel: Belt Forward, Stop, Reverse,Up, Down, Emergency Stop

*Voltage:220V,1-Phase,50Hz or 380V,3-Phase,50Hz

*Part 1+2 Packing Details: L4440*W1270*H1700mm,1200KGS

Technical Parameters

Model	Belt Width（mm）	L1（mm）	L2（mm）	L3（mm）	L（mm）	H1（mm）	H1（mm）
CBLC-600	600	1100	3000	3100	7200	750-1050	1050-2300

Details Image

Control Panel: Emergency Stop, Revers, Up, Stop, Down, Forward

Front tongue conveyor combined with inclined belt conveyor which can be removed if not needed

Slave section can be adjusted manually.

200 diameter universal swivel PU castors with brake

With hydraulic power unit to adjust height.

Strong enough frame

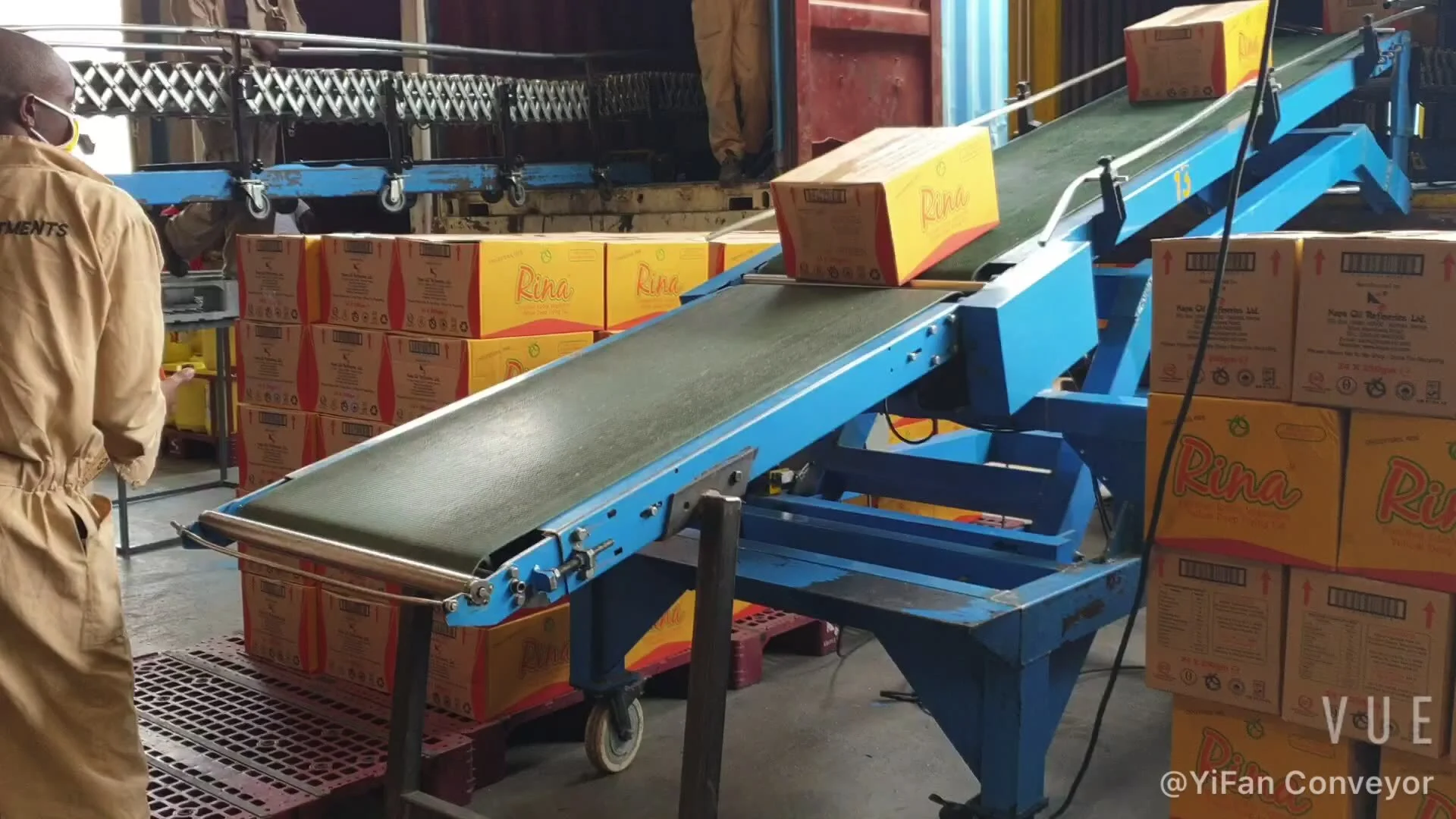

Successful Project

Installation Instructions

1.First remove the roller conveyor and the front tongue frame.

2.Install screws at the joint of the front tongue frame.

3.Align the connecting port of the front tongue frame with the conveyor.

4.The front tongue frame is connected with the conveyor.

5.Place the closed Roller Conveyor on the installed bracket.

6.The hook on the roller conveyor is connected to the conveyor.

SIMILAR PRODUCTS

TLC-G600

TLC-S600

TLC-E600

TLC-F600

TLC-W600

TLC-P600

Company Profile

FAQ

Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service？
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

The product is a worthwhile investment for manufacturers. It does not only improve productivity but also greatly cut unnecessary labor costs. By using the product, the time for carrying goods back and forth can be saved a lot. With its advanced operation system, the product reduces the need for a large number workforce and finally helps reduce labor costs. By using the product, the time for carrying goods back and forth can be saved a lot.
