YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
High quality cheap price portable conveyor machine system for cargo
5.0
Start Port:
Sea freight
Payment:
1 - 10(Sets):15(days),>10(Sets):Negotiable(days)
MOQ:
[{'sku_name': '100KG/m', 'sku_img': None, 'sku_id': '100005813:-2;'}]
Model:
[{'sku_name': 'extendable conveyor', 'sku_img': None, 'sku_id': '191284229:-3;'}]
Load Capacity:
[{'sku_name': 'FPR-RV6-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail
After Warranty Service:Online support, Video technical support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:1.5 KW
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Online support
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Gear, Motor
Weight (KG):500 kg
Extendable Length:2750-6000mm
Roller Width:600*50mm galvanized steel roller
Adjustable Height:700-1000mm
Roller Center Gap:Max.140mm
Motor:90W,Zhongda brand
Side Links:5mm thickness galvanized join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Product Overview

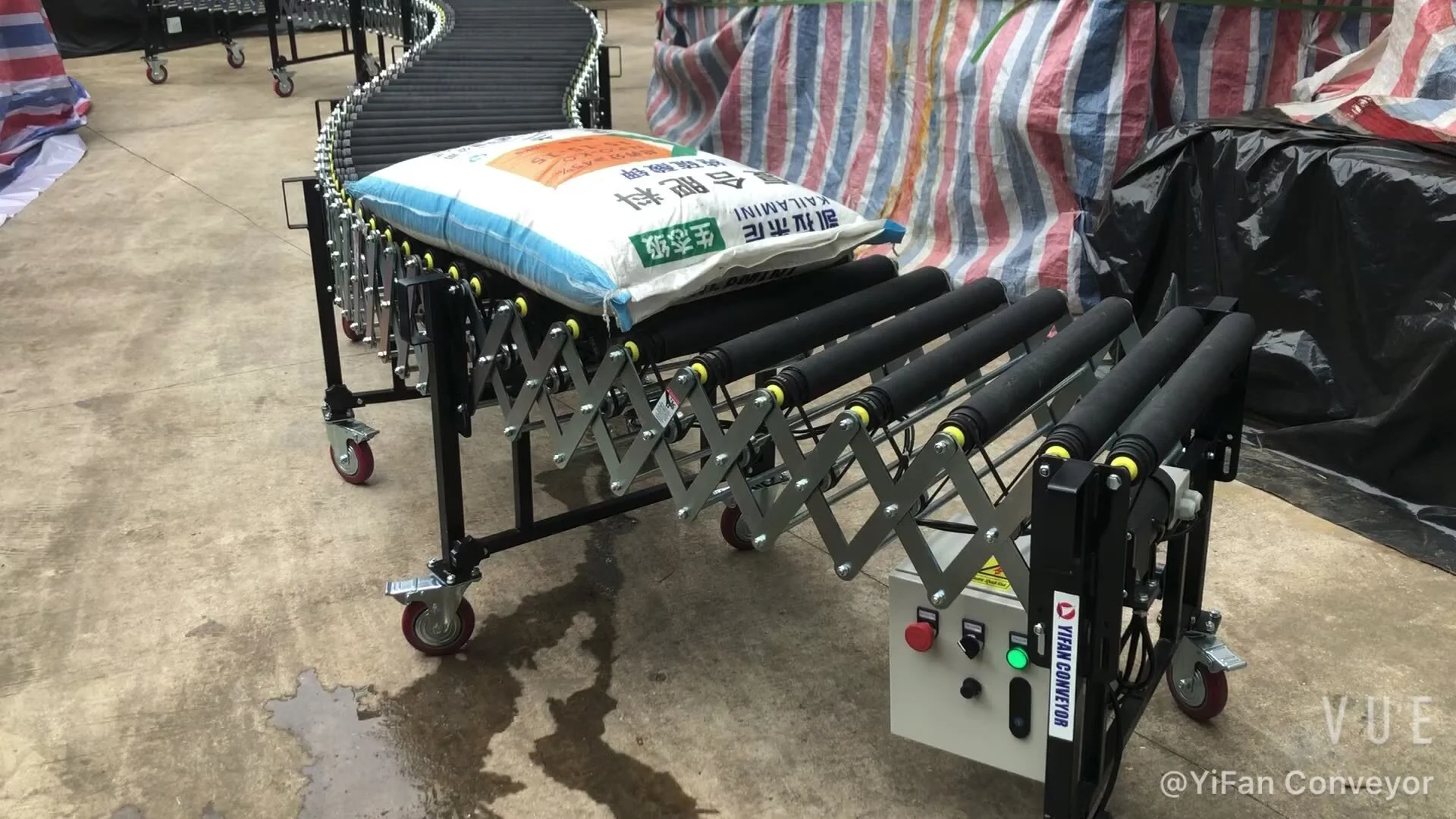

FPR-RV6-600 Powered Rubber Coated Roller Conveyor
Expandable Powered Roller Conveyor, Motorized Flexible Roller Conveyor is an popular automatic roller conveyor with adjustable speed,height & direction.It is well qualified to intensively transport cartons,cases,boxes in the warehouse , workshop,factory,harbor,dock,etc.It can also be applied as packing line,temporary conveying line and goods distribution
line.
line.
Technical Parameters
Roller Width | 600mm or 800mm |
Adjustable Height | 700-1000mm |
Extendable Length | 2750-6000mm |
Load Capacity | 100kg/m |
Control Box | Forward/Stop/Reverse,Emergency Stop |
Voltage | 220V,1-Phase or 380V, 3-Phase |
Motor | 90W, Zhongda brand |
Side Links | 5mm thickness galvanized join plates |
Caster | 5" swivel lockable casters |
Details Image
Reinforced double H shape legs with nice load capacity
With handle on the legs to help move the conveyor around
Adjustable Height: 700-1000mm or 800-1200mm
Each conveyor with one independent control box, Fwd/Stop/Rev
5mm thick heavy duty side links with good load capacity
Each conveyor leg with a min motor
Adopt rubber coated rollers to avoid items getting slippery
Rollers driven by high quality V belt
Mobile on 5" swivel casters with brakes
Successful Project
Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service？
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service？
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
The product is an essential component in many industries, which is suitable for machinery that is subject to dust and leakage. Equipped with a PLC control, it ensures high efficiency.
People will find it is really convenient and portable for quick installation and dismantling, as well as easier to carry away. Equipped with a PLC control, it ensures high efficiency.
