Part 1
2m extendable powered roller conveyor
700-1000mm adjustable height
10-18m/min adjustable speed
independent control box
two way operation
Part 2
Inclined Belt Conveyor
800-2000mm adjustable height
loading & unloading
10-20m/min adjustable speed
50kg/m load capacity
YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
High quality belt system loading mini portable vehicle loading conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 20(Sets):30(days),>20(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50kg/m', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'TLC-S600', 'sku_img': None, 'sku_id': '3:-2;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, E-business Warehouse, Distribution Center, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Oil Resistant
Structure:Conveyor System
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V
Power:other
Dimension(L*W*H):Variable
Certification:ISO,CE
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing
Weight (KG):600 kg
Belt Width:600mm
Belt Material:PVC
Conveyor Height:800-1800mm
Adjustable Speed:10-20m/min
Load Capacity:50kg/m
Working Direction:two way
Castors:5"
Video Description
Product Overview

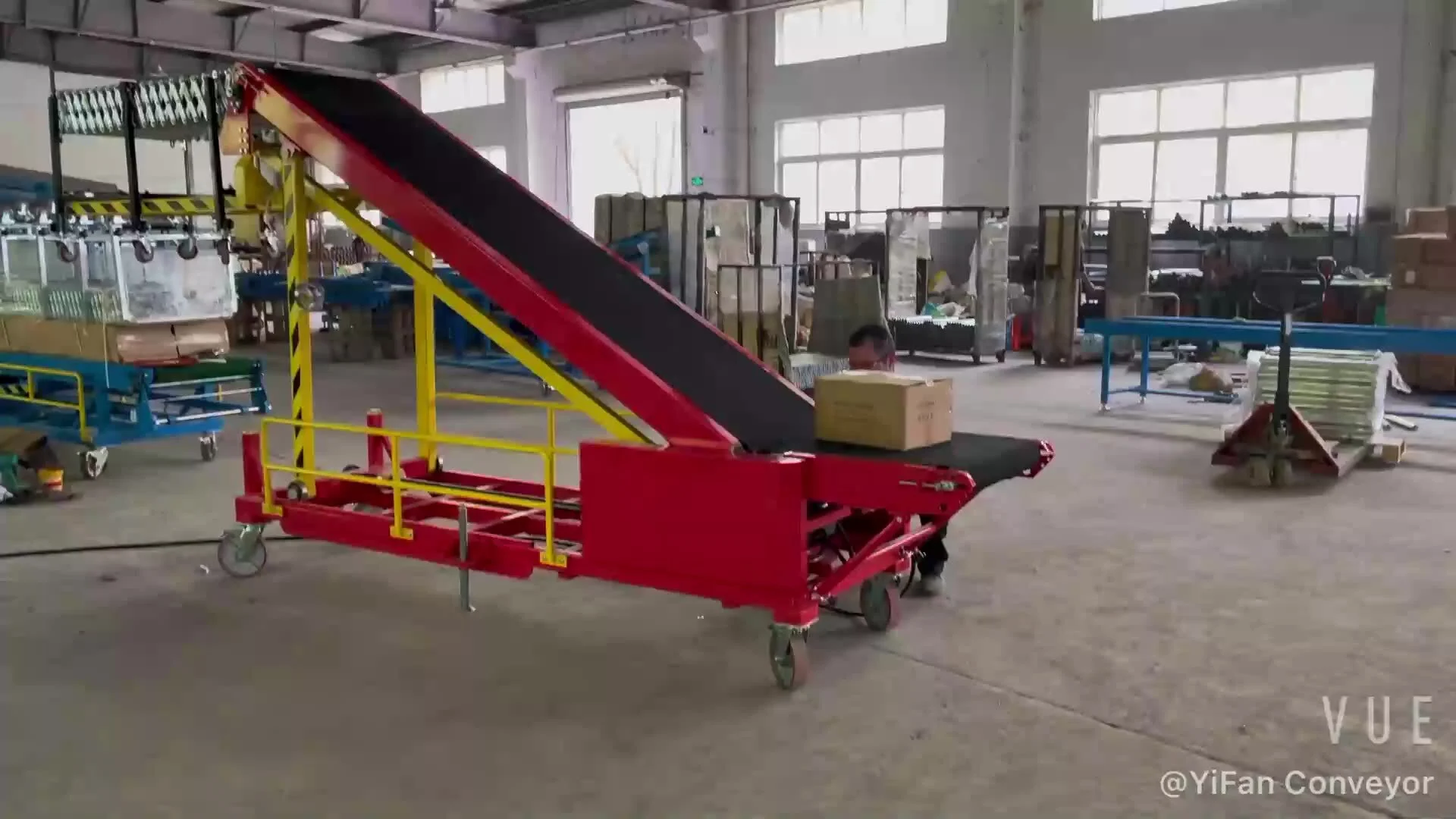

SMALL TRUCK LOADING CONVEYOR (TLC-S600)
Small truck loading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.
Front Elevation
Left elevation
Right Elevation
Model List | ||||||||||||||
Model | Belt Width (mm) | L1(mm) | L2(mm) | L3(mm) | L(mm) | H1(mm) | H2(mm) | |||||||
TLC-S600 | 600 | 700 | 2800 | 1000 | 2000 | 800 | 800-2000 | |||||||
TLC-S800 | 800 | 700 | 2800 | 1000 | 2000 | 800 | 800-2000 | |||||||
Details Images
With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
Control panel covered by a lockable door
Flexible conveyor bracket and main conveyor are joint by screws
Mobile on lockable swivel casters
Slave conveyor with adjustable height
With screw handle to fix the conveyor when lift up
With hole for add oil to the bearings
Front flexible conveyor with independent control box
With two side guide on the main body
Successful Project
Company Profile
This product adds an elegant touch to people's outfit and immediately draw attention, making people stand out from the crowd and feel special.
The product can be erected on any surface and doesn’t require the preparation of footings needed for permanent structures. It simple structure contributes to its easy use and easy installation.
