Heavy loaded power conveyor heavy duty loading conveyor
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'FTBC-4S-5/10-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V
Power:Other
Warranty:1 Year
Width or Diameter:800mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):3500 kg
Belt Material:PVK
Control Panel:Load/Unload,Up/Down,Stop,Emergency Stop
Motor Power:0.75kw,2.2kw
Belt Width:800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Adjustable Height:862-1950mm
After Warranty Service:Video technical support
Video Description
Product Overview

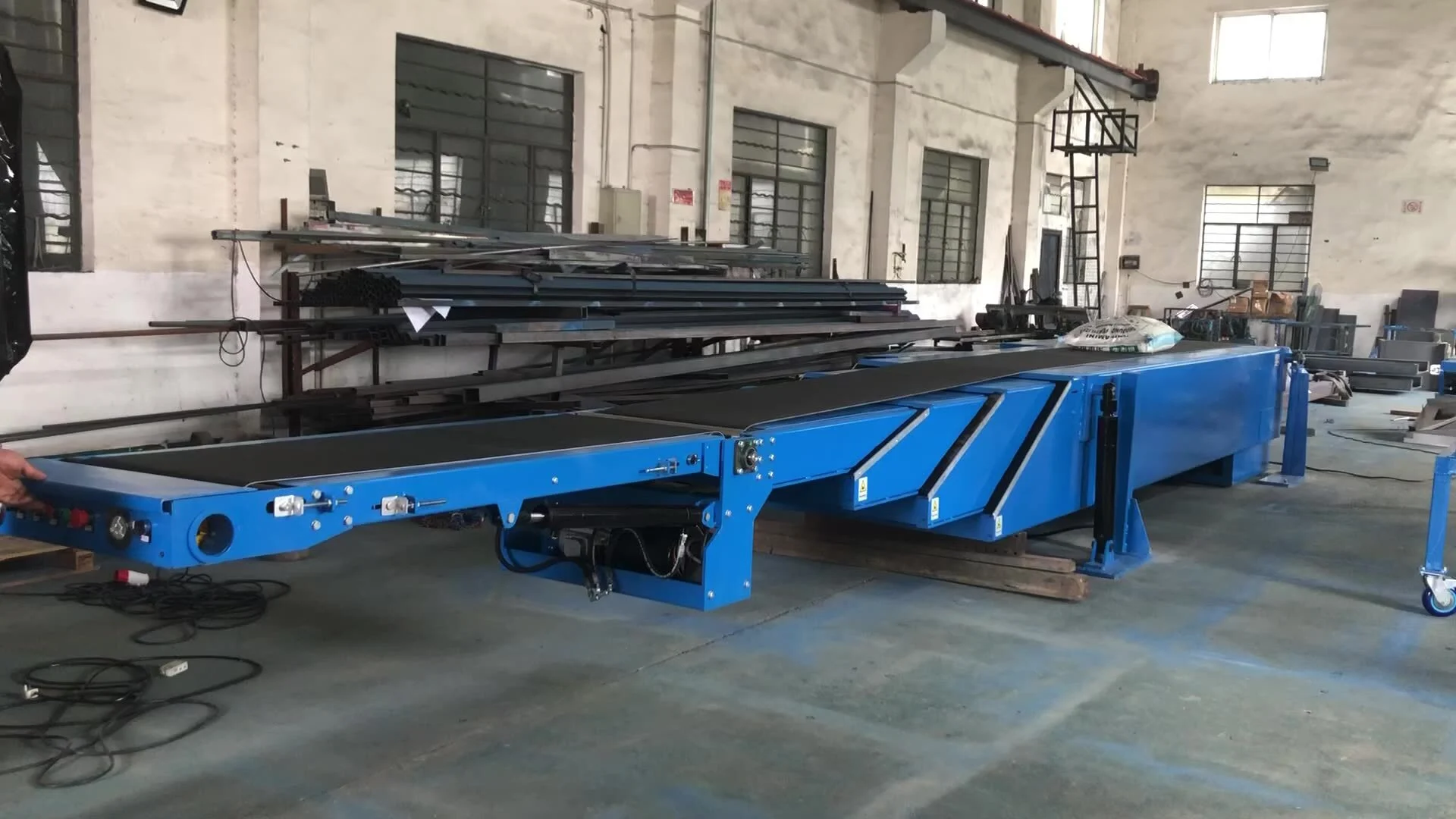

TELESCOPIC BELT CONVEYOR ( MODEL: FTBC-4S-5/10-600 )
Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Features
1. In structure, the telescopic conveyor makes the common belt conveyor extendable and retractable freely. The length can be controlled at will by the buttons; and also height adjustment is available if needed.
2. The conveyor can combine other conveying equipment such as lifting conveyors, inflexible roller/belt conveyors and assembly line, in which way an automatic conveying system is complete for production, assembly, storage, loading and unloading of goods.
3. The conveyor can transmit items in both forward and reverse way; and some options in details: either constant or variable in conveying/telescoping speed, either fixed or movable type by adding universal wheels, and belt types of chemical fiber/PVC belt, oil-proof or cutting-proof
Details Image
Load, Unload, Stop, Up, Down, Emergency Stop
Schneider VFD
With Schneider VFD for adjust speed
Front control panel
Load, Stop, Unload, Light, Emergency Stop
Front drop noose
Front drop noose with hydraulic lift
Transfer roller
With transfer roller on the joint section
TR bearing
High quality TR bearing
Covered back side
Conveyor back covered to be more safe
Hydraulic lift system
Main conveyor with hydraulic lift system
Reference Drawing
Model List
Sections | Model | A(m) | B(m） | C(m) | H(mm） | Belt Width(mm) |
3 | FTBC-3S-4/5.4 | 4 | 5.4 | 9.4 | 800 | 600/800 |
FTBC-3S-4.5/6 | 4.5 | 6 | 10.5 | 800 | 600/800 | |
FTBC-3S-5/7 | 5 | 7 | 12 | 800 | 600/800 | |
FTBC-3S-5.4/7.3 | 5.4 | 7.3 | 10.7 | 800 | 600/800 | |
FTBC-3S-6/8.5 | 6 | 8.5 | 14.5 | 800 | 600/800 | |
FTBC-3S-6.5/9.4 | 6.5 | 9.4 | 15.9 | 800 | 600/800 | |
FTBC-3S-7/9.6 | 7 | 9.6 | 16.6 | 800 | 600/800 | |
4 | FTBC-4S-4/7 | 4 | 7 | 11 | 950 | 600/800 |
FTBC-4S-4.5/8.5 | 4.5 | 8.5 | 13 | 950 | 600/800 | |
FTBC-4S-5/9.5 | 5 | 9.5 | 14.5 | 950 | 600/800 | |
FTBC-4S-5.4/10.3 | 5.4 | 10.3 | 15.7 | 950 | 600/800 | |
FTBC-4S-6/12 | 6 | 12 | 18 | 950 | 600/800 | |
FTBC-4S-6.5/12.8 | 6.5 | 12.8 | 19.3 | 950 | 600/800 | |
FTBC-4S-7/14 | 7 | 14 | 21 | 950 | 600/800 |
Sections | Model | A(m) | B(m) | C(m) | H(m) | Belt Width(mm) |
3 | MTBC-3S-4/5.4 | 4 | 5.4 | 9.4 | 1100 | 600/800 |
MTBC-3S-5/7 | 5 | 7 | 12 | 1100 | 600/800 | |
MTBC-3S-6/8.5 | 6 | 8.5 | 14.5 | 1100 | 600/800 | |
4 | MTBC-4S-4/7 | 4 | 7 | 11 | 1200 | 600/800 |
MTBC-4S-5/9.5 | 5 | 9.5 | 14.5 | 1200 | 600/800 | |
MTBC-4S-6/12 | 6 | 12 | 18 | 1200 | 600/800 |
Sections | Model | A(m) | B(m) | L(mm) | H(mm) | Belt Width(mm) |
3 | ITBC-3S-4/5 | 4 | 5 | 3000-4500 | 750/1500 | 600/800 |
ITBC-3S-6/8 | 6 | 8 | 3000-4500 | 750/1500 | 600/800 | |
4 | ITBC-4S-6/12 | 6 | 12 | 3000-4500 | 750/1500 | 600/800 |
ITBC-4S-7/14 | 7 | 14 | 3000-4500 | 750/1500 | 600/800 |
