Heavy duty angled roller conveyor production line for food
5.0
Start Port:
Sea freight
Payment:
1 - 1(Sets):2300(days),2 - 3(Sets):2200(days),4 - 10(Sets):2000(days),>10(Sets):Negotiable(days)
MOQ:
[{'sku_name': '100KG/m', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'FPR-V6-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:750W
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Frequency Inverter
Weight (KG):50 kg
Roller:600*50mm galvanized steel roller
Roller Center Gap:Max.140mm
Motor:90W,Zhongda brand
Side Links:5mm thickness galvanized curved join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Adjustable Height:700-1000mm
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Extendable Length:2550-6000mm
Video Description
Product Overview

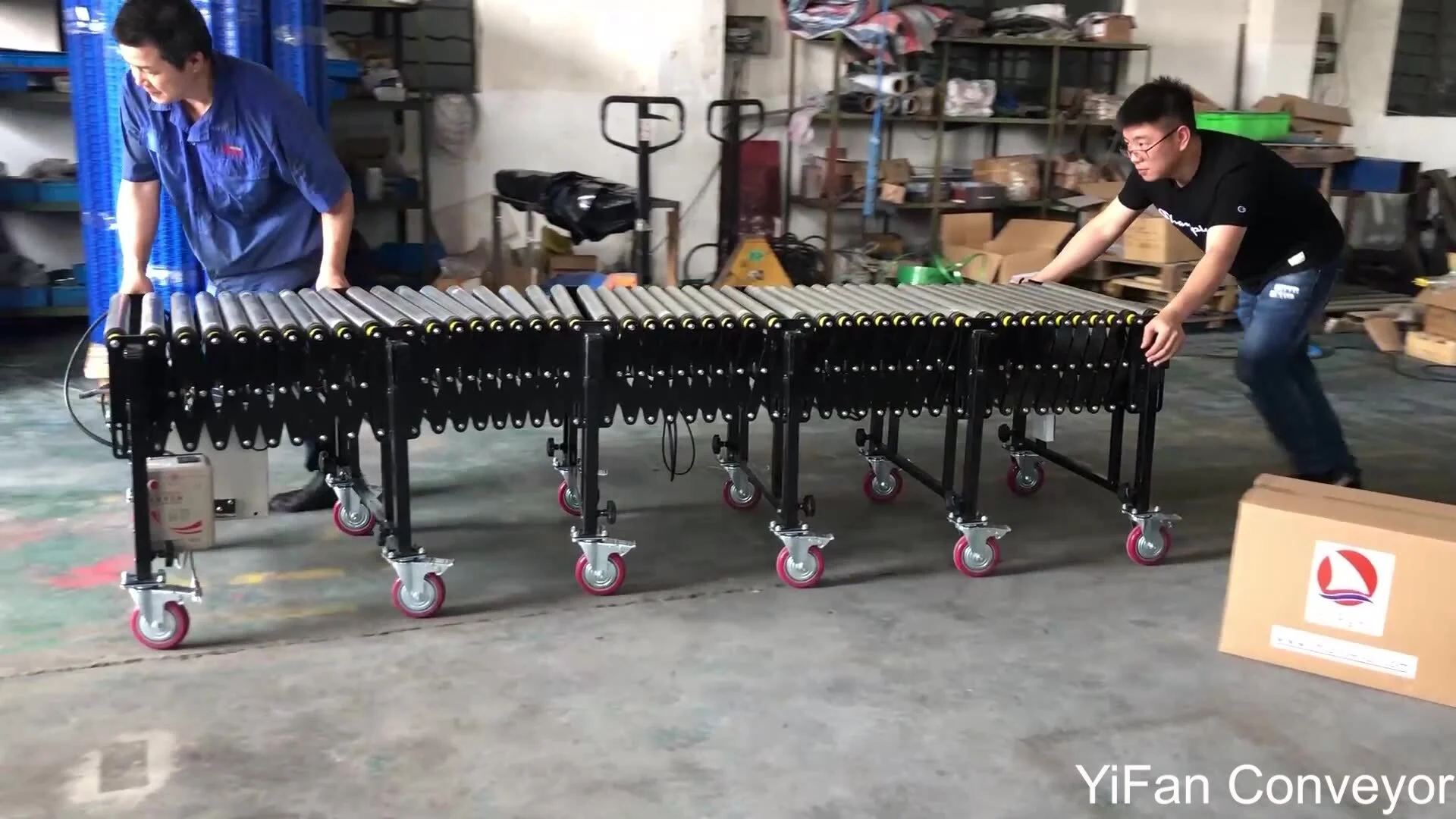

100KG LOAD V-BELT FLEXIBLE POWERED ROLLER CONVEYOR
100KG LOAD V-Belt Flexible Powered Roller Conveyor is absolutely an durable & expandable motorized roller conveyor with Max. load capacity of 100kg/m.It can be operation in two directions with adjustable speed and working height. Having enough power supply by one mini motor per meter, it is well qualified to intensively transport goods especially with flat bottom in the warehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.
Specification
Roller Width: 600mm or 800mm
Adjustable Height: 700-1000mm
Extendable Length: 2550-6000mm
Load Capacity: 100kg/m
Control Box: Forward/Stop/Reverse,Emergency Stop
Voltage: 220V,1-Phase or 380V, 3-Phase
Motor: 90W, Zhongda brand
Caster: 5" swivel lockable casters
Side Links: 5mm thickness galvanized joint plates
Close Condition
180 degree bend
90 degree bend
Model List
Model | Open Length (mm) | Close Length (mm) | Adjustable Height (mm) | Roller Width (mm) | Motor Power (w) | |||||
FPR-V6 | 6000 | 2550 | 700-1000 | 600,800 | 540 | |||||
FPR-V7.2 | 7200 | 3060 | 700-1000 | 600,800 | 630 | |||||
FPR-V8.4 | 8400 | 3570 | 700-1000 | 600,800 | 720 | |||||
FPR-V9.6 | 9600 | 4080 | 700-1000 | 600,800 | 810 | |||||
FPR-V10.8 | 10800 | 4590 | 700-1000 | 600,800 | 900 | |||||
FPR-V12 | 12000 | 5100 | 700-1000 | 600,800 | 990 | |||||
FPR-V13.2 | 13200 | 5610 | 700-1000 | 600-800 | 1080 | |||||
FPR-V14.4 | 14400 | 6120 | 700-1000 | 600-800 | 1170 | |||||
FPR-V15.6 | 15600 | 6630 | 700-1000 | 600-800 | 1260 | |||||
FPR-V16.8 | 16800 | 7140 | 700-1000 | 600-800 | 1350 | |||||
FPR-V18 | 18000 | 7650 | 700-1000 | 600-800 | 1440 | |||||
FPR-V19.2 | 19200 | 8160 | 700-1000 | 600-800 | 1530 | |||||
FPR-V20.4 | 20400 | 8670 | 700-1000 | 600-800 | 1620 | |||||
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug. | ||||||||||
Details Images
50mm rollers driven by V belt
Control box with Fwd/Stop/Rev switch
Mobile on swivel casters with brake
Reinforced side links
Easy to take curve in warehouse
Control box with Fwd/Stop/Rev switch
Packing and Shipping
FPR-V
FPR-RV
FPR-O-SUS
Through alliances with various partners, YiFan Conveyor is able to provide our customers a wide range of conveyor manufacturer made by the best manufacturers . Each roller track of the product is independently height adjustable.
Ningbo YiFan Conveyor Equipment Co.，Ltd has a high level of conveyor manufacturer processing technology. Each roller track of the product is independently height adjustable.
