YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.

Gravity flexible expandable extendable zinc-plated roller conveyor 1

Gravity flexible expandable extendable zinc-plated roller conveyor 2

Gravity flexible expandable extendable zinc-plated roller conveyor 3

Gravity flexible expandable extendable zinc-plated roller conveyor 4

Gravity flexible expandable extendable zinc-plated roller conveyor 5

Gravity flexible expandable extendable zinc-plated roller conveyor 6

Gravity flexible expandable extendable zinc-plated roller conveyor 7

Gravity flexible expandable extendable zinc-plated roller conveyor

Start Port:

Sea freight

Payment:

1 - 20(Sets):15(days),21 - 50(Sets):25(days),51 - 100(Sets):35(days),>100(Sets):Negotiable(days)

MOQ:

50KG/m

Model:

roller conveyor

Load Capacity:

FGR-M6.9

Certification:

Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)

Inquiry

Write a Review

Overview

Quick Details

Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining

After Warranty Service:Online support, Video technical support

Local Service Location:None

Showroom Location:None

Condition:New

Material:Carbon Steel

Material Feature:Fire Resistant

Structure:Roller Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:NO POWER

Power:Other

Dimension(L*W*H):L6900*W600*H700/1000 mm

Warranty:1 Year

After-sales Service Provided:Online support

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Other

Weight (KG):200 kg

Extendable Length:2960-6900mm

Effective Width:600mm

Adjustable Height:700-1000mm

Load Capacity:50kg/m

Roller Diameter:50mm

Roller Material:Galvanized Steel Rollers

Roller Center Gap:Max.120mm

Side Frame:2.5mm thickness steel plates

Supporting Legs:galvanized round steel tubes

Caster:4'' swivel lockable caster

Product Overview

FGR-M6.9 Gravity Roller Conveyor

Flexible gravity roller conveyor is widely used in assembly or transport line, physical distribution,container stuffing.etc, it is designed especially to convey flat-bottom items like cartons. it is all-steel joint structure makes sure that it holds its integrity when extended or curved, it helps to increase work efficiency and decrease labor intensity in material handling.

Technical Parameters

Gravity flexible expandable extendable zinc-plated roller conveyor 8

Extendable Length	2960-6900mm
Adjustable Height	700-1000mm
Roller Material	Galvanized Steel Rollers
Roller Center Gap	Max.120mm
Load Capacity	50kg/m
Side Frame	2.5mm thickness steel plates
Supporting Legs	galvanized round steel tubes
Caster	4'' swivel lockable caster

Gravity flexible expandable extendable zinc-plated roller conveyor 10

Gravity flexible expandable extendable zinc-plated roller conveyor 12

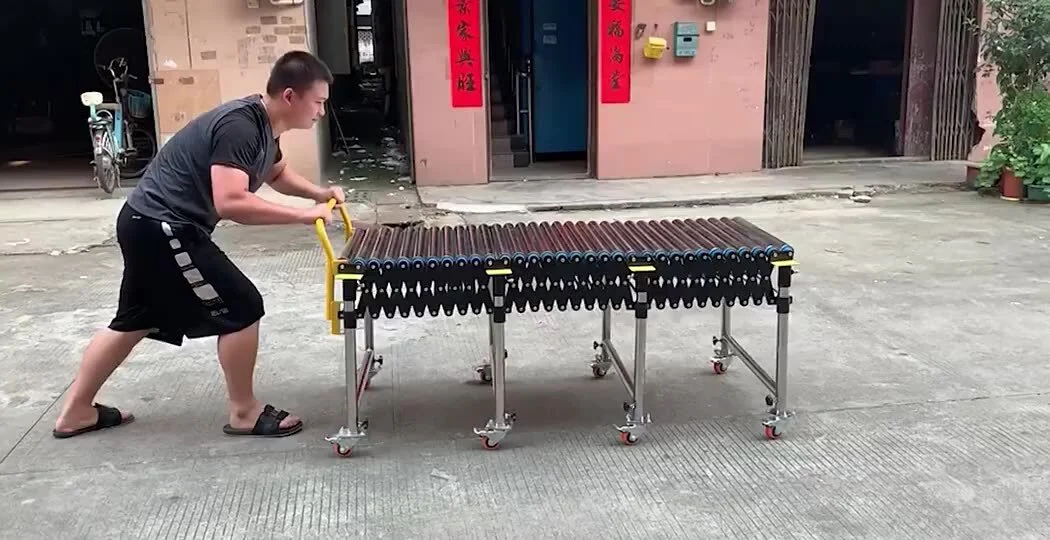

Operation Video

Details Image

roller

Side Links

Gravity flexible expandable extendable zinc-plated roller conveyor 18

caster

Successful Project

Gravity flexible expandable extendable zinc-plated roller conveyor 20

Gravity flexible expandable extendable zinc-plated roller conveyor 22

Gravity flexible expandable extendable zinc-plated roller conveyor 24

Company Profile

Gravity flexible expandable extendable zinc-plated roller conveyor 26

Gravity flexible expandable extendable zinc-plated roller conveyor 28

Gravity flexible expandable extendable zinc-plated roller conveyor 30

Gravity flexible expandable extendable zinc-plated roller conveyor 32

Gravity flexible expandable extendable zinc-plated roller conveyor 34

Gravity flexible expandable extendable zinc-plated roller conveyor 36

FAQ

Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service？
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Excellent customer service is formed in Ningbo YiFan Conveyor Equipment Co.，Ltd. Its robust solid welded construction ensures its stability and safety when running. As one of leading manufactures in China, Ningbo YiFan Conveyor Equipment Co.，Ltd sets high demand on quality of conveyor manufacturer. Its robust solid welded construction ensures its stability and safety when running.
