Good quality portable gravity steel skate wheel conveyor for unloading cartons
5.0
Start Port:
Sea freight
Payment:
1 - 20(Sets):15(days),21 - 50(Sets):20(days),51 - 100(Sets):30(days),>100(Sets):Negotiable(days)
MOQ:
[{'sku_name': '40KG/m', 'sku_img': None, 'sku_id': '100005813:-2;'}]
Model:
[{'sku_name': 'Gravity Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817515;'}]
Load Capacity:
[{'sku_name': 'FGW-S6.9-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining
After Warranty Service:Online support, Spare parts, Video technical support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Power:Other
Dimension(L*W*H):L6900*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Other
Weight (KG):300 kg
Extendable Length:2220-6900mm
Effective Width:600mm
Adjustable Height:700-1000mm
Load Capacity:40kg/m
Wheel Diameter:50mm
Wheel Material:Galvanized Steel
Roller Center Gap:Max.120mm
Side Frame:2.5mm thickness steel plates
Supporting Legs:galvanized round steel tubes
Caster:4'' swivel lockable caster
Product Overview
Flexible Gravity Steel Skate Wheel Conveyor
Flexible Gravity Steel Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrowaisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. Theconveyor largely facilitates goods delivery work.
Specification
Effective Width: 600mm
Overall Width: 750mm
Adjustable Height: 700-1000mm
Extendable Length: 2220-6900mm
Load Capacity: 40kg/m
Caster: 4" swivel lockable casters
Side Links: 2.5mm thickness powder coated join plates
50kg/m load capacity
End stop guard
high qualty galvanized steel wheels
Model List
Model | Open Length (mm) | Close Length (mm) | Adjustable Height (mm) | Effective Width (mm) | Wheel Dia (mm) | |||||
FGW-S2.5 | 2500 | 860 | 700-1000 | 600 | 50 | |||||
FGW-S3.6 | 3600 | 1200 | 700-1000 | 600 | 50 | |||||
FGW-S4.7 | 4700 | 1540 | 700-1000 | 600 | 50 | |||||
FGW-S5.8 | 5800 | 1880 | 700-1000 | 600 | 50 | |||||
FGW-S6.9 | 6900 | 2220 | 700-1000 | 600 | 50 | |||||
FGW-S8 | 8000 | 2560 | 700-1000 | 600 | 50 | |||||
FGW-S9.1 | 9100 | 2900 | 700-1000 | 600 | 50 | |||||
FGW-S10.2 | 10200 | 3240 | 700-1000 | 600 | 50 | |||||
FGW-S11.3 | 11300 | 3580 | 700-1000 | 600 | 50 | |||||
FGW-S12.4 | 12400 | 3920 | 700-1000 | 600 | 50 | |||||
FGW-S13.5 | 13500 | 4260 | 700-1000 | 600 | 50 | |||||
FGW-S14.6 | 14600 | 4600 | 700-1000 | 600 | 50 | |||||
FGW-S15.7 | 15700 | 4940 | 700-1000 | 600 | 50 | |||||
PS: for conveyor length more than 8m, we will take the conveyor into two or more parts for packing.This way is more safe for shipment and also help save spaces. | ||||||||||
Details Images
Easy to take a 180 degree curve
Extendable and expandable
Perfect to transport cartons
End package stop guard is available
50mm diameter galvanized steel wheels
Telescopic steel side links
Adjustable Height: 700-1000mm
Each unit with hooks to quickly joint tow units together
Mobile on 4" swivel casters with brakes

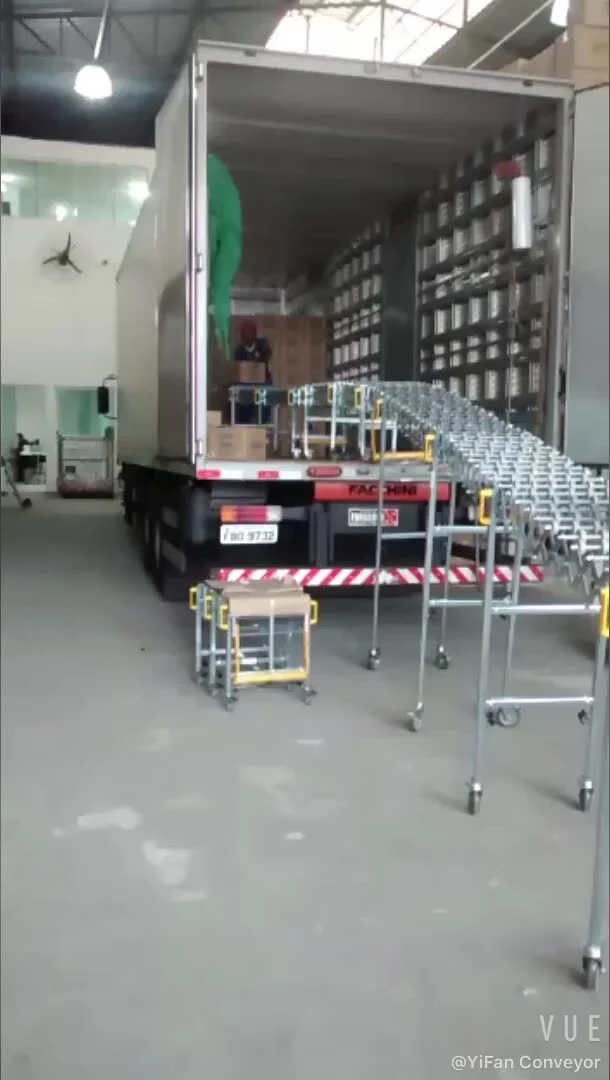

Application
Packing and Shipping
Take off the supporting legs first
Pack the leg kits in a separately cartons
Put the screws, spacers and handles in a small hardware cartons
Pack plastic skate wheel body in carton
Pack steel skate wheel body in cartons
Each cartons fix well with bangdages
Pack plastic skate wheel body in carton
Pack steel skate wheel body in cartons
Each cartons fix well with bangdages
How to set up?
How to choose flexible conveyor model?
● The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.
● Withthe same length,width,height,the standard flexible skate wheel conveyor is more economical than gravity roller units and makes the goods moves smoother.
● Double roller conveyor type makes the goods move smoother and more fluent than the single roller type.
● Any items with an uneven or open buttom,or with a rim on the bottom should be transported on rollers.
● Conveyed items can be wider than the conveyor.Extra wide items like plywood or sheet materials can be moved if carefully centered.
● Typically,3 rollers or 3 skate wheel lines must be beneath the load at any particular time for easy rolling.
Flexible Gravity Steel Roller Conveyor
Flexible Steel Skate Wheel Conveyor
Flexible Powered Roller Conveyor-O belt
Flexible Double PVC Roller Conveyor
Flexible Plastic Skate Wheel Conveyor
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
