Foldable Belt Conveyor Truck Loading Conveyor Manufacturers
TLC-F600

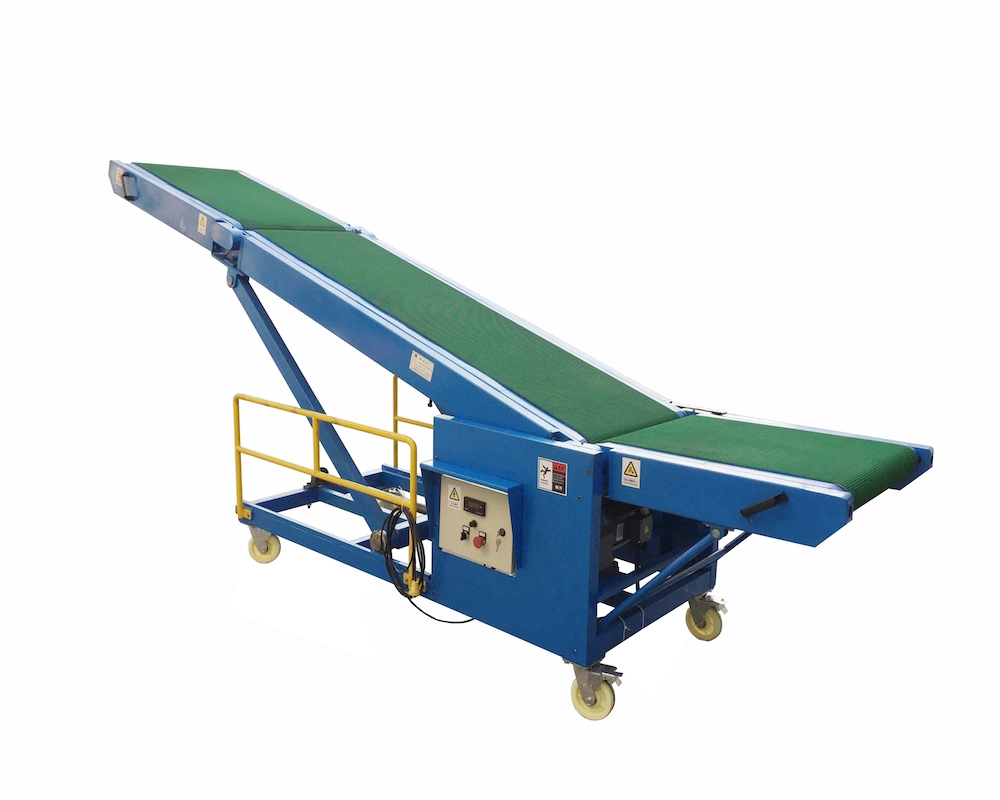

FOLDABLE TRUCK
LOADING CONVEYOR
Foldable Truck Loading Conveyor is a senior type of model TLC-600.It owns all the functions of TLC-600 and also be folded for dispatch and storage. This conveyor is perfect for crowded warehouse to stuffing and loading trucks.
PRODUCT PARAMETERS
This folding conveyor is mainly composed of frame, folding conveyor belt, rollers, rollers, tensioning device, transmission device and so on.
Folding truck loading conveyor can form a kind of material conveying process between the supply point at the beginning and the discharge point at the end on a certain conveying line.
The folding belt conveyor can be used for conveying loose materials as well as for loading of goods in combination with trucks and lorries. In addition to pure material conveying, it can also be used in conjunction with the requirements of the production process of various industrial enterprises to form a rhythmic flow transportation line.
| |
Technical Parameters | |
Belt Width | 600mm |
| Belt Type | 5mm thick rough top PVC belt |
| Adjustable Height | 700-2500mm |
| Adjustable Speed | 10-20m/min |
| Load Capacity | 50kg/m |
| Belt Driven Motor | 2kw |
Lifting Motor | 1.5kw |
| Frequency Inverter | Delta |
Power Supply | 220V/380V |
SHOW DETAILS
YiFan Conveyor Focus on manufacturing quality folding conveyor and best folding belt conveyor for trucks loading and unloading
