Foldable telescopic truck loading and unloading belt Conveyor unloading containers

Foldable telescopic truck loading and unloading belt Conveyor unloading containers
Start Port
Sea freight
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Load Capacity

Add success, do you want to check your shopping cart?

Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Showroom Location:None
Material:Carbon steel
Material Feature:Fire Resistant, Heat Resistant High Strength
Structure:Inclining belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Dimension(L*W*H):L4700*W600*H700/2500 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):600 kg
Belt Width:600mm
Belt Material:green PVC belt
Adjustable Speed:10-20m/min
Adjustable Height:700-2500mm
Motor Power:2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:6" heavy duty swivel lockable PU casters
Packing Size:L3000*W1200*H100mm,500KGS
After Warranty Service:Video technical support, Online support, Spare parts
Local Service Location:None
After-sales Service Provided:Free spare parts

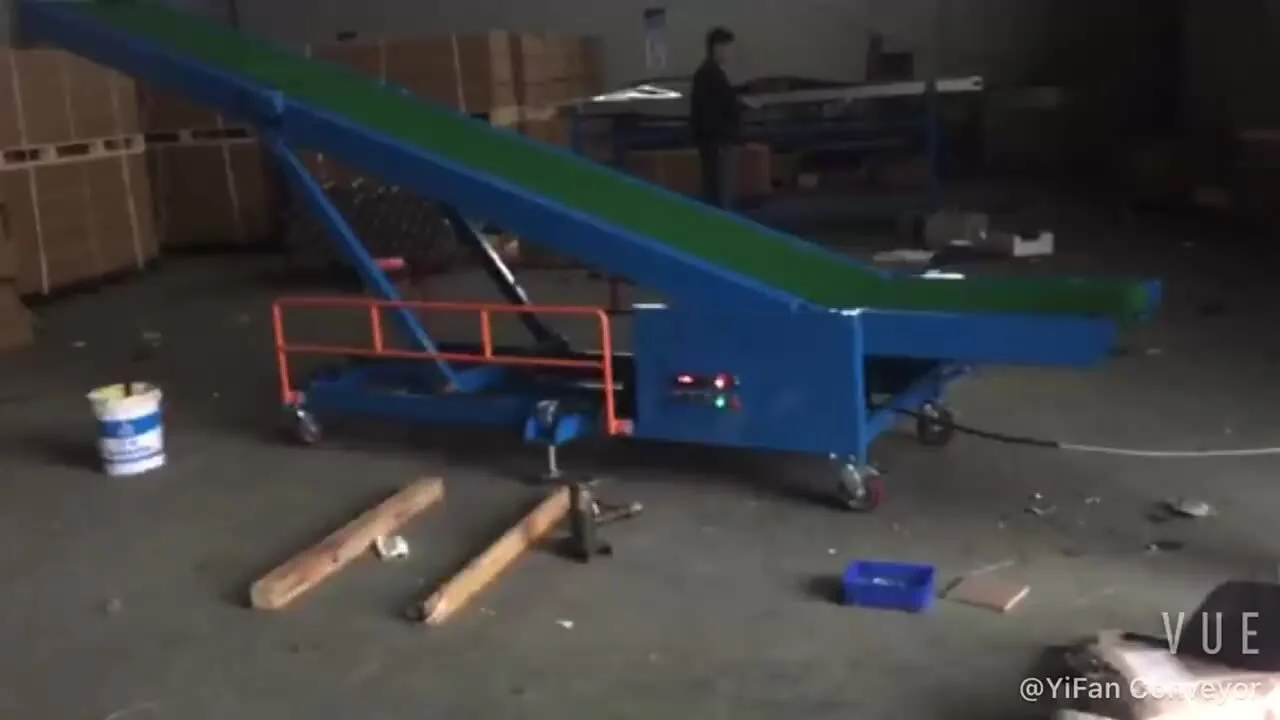

Video Description
Product Overview


Front Elevation
Left elevation
Right Elevation
Technical Parameters
1.Belt Specs:W=600,T=5mm,rough top PVC belt 2.Adjustable Speed:10-20m/min,foward & reverse 3.Adjustable Height:700-2500mm 4.Load Capacity:50kg/m 5.Lift Motor:2.2kw;Belt Motor:1.5kw 6.Power Supply:380V,3-PH,50Hz or 220V,1-PH,50Hz 7.Packing Size:L3000*W1200*H1000,3.6CBM,G.W.:730KGS
Packing and Shipping
One 20ft container can load 2nos of TLC-F600
One 40ft container can load 4nos of TLC-F600
Successful Project

2012 Project In Mombasa,Kenya

Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.

2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.

2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.

2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.

2016 Project In Kenya Cartons loading unloading container/trucks/trailers

Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags

2016 Project In Kenya Bags stacking mobile belt conveyor

Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
Company Profile
The product has a more promising prospect in the application compared to other products in the industry. The specifications, load capacity, and other special functions can be customized. With the increase of customers numbers, this product has a wider application range. The specifications, load capacity, and other special functions can be customized.
