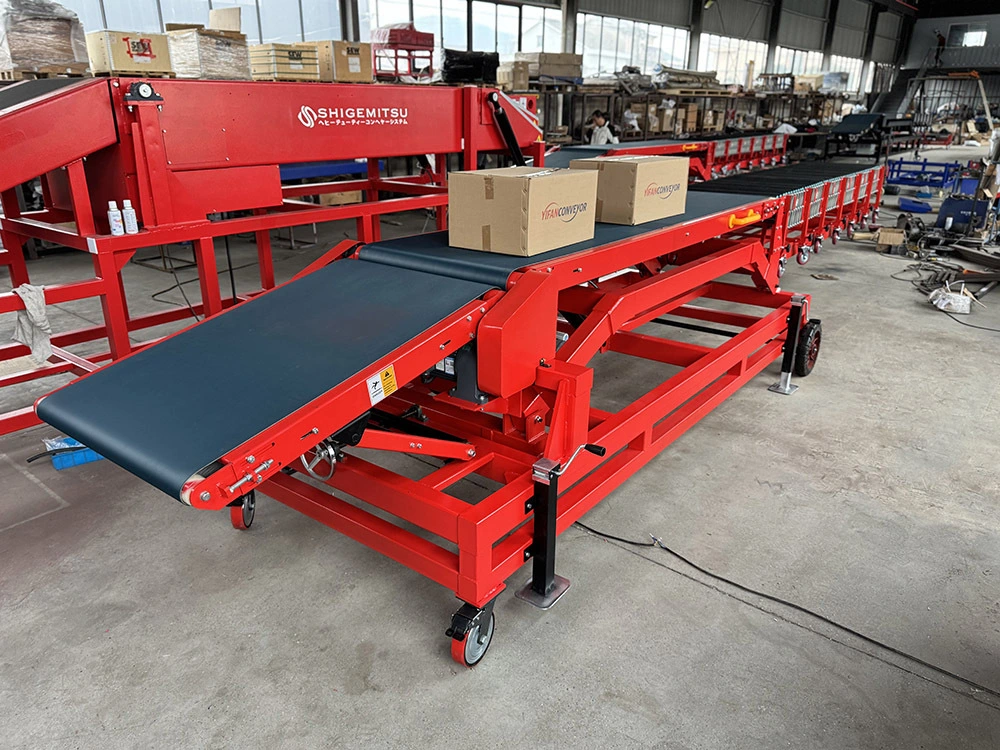

Flexible Truck Loading Conveyor Belt Mobile on Tyre and Wheels|CBLC-600

    oops...!

    no product data.

    Go to homepage

    CBLC-600 is a senior version of model TLC-P600.The front tongue can extend out to be 7.2m long. Except the front tongue, the structure is also stronger than other models.

    WechatIMG13593详情图
    WechatIMG13593详情图

    PRODUCT PARAMETERS

    undefined

    Part 1Inclined Belt Conveyor

    Part 2: Flexible Powered Roller Conveyor

    Belt Width

    600mm or 800mm

    Rollers

    600mm or 800mm Φ50*T1.5 galvanized steel rollers

    Belt Type

    3mm anti-skiding green PVC belt

    Roller dirven belt High quality poly V-belt

    Load height in vehicle

    1600-1700mm

    Motor

    90W or 120W, total 7nos

    Discharge height outside vehicle 850mm

    Adjustable Speed

    10-18m/min, two way

    Adjustable Speed

    10-20m/min

    Adjustable Height

    600-800mm

    Load Capacity

    50kg/m

    Load Capacity

    50kg/m

    Belt Driven Motor

    1.5kw

    Flexible Frame

    272*5mm X shape side links, galvanized or painted black

    Hydraulic Power Unit

    1.5kw

    Supporting Legs

    32*32*2mm steel tubes, painted in black

    Frequency Inverter

    Delta

    Castors

    5'' high quality swivel PU casters with brakes

    Main Electric Elements

    Schneider

    Voltage

    220V, single phase,50Hz/380V, three phase,50Hz

    Heavy Duty Caster

    Φ200mm lockable swivel PU casters

    Control Panel

    Forward/Stop/Reverse, Emergency Stop

    Frame Construction

    carbon steel, painted in blue RAL 5015

    Power Supply

    220V, single phase,50Hz/380V,three phase,50Hz

    Power Supply

    220V, single phase,50Hz/380V,three phase,50Hz

    -

    -

    SHOW DETAILS

    400mm diameter solid tyre~1
    400mm diameter solid tyre
    Adjust height by hydraulic lift~1
    Adjust height by hydraulic lift
    Adopt 3mm stripped belt with Siegling brand Brand
    Adopt 3mm stripped belt with Siegling brand Brand
    Front tongue is 7
    Front tongue is 7
    Main Control Box with Up_Down,Load_Unload,E-stop b
    Main Control Box with Up_Down,Load_Unload,E-stop b
    Slave conveyor with adjustable height~1 (4)
    Slave conveyor with adjustable height
    Suitable for load both cartons and bags~1
    Suitable for load both cartons and bags
    With adjustable foot to lock the conveyor~1
    With adjustable foot to lock the conveyor
    With handle to help move conveyor around~1
    With handle to help move conveyor around

    Application 1

    Project in Kenya Oil Products Factory

    Loading oil cartons from storehouse directly into containers

    WechatIMG13593详情图
    WechatIMG13593详情图
    With handle to help move conveyor around~1
    With handle to help move conveyor around~1
    With adjustable foot to lock the conveyor~1
    With adjustable foot to lock the conveyor~1
    WechatIMG13593详情图
    WechatIMG13593详情图
    With handle to help move conveyor around~1
    With handle to help move conveyor around~1
    With adjustable foot to lock the conveyor~1
    With adjustable foot to lock the conveyor~1

    Application 2

    YiFan's truck loading conveyor can help customer achieve maximum productivity.
