Flexible roller conveyor turning 180 degree curve motorized roller conveyor system-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Roller Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:AC 110V/220V/380V

Power:1.5kw

Dimension(L*W*H):L6000*W600*H700/1000 mm

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Gear, Frequency Inverter

Weight (KG):250 kg

Roller:50mm galvanized steel roller

Roller Width:600mm or 800mm

Roller Center Gap:Max.130mm

Motor:90W

Adjustable Height:600-800mm

Extendable Length:2300-6000mm

Adjustable Legs:30*30 steel tubes

Side Links:3.5mm thickness galvanized curved join plates

Control Box:Forward/Stop/Reverse,Emergency Stop

Caster:5'' swivel lockable caster

Video Description

Product Overview

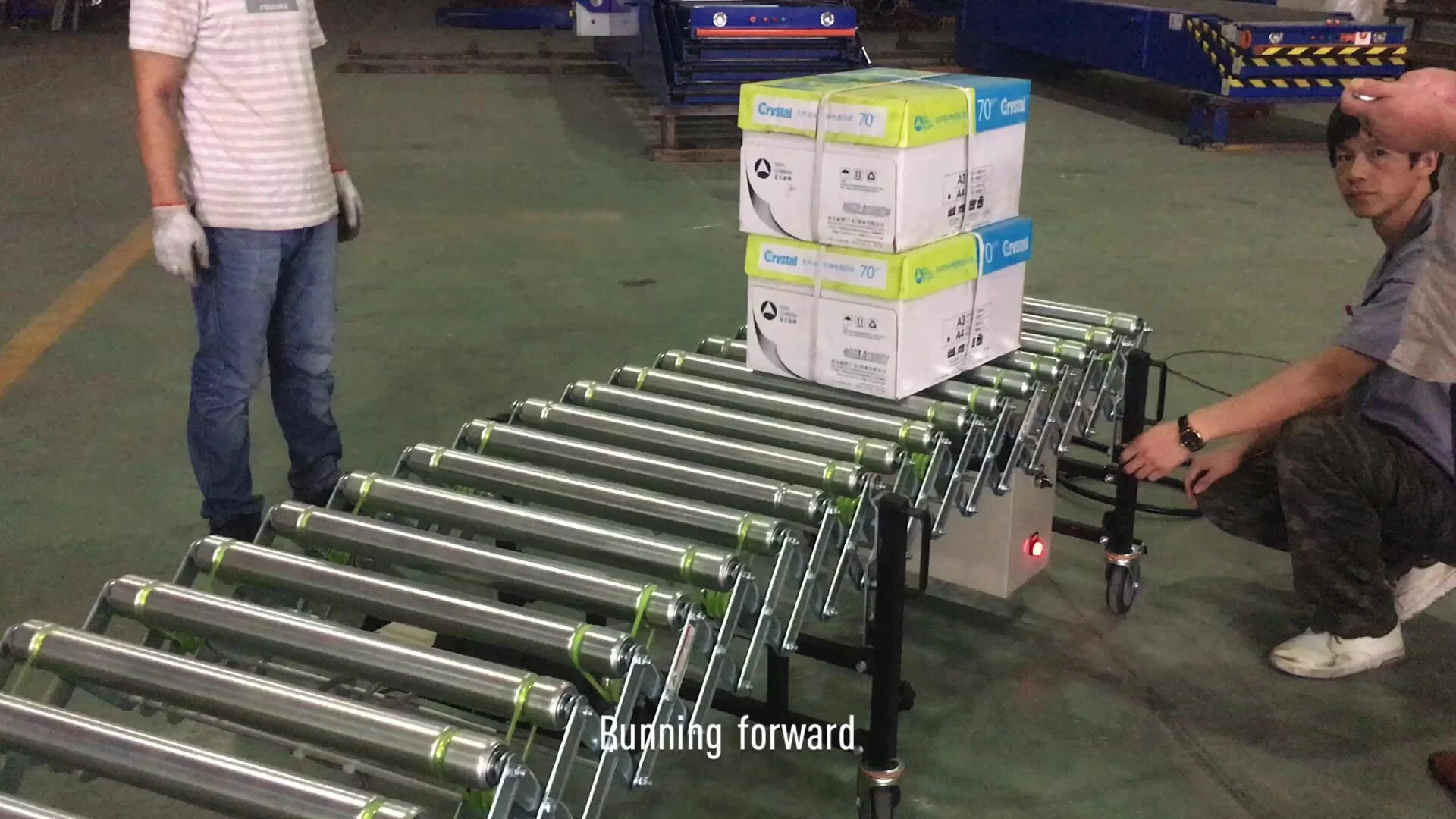

50KG LOAD O-BELT FLEXIBLE POWERED ROLLER CONVEYOR

50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.

Specification Roller Width: 600mm or 800mm Adjustable Height: 700-1000mm Extendable Length: 2300-6000mm Load Capacity: 50kg/m Control Box: Forward/Stop/Reverse,Emergency Stop Voltage: 220V,1-Phase or 380V, 3-Phase Motor: 90W, Zhongda brand Caster: 5" swivel lockable casters Side Links: 3.5mm thickness galvanized curved join plates

Details Images

Packing and Shipping

Model List

Model	Open Length (mm)	Close Length (mm)	Adjustable Height (mm)	Roller Width (mm)	Motor Power (w)
FPR-O6	6000	2300	600-800	600,800	450
FPR-O7.2	7200	2760	600-800	600,800	540
FPR-O8.4	8400	3220	600-800	600,800	630
FPR-O9.6	9600	3680	600-800	600,800	720
FPR-O10.8	10800	4140	600-800	600,800	810
FPR-O12	12000	4600	600-800	600,800	900
FPR-O13.2	13200	5060	600-800	600,800	990
FPR-O14.4	14400	5520	600-800	600,800	1080
FPR-O15.6	15600	5980	600-800	600,800	1170
FPR-O16.8	16800	6440	600-800	600,800	1260
FPR-O18	18000	6500	600-800	600,800	1350
FPR-O19.2	19200	6960	600-800	600,800	1440
FPR-O20.4	20400	7420	600-800	600,800	1530
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug.

How to choose YiFan's FPR ?

FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Customers say one of the reasons they like it so much is when they strike it lightly, it will ring with a clear bell-like sound which makes them delightful. It can be widely seen in logistics, ports, docks, stations, airports, etc. The product is significant for the development of industrial and economic. It is widely used in construction, high-tech industry, and chemical engineering. It can be widely seen in logistics, ports, docks, stations, airports, etc.
