Flexible lifting loading unloading telescopic conveyor belt type

B站不支持收货地址

B站不支持库存规格

Model: SLAT CONVEYOR,Other

MOQ: 50KG

Start Port: Sea freight

Certification: Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)

Lead_Time: 1 - 5(Sets):30(days),>5(Sets):Negotiable(days)

Load Capacity: FTBC-4S-6/12-800

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Belt Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz

Power:Other

Dimension(L*W*H):L6000/12000*W600*H950 mm

Warranty:1 Year

Width or Diameter:800mm

Machinery Test Report:Provided

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter

Weight (KG):3500 kg

Belt Material:PVK

Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop

Packing Details:L6100*W1400*H1000mm,4000KGS

Motor Power:0.75kw,2.2kw

Belt Width:600mm,800mm

Belt Speed:10-30m/min

Boom Speed:10-12m/min

Conveyor Height:adjust by hydraulic

Load Capacity:50kg/m

Video Description

Product Overview

TELESCOPIC BELT CONVEYOR

Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

Fixed Length: 6000mm Extension: 12000mm

Total Length: 18000mm Belt Width: 600mm Base Height: 950mm Rise Up Height: 2100mm Load Capacity: 50kg/m Belt Running: 10-30m/min Extending Speed: 10m/min Motor Brand: SEW

Front Elevation

Left elevation

Right Elevation

Model List

Model	Belt Width (mm)	Fixed Length (mm)	Extended Length (mm)	Total Length (mm)	Base Height (mm)	Lift Height (mm)
FTBC-4S-6/12-600	600	6000	12000	18000	900	2100
FTBC-4S-6/12-800	800	6000	12000	18000	900	2100

Details Image

Successful Project

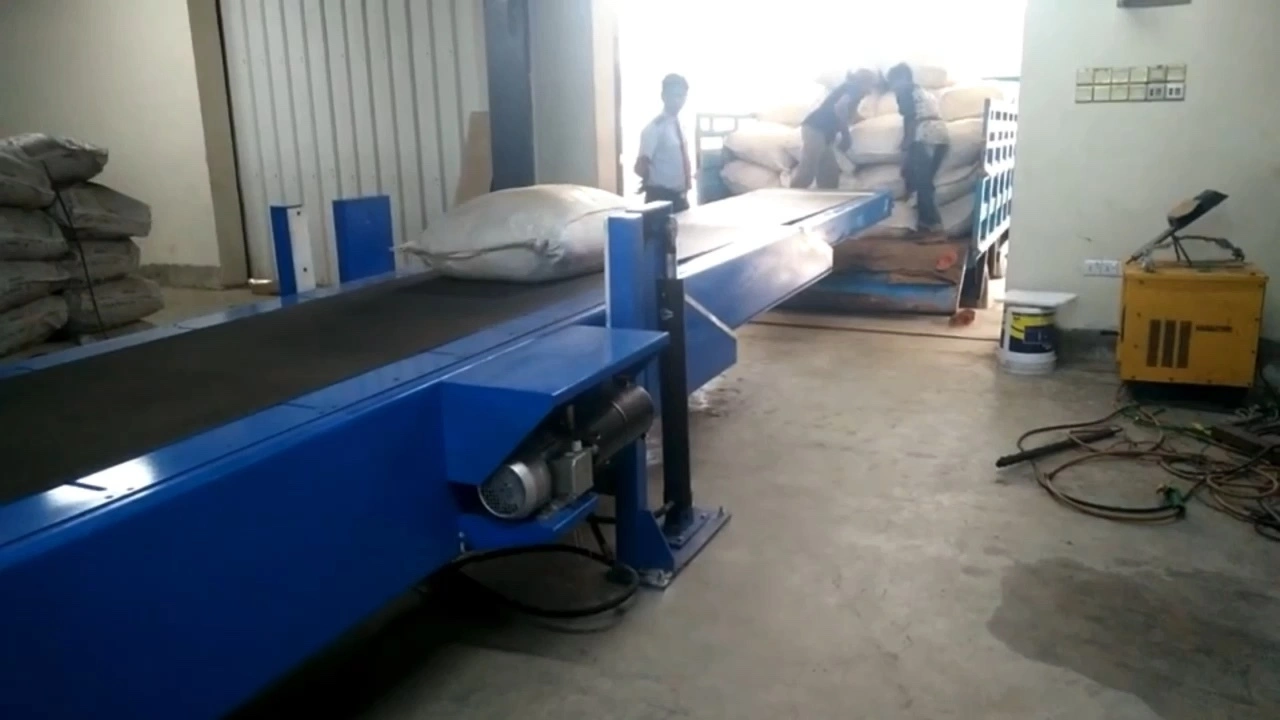

Project in Bangladesh Tea Products Factory

Vertical lifting 60KG tea bags from 2nd floor to first floor and load directly into trucks.

Company Profile

This product guarantees high and large production efficiency. Manufacturers or manufacturers can apply this product to make more and better quality products. The product has passed the CE certification. The ultimate benefit of using this product is self-evident. It will bring profit to manufacturers by increasing labor productivity, optimizing division of responsibilities and lowering human capital costs. The product has passed the CE certification.
