    Overview
    Quick Details
    Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
    After Warranty Service:Video technical support, Online support, Spare parts
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Roller Conveyor
    Place of Origin:China
    Brand Name:YiFan
    Power:no power
    Dimension(L*W*H):L6900*W600*H700/1000 mm
    Warranty:1 Year
    After-sales Service Provided:Online support
    Width or Diameter:Size customization
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Roller, Wheel
    Extendable Length:2220-6900mm
    Adjustable Height:700-1000mm
    Effective Width:600mm
    Load Capacity:40kg/m
    Wheel Diameter:50mm
    Wheel Material:steel
    Roller Center Gap:Max.120mm
    Side Frame:2.5mm thickness steel plates
    Supporting Legs:galvanized round steel tubes
    Caster:4'' swivel lockable caster
    Product Overview

    FGW-S6 Flexible Skate Wheel Gravity Conveyor

    Flexible Skate Wheel Conveyor is often chosen to convey small & medium sized flat-bottom items in harbor, dock,
    warehouse/storehouse, factory, etc.It is extendable, retractable and bendable. It can take curve flexibly even in zigzag narrow aisles. The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides. The skate wheel conveyor largely facilitates goods delivery work.
    Technical Parameters
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 8
    Effective Width
    600mm
    Overall Width
    750mm
    Adjustable Height
    700-1000mm
    Extendable Length
    2220-6900mm
    Load Capacity
    40kg/m
    Caster
    4" swivel lockable casters
    Side Links
    2.5mm thickness powder coated join plates
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 10
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 12

    Features

    1.Rugged heavy duty self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow
    2.Axle centers variable from 1-1/4" to 4" for 7" minimum package size
    3.40kg per linear meter load capacity
    4.Heavy duty powder coated steel side plates ensure maximum strength and durability.
    5.Includes convenient end box-stop and hooks to connect additional conveyors.
    6.Adjustable height achieve maximum gravity flow and create banked curves:700-1000mm as standard,800-1200mm (31-1/2" to 47-1/4") as option.
    7.Simply insert galvanized telescopic leg sets into integral sockets.
    8.Easy to move around on Dia 100mm(4") heavy duty lockable swivel polyurethane casters.
    9.Can be made in custom lengths to suit your individual conveying application
    Details Image
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 14
    Easy to take a 180 degree curve
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 16
    Extendable and expandable
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 18
    Perfect to transport cartons
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 20
    End package stop guard is available
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 22
    50mm diameter galvanized steel wheels
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 24
    Telescopic steel side links
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 26
    Adjustable Height: 700-1000mm
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 28
    Each unit with hooks to quickly joint tow units together
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 30
    Mobile on 4" swivel casters with brakes

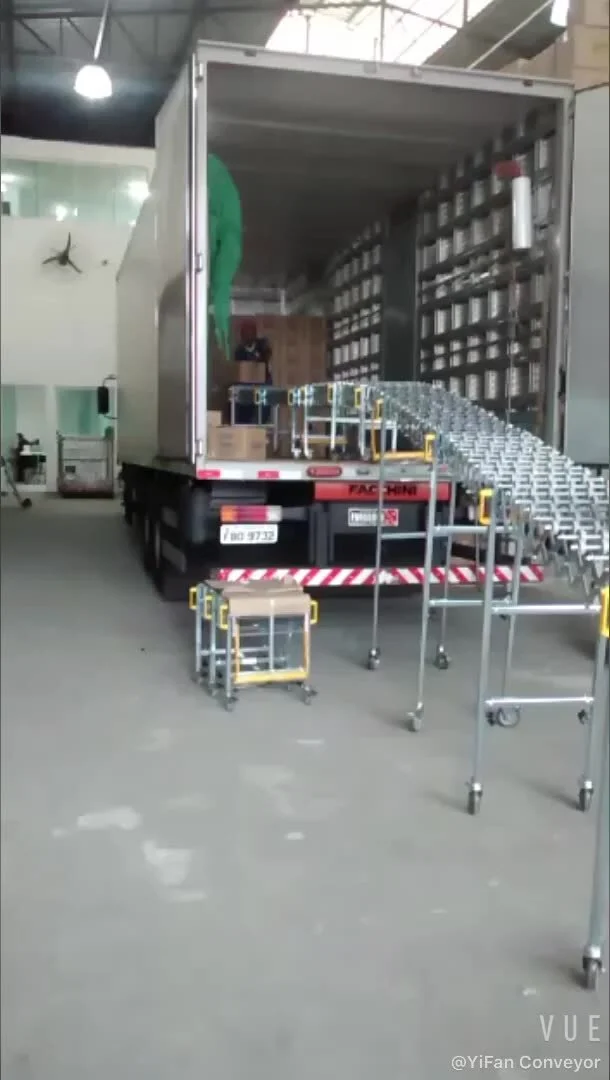

    Successful Project
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 32

    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 34

    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 36

    Company Profile
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 38
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 40
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 42
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 44
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 46
    Flexible Expandable Gravity steel Skate Wheel Roller Conveyor 48
    FAQ
    Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service?
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

    How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    By using this product, business owners can reduce or completely eliminate human intervention in a production process, which improves the overall efficiency. It can help enterprises decrease the cost and increase work efficiency. Thanks to its easy operation, it greatly reduces time waste and allows people to start their work and tasks at the fastest speed. It can help enterprises decrease the cost and increase work efficiency.
