Flexible Powered Roller Conveyor
Home  > new category  > Flexible Powered Roller Conveyor  >

Flexible conveyor roller table stainless flexible metal conveyor

这里可以自定义设置
Flexible conveyor roller table stainless flexible metal conveyor
B站不支持收货地址
B站不支持库存规格
Model
Other
MOQ
50KG/m
Start Port
Sea freight
Certification
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 5 Sets)
Lead_Time
1 - 20(Sets):15(days),>20(Sets):Negotiable(days)
Load Capacity
FPR-O
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V
Power:1.5kw
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Frequency Inverter
Weight (KG):250 kg
Roller:50mm galvanized steel roller
Roller Width:600mm or 800mm
Roller Center Gap:Max.130mm
Motor:90W
Adjustable Height:600-800mm
Extendable Length:2300-6000mm
Adjustable Legs:30*30 steel tubes
Side Links:3.5mm thickness galvanized curved join plates
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Video Description
Product Overview

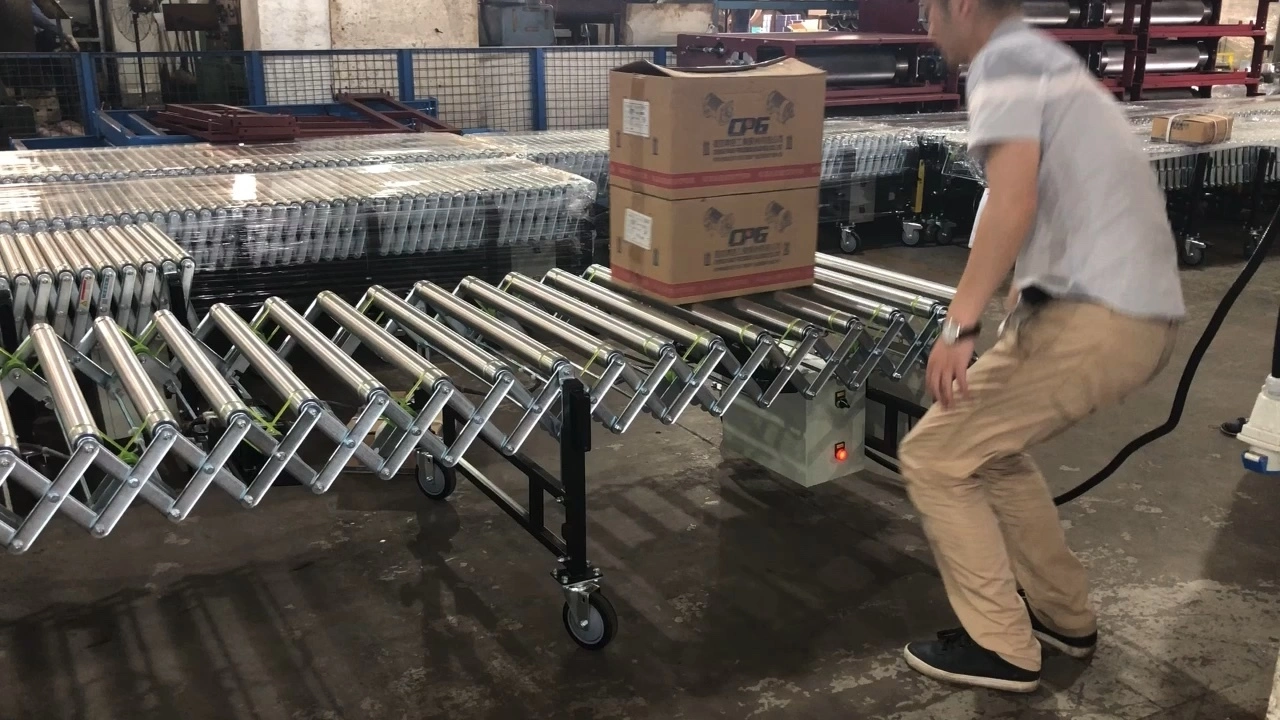

50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.
Specification Roller Width: 600mm or 800mm Adjustable Height: 700-1000mm Extendable Length: 2300-6000mm Load Capacity: 50kg/m Control Box: Forward/Stop/Reverse,Emergency Stop Voltage: 220V,1-Phase or 380V, 3-Phase Motor: 90W, Zhongda brand Caster: 5" swivel lockable casters Side Links: 3.5mm thickness galvanized curved join plates
Details Images
Packing and Shipping
Model List
Model
Open Length
(mm)
Close Length
(mm)
Adjustable Height
(mm)
Roller Width
(mm)
Motor Power
(w)
FPR-O6
6000
2300
600-800
600,800
450
FPR-O7.2
7200
2760
600-800
600,800
540
FPR-O8.4
8400
3220
600-800
600,800
630
FPR-O9.6
9600
3680
600-800
600,800
720
FPR-O10.8
10800
4140
600-800
600,800
810
FPR-O12
12000
4600
600-800
600,800
900
FPR-O13.2
13200
5060
600-800
600,800
990
FPR-O14.4
14400
5520
600-800
600,800
1080
FPR-O15.6
15600
5980
600-800
600,800
1170
FPR-O16.8
16800
6440
600-800
600,800
1260
FPR-O18
18000
6500
600-800
600,800
1350
FPR-O19.2
19200
6960
600-800
600,800
1440
FPR-O20.4
20400
7420
600-800
600,800
1530
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug.
How to choose YiFan's FPR ?
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Ningbo YiFan Conveyor Equipment Co.,Ltd's products quality system and environmental management system have received the international certificates. Based on the requirements, the color can be customized. Ningbo YiFan Conveyor Equipment Co.,Ltd is equipped with a very large and clean warehouse to store conveyor manufacturer. Based on the requirements, the color can be customized.
