    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L3600*W600*H800/2000 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):600 kg
    Belt Width:600mm
    Belt Material:black PVC belt
    Front Tongue:2m powered roller
    Adjustable Speed:10-20m/min
    Adjustable Height:800-2000mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:5" heavy duty swivel lockable PU casters
    Packing Size:L3600*W1100*H1500mm
    Video Description
    Product Overview

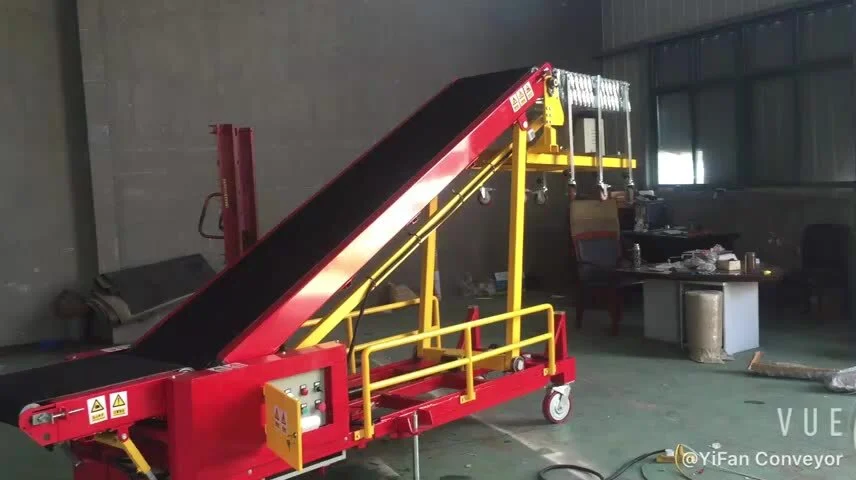

    SMALL TRUCK LOADING CONVEYOR (TLC-S600)

    Small truck loading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.
    Part 1 2m extendable powered roller conveyor 700-1000mm adjustable height 10-18m/min adjustable speed independent control box two way operation Part 2 Inclined Belt Conveyor 800-2000mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity
    Flexible conveyor belt container load and unloading ramps truck yard dock 8
    Flexible conveyor belt container load and unloading ramps truck yard dock 10
    Front Elevation
    Flexible conveyor belt container load and unloading ramps truck yard dock 12
    Left elevation
    Flexible conveyor belt container load and unloading ramps truck yard dock 14
    Right Elevation
    Model List
    Model
    Belt Width
    (mm)
    L1(mm)
    L2(mm)
    L3(mm)
    L(mm)
    H1(mm)
    H2(mm)
    TLC-S600
    600
    700
    2800
    1000
    2000
    800
    800-2000
    TLC-S800
    800
    700
    2800
    1000
    2000
    800
    800-2000
    Flexible conveyor belt container load and unloading ramps truck yard dock 16
    Details Images
    Flexible conveyor belt container load and unloading ramps truck yard dock 18
    With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
    Flexible conveyor belt container load and unloading ramps truck yard dock 20
    Control panel covered by a lockable door
    Flexible conveyor belt container load and unloading ramps truck yard dock 22
    Flexible conveyor bracket and main conveyor are joint by screws
    Flexible conveyor belt container load and unloading ramps truck yard dock 24
    Mobile on lockable swivel casters
    Flexible conveyor belt container load and unloading ramps truck yard dock 26
    Slave conveyor with adjustable height
    Flexible conveyor belt container load and unloading ramps truck yard dock 28
    With screw handle to fix the conveyor when lift up
    Flexible conveyor belt container load and unloading ramps truck yard dock 30
    With hole for add oil to the bearings
    Flexible conveyor belt container load and unloading ramps truck yard dock 32
    Front flexible conveyor with independent control box
    Flexible conveyor belt container load and unloading ramps truck yard dock 34
    With two side guide on the main body
    Successful Project
    Flexible conveyor belt container load and unloading ramps truck yard dock 36
    Flexible conveyor belt container load and unloading ramps truck yard dock 38
    Flexible conveyor belt container load and unloading ramps truck yard dock 40
    Flexible conveyor belt container load and unloading ramps truck yard dock 42
    Flexible conveyor belt container load and unloading ramps truck yard dock 44
    Flexible conveyor belt container load and unloading ramps truck yard dock 46
    Flexible conveyor belt container load and unloading ramps truck yard dock 48
    Flexible conveyor belt container load and unloading ramps truck yard dock 50
    Company Profile
    Flexible conveyor belt container load and unloading ramps truck yard dock 52
    Flexible conveyor belt container load and unloading ramps truck yard dock 54
    Flexible conveyor belt container load and unloading ramps truck yard dock 56
    Flexible conveyor belt container load and unloading ramps truck yard dock 58
    Flexible conveyor belt container load and unloading ramps truck yard dock 60
    Flexible conveyor belt container load and unloading ramps truck yard dock 62
    The stable and enhanced performance of this product helps to reduce the costs associated with maintenance, longer up-times, and enhanced product quality. Its special design on the side prevents operators from falling into it. This product leads to increased productivity, division of labor and specialization, and these will eventually bring about profits to producers. Its special design on the side prevents operators from falling into it.
