    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    Showroom Location:None
    Condition:New
    Material:Carbon steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V
    Power:Other
    Warranty:1 Year
    Width or Diameter:800mm
    Machinery Test Report:Provided
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):3500 kg
    Belt Material:PVK
    Control Panel:Load/Unload,Up/Down,Stop,Emergency Stop
    Motor Power:0.75kw,2.2kw
    Belt Width:800mm
    Belt Speed:10-30m/min
    Boom Speed:10-12m/min
    Adjustable Height:800-1500mm
    After Warranty Service:Online support
    Certification:CE
    Video Description
    Product Overview

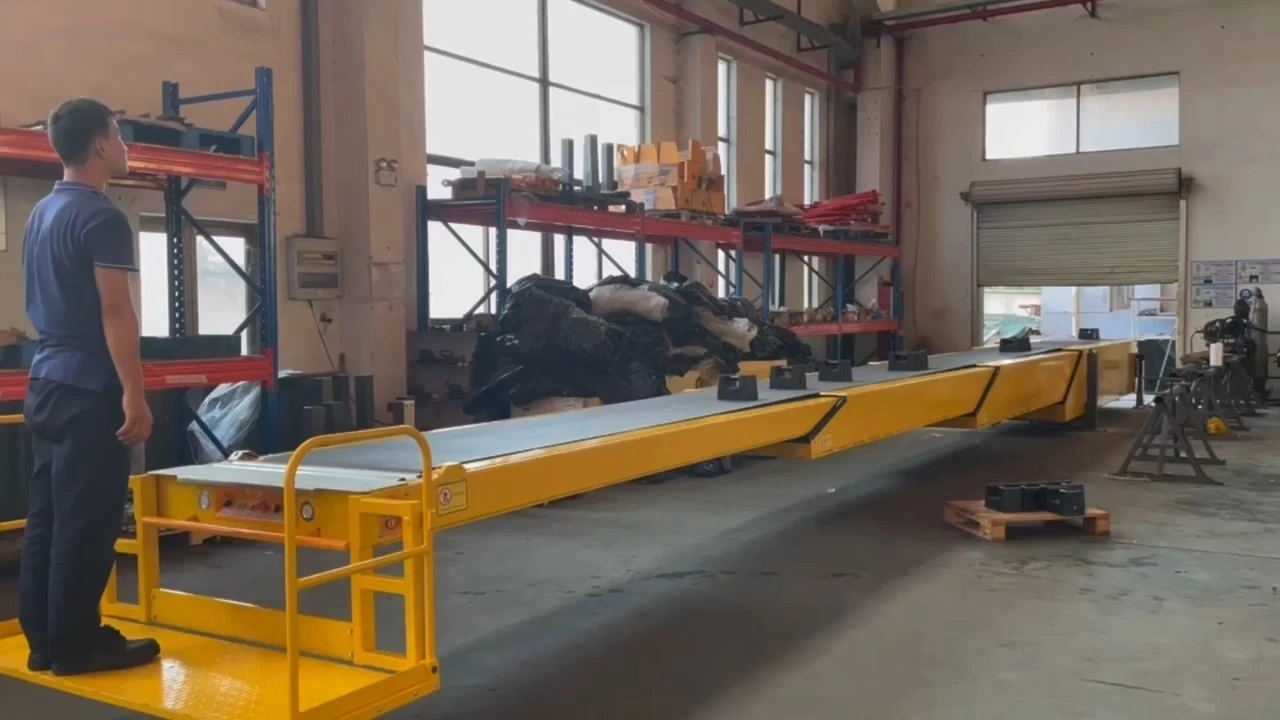

    TELESCOPIC BELT CONVEYOR ( MODEL: FTBC-4S-4/7-800 )

    Details Image





    Main control box
    Load, Unload, Stop, Up, Down, Emergency Stop




    Schneider VFD
    With Schneider VFD for adjust speed




    Front control panel
    Load, Stop, Unload, Light, Emergency Stop



    Protective brushes
    With brushes to avoid dusy and small items fall inside the conveyor frame




    Durable PVK belt
    Adopt hard and durable PVK material belt with long life span




    Operator platform
    With operator standing platform for easy loading unloading in containers
    Reference Drawing
    Company Profile
    In the course of its operations, it is safe for people. There are no potential risks such as power, fire, and overvoltage. With a high-quality powder coat finish, the product won't fade easily. Seen from the long run, there is no doubt that the product helps manufacturers reduce their carbon footprint during the production. With a high-quality powder coat finish, the product won't fade easily.
