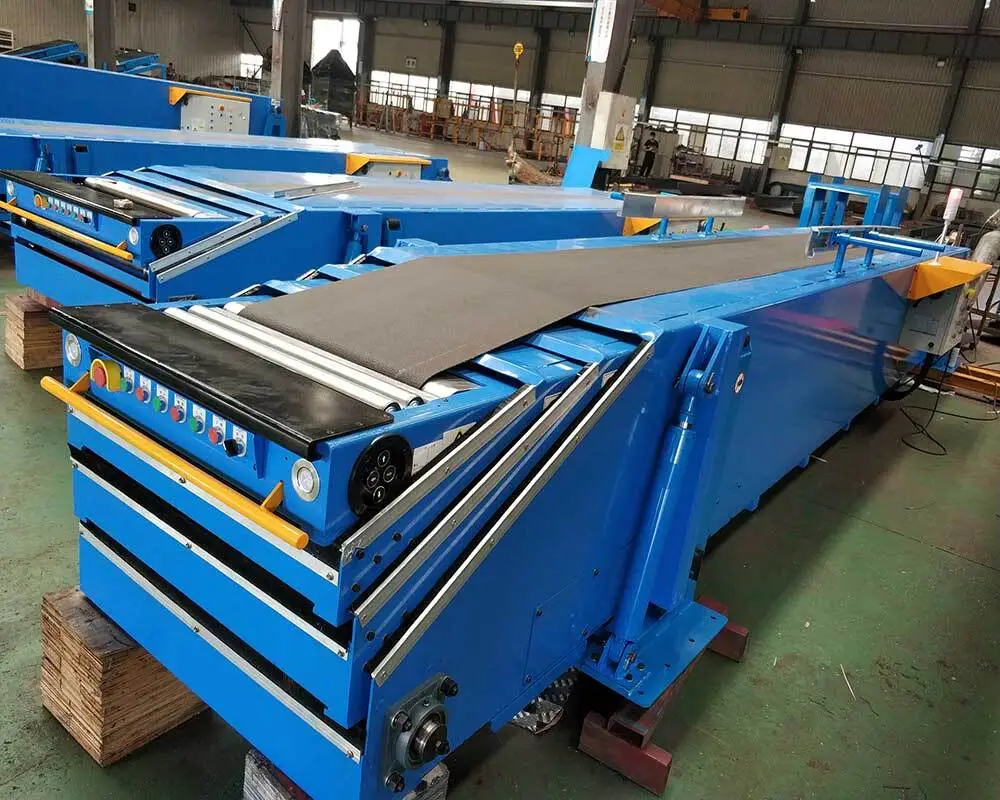

Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 1
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 2
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 3
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 4
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 5
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 6
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 1
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 2
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 3
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 4
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 5
Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 6

Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800

    oops...!

    no product data.

    Go to homepage
    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 7

    FTBC-4S-6/12-800

    40FT CONTAINER LOADING UNLOADING TELESCOPIC BELT CONVEYOR

    Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

    Features
    1. In structure, the telescopic conveyor makes the common belt conveyor extendable and retractable freely. The length can be controlled at will by the buttons; and also height adjustment is available if needed.
    2. The conveyor can combine other conveying equipment such as lifting conveyors, inflexible roller/belt conveyors and assembly line, in which way an automatic conveying system is complete for production, assembly, storage, loading and unloading of goods.
    3. The conveyor can transmit items in both forward and reverse way; and some options in details: either constant or variable in conveying/telescoping speed, either fixed or movable type by adding universal wheels, and belt types of chemical fiber/PVC belt, oil-proof or cutting-proof

    PRODUCT PARAMETERS

    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 8

    40ft Container Loading Unloading Telescopic Belt Conveyor

    Fixed Length

    6m

    Extension Length

    12m

    Total Length

    1m

    Belt Spec

    800mm width Siegling PVK belt, alligator clip jointing

    Belt Top Height

    900mm, can lift up to 2100mm

    Operation Direction

    forward & reverse

    Load Capacity

    50kg/m

    Belt Driven Motor

    3.0kw, SEW

    Telescopic Motor

    0.75kw, SEW

    Hydraulic Power Pack

    2.2kw

    Machine Total Power

    5.95 kw

    Electric Control System

    Siemens PLC intelligent controller

    Main Electric ComponentsSchneider,including abnormal fault automatic detection alarm device

    Telescopic Chain

    Donghua, Hangzhou

    Cable Carrier

    Kruis

    Standard Color

    BLUE, RAL5005

    Power Cord Length10m
    Standard ColorBlue, RAL 5015

    Voltage

    380V, three phase, 50Hz

    SHOW DETAILS

    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 9
    Conveyor in extended condition
    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 10
    Font head with anti collision bar
    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 11
    Control extend and retract on both side of the conveyor

    Application 1

    Loading 50KG cement bags from warehouse directly to trucks by Yifan's telescopic belt conveyor

    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 12
    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 13
    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 14
    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 15

    Application 2

    Unloading cartons/boxes from trucks to warehouse

    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 16
    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 17
    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 18

    MODEL LIST


    Fixed Telescopic Belt Conveyor for Load Unload 20ft & 40ft Container | FTBC-4S-6/12-800 19

    Type

    Model No.

     A

    Fixed Length

     B

    Extension

     C

    Total Length


    Belt Width


    Base Height


    Load Capacity


    Belt Speed


    Extend Speed

    3 Stages

    FTBC-3S-4/5.44m5.4m9.4m600/800mm800mm
    50kg/m15-30m/min10m/min
    FTBC-3S-4.5/64.5m6m10.5m600/800mm800mm50kg/m15-30m/min10m/min
    FTBC-3S-5/75m7m12m600/800mm800mm50kg/m15-30m/min10m/min
    FTBC-3S-5.4/7.35.4m7.3m12.7m600/800mm800mm50kg/m15-30m/min10m/min
    FTBC-3S-6/8.56m8.5m14.5m600/800mm800mm50kg/m15-30m/min10m/min
    FTBC-3S-6.5/9.46.5m9.4m15.9m600/800mm800mm50kg/m15-30m/min10m/min
    FTBC-3S-7/9.67m9.6m16.6m600/800mm800mm50kg/m15-30m/min10m/min
    4 Stages
    FTBC-4S-4/74m7m11m600/800mm950mm50kg/m15-30m/min10m/min
    FTBC-4S-4.5/8.54.5m8.5m13m600/800mm950mm50kg/m15-30m/min10m/min
    FTBC-4S-5/9.55m9.5m14.5m600/800mm950mm50kg/m15-30m/min10m/min
    FTBC-4S-5.4/10.35.4m10.3m15.7m600/800mm950mm50kg/m15-30m/min10m/min
    FTBC-4S-6/126m12m18m600/800mm950mm50kg/m15-30m/min10m/min
    FTBC-4S-6.5/12.86.5m12.8m19.3m600/800mm950mm50kg/m15-30m/min10m/min
    FTBC-4S-7/147m14m21m600/800mm950mm50kg/m15-30m/min10m/min
    5 Stages
    FTBC-5S-15/2115m21m36m600/800mm1100mm50kg/m15-30m/min10m/min
    FTBC-5S-16/2216m22m38m600/800mm1100mm50kg/m15-30m/min10m/min
