Factory wholesale powered roller conveyor for carton package transport

这里可以自定义设置
Factory wholesale powered roller conveyor for carton package transport
B站不支持收货地址
B站不支持库存规格
Type
motorized conveyor
Load Capacity
100KG/m
Model Number
FPR-V6-600
Lead Time
1 - 1(Sets):2300(days),2 - 3(Sets):2200(days),4 - 10(Sets):2000(days),>10(Sets):Negotiable(days)
shipping
Sea freight
Customization
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail
After Warranty Service:Online support, Video technical support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:1.5 KW
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Online support
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Gear, Motor
Weight (KG):400 kg
Extendable Length:2550-6000mm
Adjustable Height:700-1000mm
Roller:600*50mm galvanized steel roller
Roller Center Gap:Max.140mm
Motor:90W,Zhongda brand
Side Links:5mm thickness galvanized curved join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Product Overview

FPR-V6-600 Powered Roller Conveyor

Expandable Powered Roller Conveyor, Motorized Flexible Roller Conveyor is an popular automatic roller conveyor with adjustable speed,height & direction.It is well qualified to intensively transport cartons,cases,boxes in the warehouse , workshop,factory,harbor,dock,etc.It can also be applied as packing line,temporary conveying line and goods distribution
line.
Technical Parameters
Extendable Length
2550-6000mm
Adjustable Height
700-1000mm
Roller
600*50mm galvanized steel roller
Roller Center Gap
Max.140mm
Motor
90W,Zhongda brand
Side Links
5mm thickness galvanized curved join plates
Adjustable Legs
32*32 outer tube with 30*30 inner tube
Control Box
Forward/Stop/Reverse,Emergency Stop
Caster
5'' swivel lockable caster
Model
Open Length
(mm)
Close Length
(mm)
Width
(mm)
AdjustableHeight
(mm)
VariableSpeed
(m/min)
Max.Load
(kg/㎡)
Motor Power (w)
FPR-V4
4800
2040
600,700,800
700-1000
10-20
95
450
FPR-V6
6000
2550
600,700,800
700-1000
10-20
95
540
FPR-V7
7200
3060
600,700,800
700-1000
10-20
95
630
FPR-V8
8400
3570
600,700,800
700-1000
10-20
95
720
FPR-V9
9600
4080
600,700,800
700-1000
10-20
95
810
FPR-V10
10800
4590
600,700,800
700-1000
10-20
95
900
FPR-V12
12000
5100
600,700,800
700-1000
10-20
95
990
FPR-V13
13200
5610
600,700,800
700-1000
10-20
95
1080
FPR-V14
14400
6120
600,700,800
700-1000
10-20
95
1170
FPR-V15
15600
6630
600,700,800
700-1000
10-20
95
1260
FPR-V16
16800
7140
600,700,800
700-1000
10-20
95
1350
FPR-V18
18000
7650
600,700,800
700-1000
10-20
95
1440
FPR-V19
19200
8160
600,700,800
700-1000
10-20
95
1530
FPR-V20
20400
8670
600,700,800
700-1000
10-20
95
1620
Details Image
Control Box
Side Links
Motor

Roller

transfer bags


adjustable height

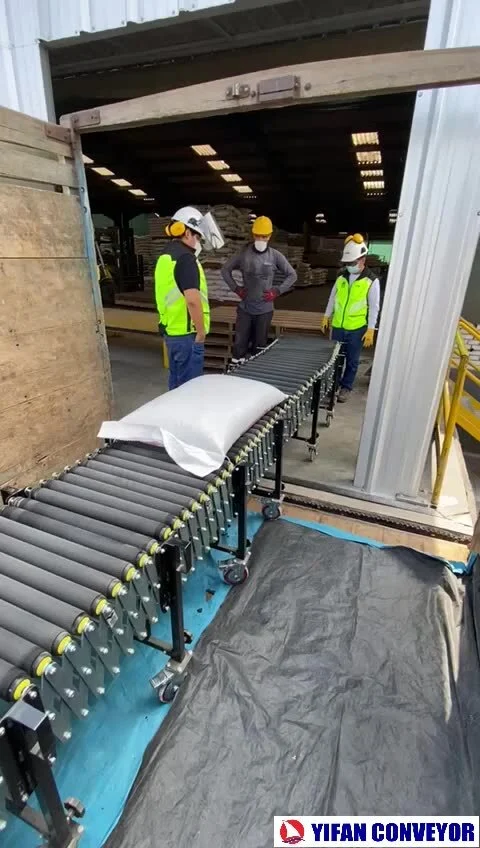

Successful Project



Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service?
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
