Part 1 Inclined Belt Conveyor 700-2500mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity Part 2 6.9m extendable skate wheel conveyor 700-1000mm adjustable height 600mm effective width 40kg/m load capacity
YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
Factory wholesale dockless truck loading conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
MOQ:
50KG
Model:
Vertical Conveyor
Load Capacity:
TLC-G600
Certification:
Customized logo (Min. Order: 3 Sets),Customized packaging (Min. Order: 3 Sets),Graphic customization (Min. Order: 3 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
Power:2.2 KW
Dimension(L*W*H):L4700*W600*H700/2500 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):50 kg
Belt Material:600mm anti-skiding green PVC belt
Caster:6" heavy duty swivel lockable PU casters
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Packing Size:L4900*W1240*H1625mm,850KGS
Motor Power:1.5kw,2.2kw
Table Width:800mm
Adjustable Speed:10-20m/min
Loading Height:2500mm
Discharge Height:700mm
Video Description
Product Overview

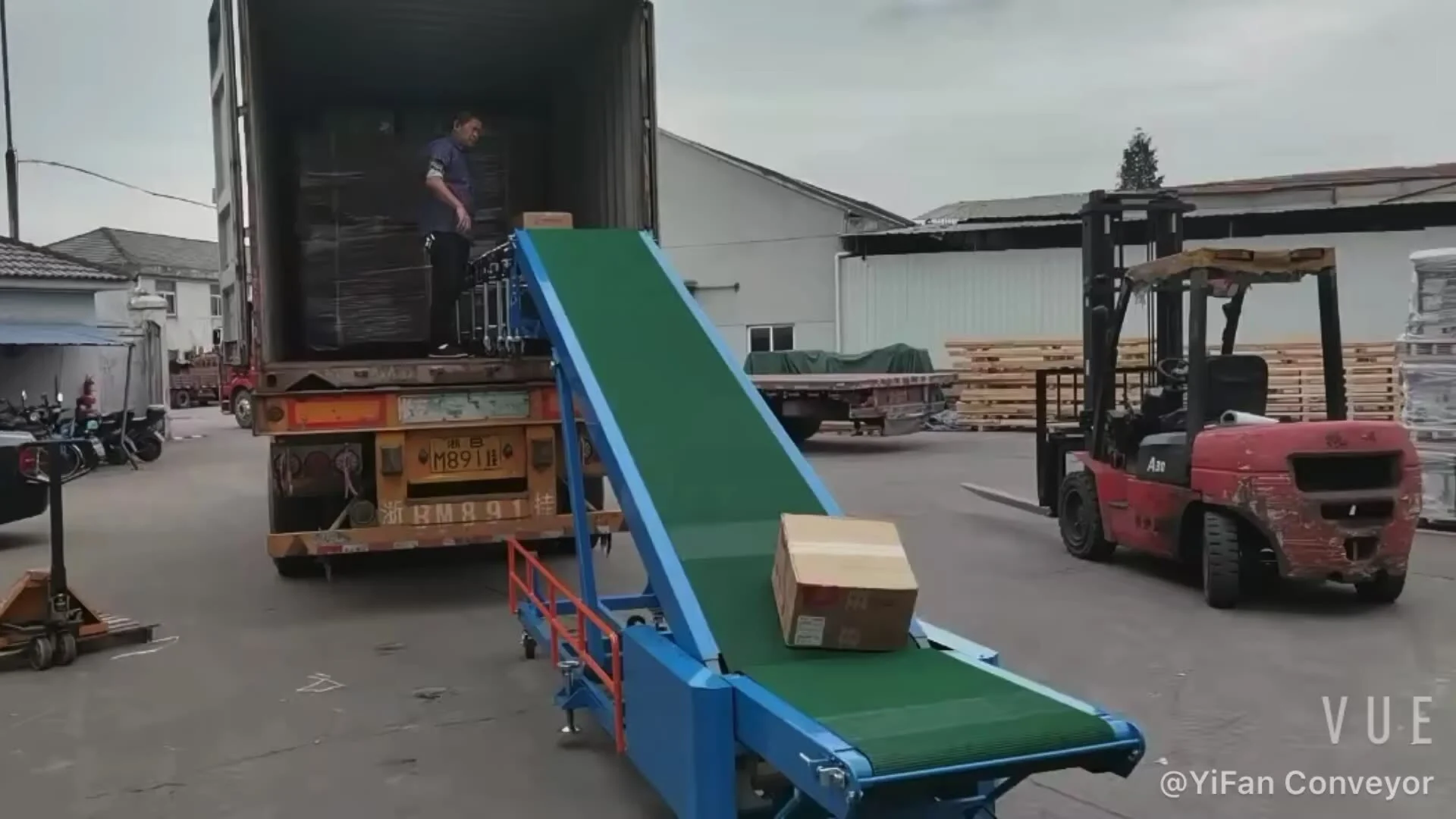

TLC-G600 TRUCK LOADING CONVEYOR
Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.The Truck Loading Conveyor is consist of two parts: Front Flexible Tongue and Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.
Model List | ||||||||||||||
Model | Belt Width (mm) | L1(mm) | L2(mm) | L3(mm) | L(mm) | H1(mm) | H2(mm) | |||||||
TLC-G600 | 600 | 900 | 3700 | 2200 | 6900 | 700 | 700-2500 | |||||||
TLC-G800 | 800 | 900 | 3700 | 2200 | 6900 | 700 | 700-2500 | |||||||
Details Images
With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
Control panel covered by a lockable door
Flexible conveyor bracket and main conveyor are joint by screws
Mobile on lockable swivel casters
Screw lift system
With two side guards
Belt tighten system
PVC anti-skiding belt
Lock the foot to be more stable when rise up
Successful Project
2012 Project In Mombasa,Kenya
Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor
We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600
Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600
Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
2016 Project In Kenya Cartons loading unloading container/trucks/trailers
Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
2016 Project In Kenya Bags stacking mobile belt conveyor
Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
Packing and Shipping
One 20ft container can load 2nos of TLC-G600
One 40ft container can load 4nos of TLC-G600
Installation Instructions
Similar Products
TLC-G600
TLC-S600
TLC-F600
TLC-600
TLC-W800
TLC-L600
TLC-E600
TLC-600
CBLC-600
Company Profile
FAQ
Please feel free to contact us at sales@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
Ningbo YiFan Conveyor Equipment Co.，Ltd is familiar with the sales network in conveyor manufacturer area. It contributes to the highly efficient loading/unloading logistics sorting and conveying. conveyor manufacturer are varied and can be customized. It contributes to the highly efficient loading/unloading logistics sorting and conveying.
