Factory supply reliable quality pvc telescopic belt conveyor splicing machine

这里可以自定义设置
Factory supply reliable quality pvc telescopic belt conveyor splicing machine
B站不支持收货地址
B站不支持库存规格
Type
SLAT CONVEYOR,Other
Load Capacity
50KG
Model Number
FTBC-4S-6/12-800
shipping
Sea freight
Customization
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
Power:Other
Dimension(L*W*H):L6000/12000*W600*H950 mm
Warranty:1 Year
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):3500 kg
Belt Material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Packing Details:L6100*W1400*H1000mm,4000KGS
Motor Power:0.75kw,2.2kw
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
Video Description
Product Overview

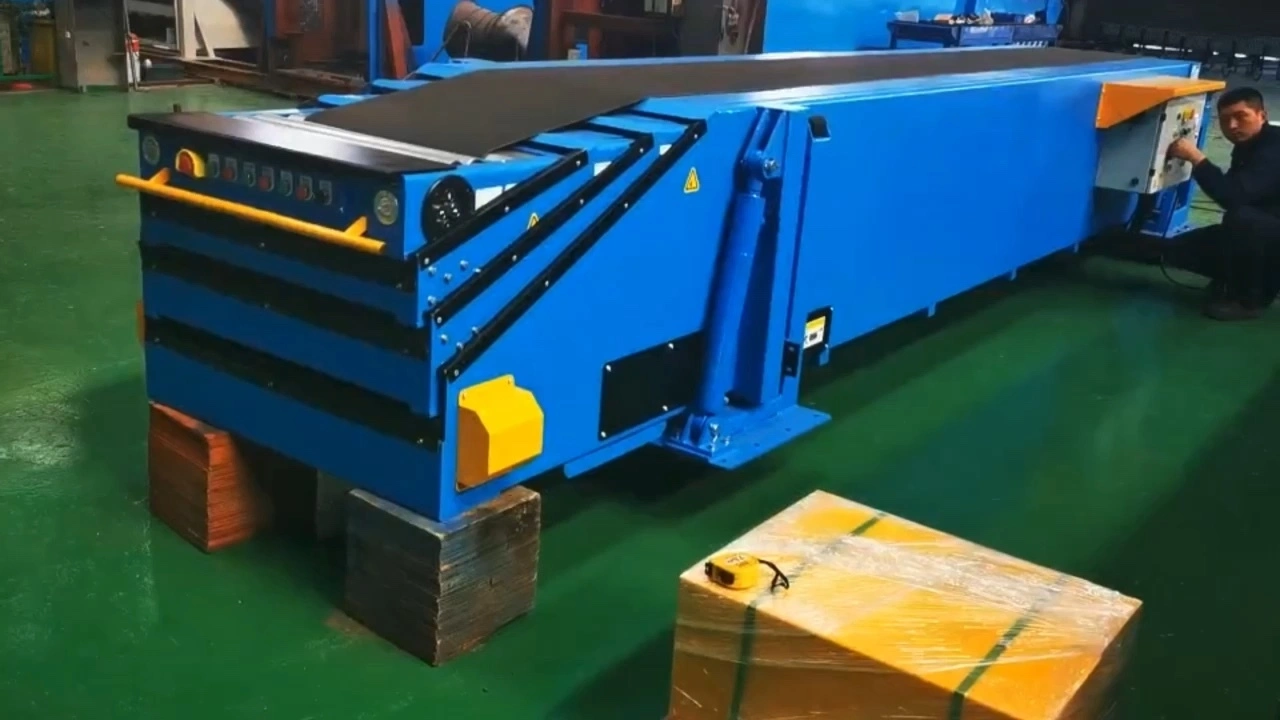

Telescopic Belt Conveyor (Model: FTBC-4S-6/12-800)

Features:
1.The telescopic belt conveyor is mainly composed of fixed part, movable part, synchronous telescopic thrust mechanism, belt conveyor mechanism, protective rod mechanism and control system. The fixed part and movable part are made of manganese steel with a thickness of 6 mm / 5 mm.

2.The fore end shall be rigidly constructed to withstand the impact load during loading and unloading of luggage. The length should not be less than 300 mm (gravity roller conveyor inside the telescopic machine), should be zinc coated on the surface of the drum.

3.It has function of expanding while conveying the goods to improve the conveying efficiency and has the point to point working mode.

4.The front button has a protective baffle, which can effectively protect the button and prevent the button from being damaged when the belt conveyor is expanding and contracting.

5.The front end of the telescopic machine is equipped with anti-collision rod.

6.The front end should be equipped with LED lights to ensure the brightness of the truck during loading and unloading.
Technical Parameters
40ft Container Loading Unloading Telescopic Belt Conveyor
Fixed Length
6000mm
Extension
12000mm
Total Length
1000mm
Belt Spec
800mm width Siegling PVK belt, alligator clip jointing
Belt Top Height
900mm, can lift up to 2100mm
Operation Direction
forward & reverse
Load Capacity
50kg/m
Belt Driven Motor
3.0kw, SEW
Telescopic Motor
0.75kw, SEW
Hydraulic Power Pack
2.2kw
Machine Total Power
5.95 kw
Electric Control System
Siemens PLC intelligent controller
Main Electric Components
Schneider,including abnormal fault automatic detection alarm device
Telescopic Chain‍‍
Donghua, Hangzhou
Cable Carrier
Kruis
Standard‍‍ Color
BLUE, RAL5005
Power Cord Length
10m
Voltage
380V, three phase, 50Hz
More Type
Successful Project
Company Profile
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

The product plays a vital role in industrial applications. High-quality swivel braked castors are equipped to ensure the greatest safety. This product is cost-effective and has a prospective application. High-quality swivel braked castors are equipped to ensure the greatest safety.
