Fixed Length: 6000mm
Extension: 12000mm
Total Length: 18000mm
Belt Width: 600mm
Base Height: 950mm
Rise Up Height: 2100mm
Load Capacity: 50kg/m
Belt Running: 10-30m/min
Extending Speed: 10m/min
Motor Brand: SEW
YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
Factory supply reliable quality pvc telescopic belt conveyor splicing machine
5.0
Start Port:
Sea freight
Payment:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'SLAT CONVEYOR', 'sku_img': None, 'sku_id': '191284229:430360791;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'TBC-4S-6/12-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support, Spare parts
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
Power:Other
Dimension(L*W*H):L6000/12000*W600*H950 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Bearing, Gear, Pump, Gearbox, Frequency Inverter
Belt Material:PVK
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Packing Details:L6100*W1400*H1000mm,4000KGS
Motor Power:0.75kw,2.2kw
Belt Width:600mm,800mm
Belt Speed:10-30m/min
Boom Speed:10-12m/min
Conveyor Height:adjust by hydraulic
Load Capacity:50kg/m
Product Overview

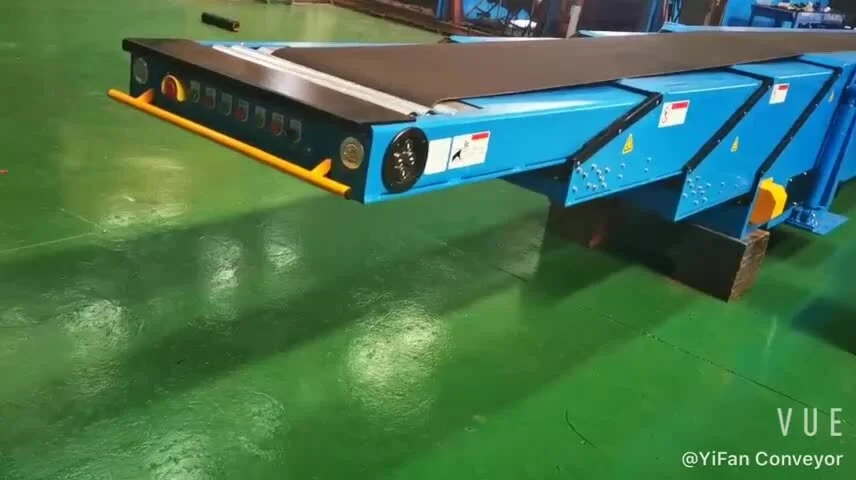

TELESCOPIC BELT CONVEYOR
Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.
Front Elevation
Left elevation
Right Elevation
Model List
Model | Belt Width (mm) | Fixed Length (mm) | Extended Length (mm) | Total Length (mm) | Base Height (mm) | Lift Height (mm) |
FTBC-4S-6/12-600 | 600 | 6000 | 12000 | 18000 | 900 | 2100 |
FTBC-4S-6/12-800 | 800 | 6000 | 12000 | 18000 | 900 | 2100 |
Details Image
Successful Project
Project in Bangladesh Tea Products Factory
Vertical lifting 60KG tea bags from 2nd floor to first floor and load directly into trucks.
The research for quality of the materials can be found in the whole production chain in Ningbo YiFan Conveyor Equipment Co.，Ltd. The product makes little noise when running.
conveyor manufacturer product quality has reached the advanced level in foreign countries. The product makes little noise when running.
