Factory direct sell small flexible steel roller conveyor for unloading
5.0
Start Port:
Sea freight
Payment:
1 - 10(Sets):15(days),11 - 20(Sets):20(days),21 - 50(Sets):30(days),>50(Sets):Negotiable(days)
MOQ:
[{'sku_name': '100KG/m', 'sku_img': None, 'sku_id': '100005813:-2;'}]
Model:
[{'sku_name': 'Gravity Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817515;'}]
Load Capacity:
[{'sku_name': 'FGR-H6-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Manufacturing Plant, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining, Advertising Company
After Warranty Service:Online support, Video technical support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Power:Other
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Online support
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Other
Weight (KG):300 kg
Extendable Length:2550-6000mm
Roller Width:600mm
Adjustable Height:700-1000mm
Roller Diameter:50mm
Load Capacity:100kg/m
Roller Material:galvanized steel roller
Roller Center Gap:Max.140mm
Side Links:5mm thickness galvanized curved join plates
Supporting Legs:32*32 outer tube with 30*30 inner tube
Caster:5'' swivel lockable caster
Product Overview

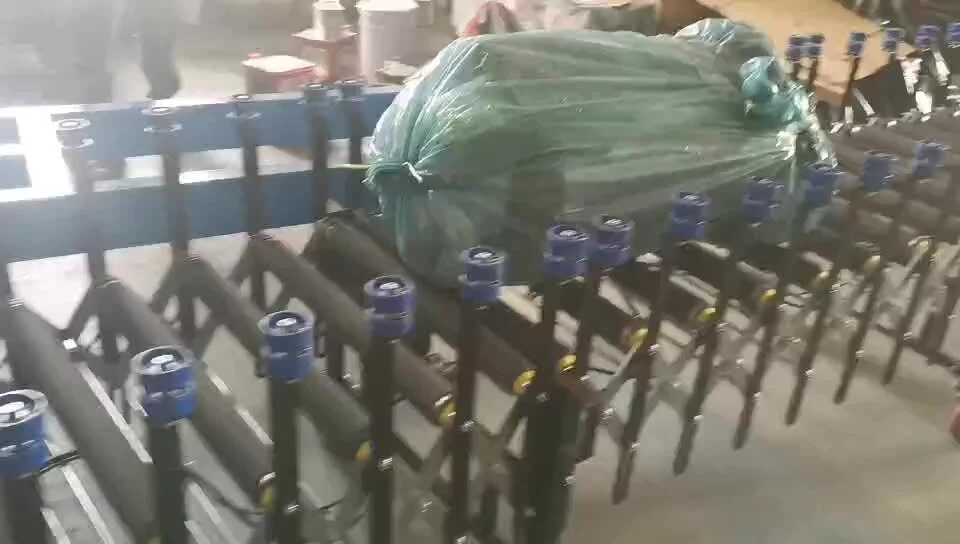

Extendable Gravity Unloading Roller Conveyor with side guide wheels
YiFan's Heavy Duty Flexible Gravity Steel Roller Conveyor is an robust type with load capacity of 100KG per meter.It can be expanded if you require a longer system or bent into curves or even compacted for better storage when not in use.Whats more,this conveyor is very easy to quick manoeuvre in or out of trucks for faster,safer,easier loading and unloading materials.
Specification
Roller Width: 600mm,800mm,1000mm
Adjustable Height: 700-1000mm
Extendable Length: 2550-6000mm
Load Capacity: 100kg/m
Roller Diameter: 50mm
Caster: 5" swivel lockable casters
Side Links: 5mm thickness galvanized joint plates
Model List
Model | Open Length (mm) | Close Length (mm) | Adjustable Height (mm) | Roller Width (mm) |
FGR-H2.4 | 2400 | 1020 | 700-1000 | 600,800,1000 |
FGR-H3.6 | 3600 | 1530 | 700-1000 | 600,800,1000 |
FGR-H4.8 | 4800 | 2040 | 700-1000 | 600,800,1000 |
FGR-H6 | 6000 | 2550 | 700-1000 | 600,800,1000 |
FGR-H7.2 | 7200 | 3060 | 700-1000 | 600,800,1000 |
FGR-H8.4 | 8400 | 3570 | 700-1000 | 600,800,1000 |
FGR-H9.6 | 9600 | 4080 | 700-1000 | 600,800,1000 |
FGR-H10.8 | 10800 | 4590 | 700-1000 | 600,800,1000 |
FGR-H12 | 12000 | 5100 | 700-1000 | 600,800,1000 |
Details Images
50mm galvanized steel rollers
Double H shape reinforced legs
Mobile on swivel casters with brake
With handle to help move the conveyor around
Optional two side guide wheels
Side guide wheels can be removed when not need
Conveyor in close condition
Close the conveyor to save space
Easy to take curve
Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
