Factory direct sales powered flexible belt conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 20(Sets):15(days),>20(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG/m', 'sku_img': None, 'sku_id': '100005813:-2;'}]
Load Capacity:
[{'sku_name': 'FPR-O6-600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 5 Sets),Customized packaging (Min. Order: 5 Sets),Graphic customization (Min. Order: 5 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining
After Warranty Service:Online support, Video technical support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:1.5 KW
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Online support
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Gear, Motor
Weight (KG):300 kg
Roller:600*50mm galvanized steel roller
Extendable Length:2300-6000mm
Adjustable Height:700-1000mm
Roller Center Gap:Max.130mm
Motor:90W,Zhongda brand
Side Links:3.5mm thickness galvanized curved join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Product Overview
FPR-O Powered Roller Conveyor

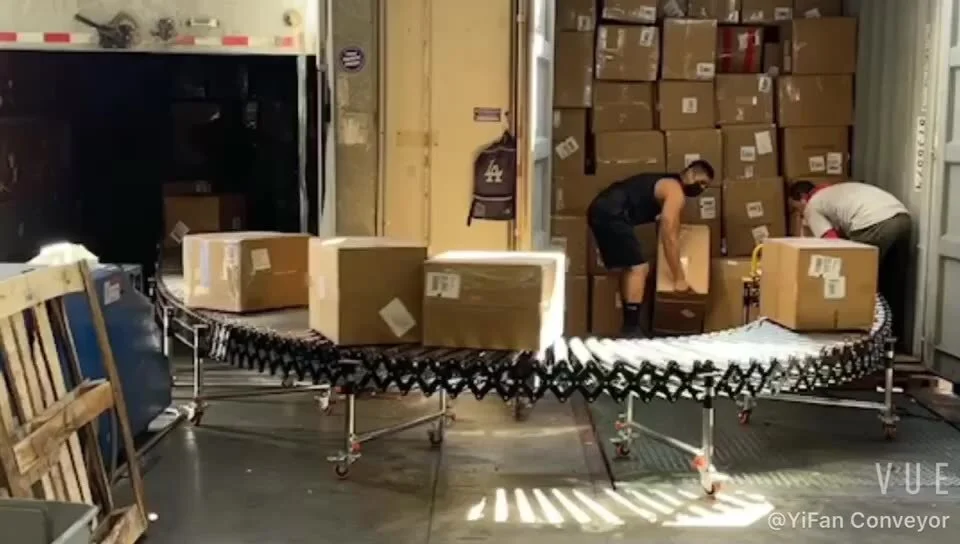

Expandable Powered Roller Conveyor, Motorized Flexible Roller Conveyor is an popular automatic roller conveyor with adjustable speed,height & direction.It is well qualified to intensively transport cartons,cases,boxes in the warehouse , workshop,factory,harbor,dock,etc.It can also be applied as packing line,temporary conveying line and goods distribution
line.
line.
Technical Parameters
Model | Open Length (mm) | Close Length (mm) | Width (mm) | AdjustableHeight (mm) | VariableSpeed (m/min) |
FPR-O4 | 4800 | 1480 | 600,800 | 700-1000 | 10-18 |
FPR-O6 | 6000 | 1300 | 600,800 | 700-1000 | 10-18 |
FPR-O7 | 7200 | 2760 | 600,800 | 700-1000 | 10-18 |
FPR-O8 | 8400 | 3220 | 600,800 | 700-1000 | 10-18 |
FPR-O9 | 9600 | 3680 | 600,800 | 700-1000 | 10-18 |
FPR-O10 | 10800 | 4140 | 600,800 | 700-1000 | 10-18 |
FPR-012 | 12000 | 4600 | 600,800 | 700-1000 | 10-18 |
FPR-O13 | 13200 | 5060 | 600,800 | 700-1000 | 10-18 |
Details Image
Each legs with handle for easy movement of the conveyor.
Each section with one motor guarantee enough power.
Use 5mm high quality O ring PU belt.
Galvanized side links with better load.
Independent control box for better operation.
Caster with brake for better movement and fixation.
Successful Project
Company Profile
FAQ
Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service？
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service？
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.
How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
At present, Ningbo YiFan Conveyor Equipment Co.，Ltd continues to develop in conveyor manufacturer industry. The product is characterized by low energy consumption.
Ningbo YiFan Conveyor Equipment Co.，Ltd's products can be delivered to everywhere in the world. The product is characterized by low energy consumption.
