Factory direct sale trucks loading and unloading belt conveyor1
5.0
Start Port:
Sea freight
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Vertical Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817511;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'TLC-L600', 'sku_img': None, 'sku_id': '3:-1;'}]
Lead_Time:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Certification:
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Showroom Location:None
Condition:New
Material:Carbon steel
Material Feature:Fire Resistant
Structure:Inclining belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V
Power:1.5kw,2.2kw
Warranty:1 Year
Width or Diameter:belt600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox
Weight (KG):600 kg
Belt Material:5mm thickness rough top PVC belt
Front Tongue:platform
Adjustable Speed:10-22m/min
Discharge Height:700mm
Motor Power:1.5kw,2.2kw
Control Panel:load/unload,up/down,stop,emergency stop
Caster:heavy duty PU castor with brake
Frame:carbon steel,paint blue
After Warranty Service:Video technical support, Online support, Spare parts
Local Service Location:None
After-sales Service Provided:Free spare parts
Certification:CE
Video Description
Product Overview

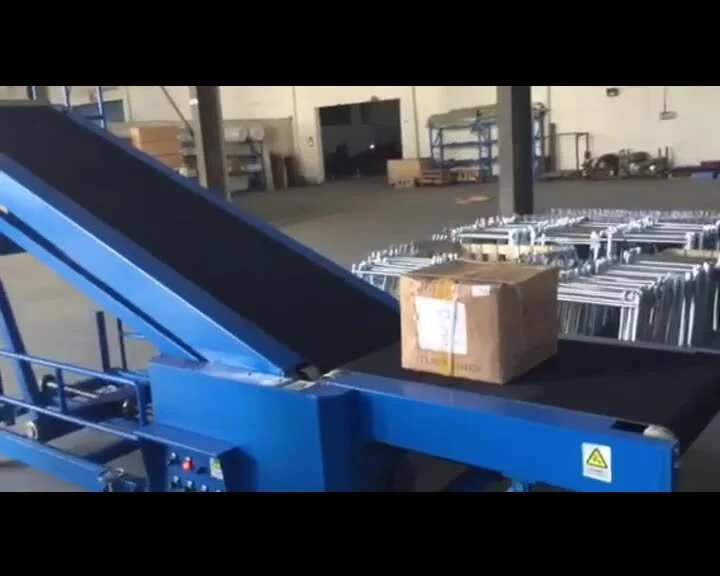

TRUCK LOADING CONVEYOR (TLC-L600)
with operator standing platform
Reference Drawing
Details Images
Up,Down,Belt Forward,Stop,Belt Reverse,Emergency Stop,Speed Kob buttons
The belt conveyor is lift up by mechnical screw lifting system.
The slave conveyor height is adjustable by hand.
Can lock the supporting foot before lifting conveyor to keep stable
The conveyor is easy to move around.
Successful Project
2012 Project In Mombasa,Kenya
Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR
The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor
We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600
Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600
Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
2016 Project In Kenya Cartons loading unloading container/trucks/trailers
Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
2016 Project In Kenya Bags stacking mobile belt conveyor
Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
Company Profile
YiFan Conveyor is an advanced conveyor manufacturer enterprise which is specializing in producing and designing Truck Loading Conveyor. It simple structure contributes to its easy use and easy installation.
The new material has been developed in Ningbo YiFan Conveyor Equipment Co.，Ltd to prepare conveyor manufacturer combining the excellent properties of Truck Loading Conveyor. It simple structure contributes to its easy use and easy installation.
