Factory direct sale robust furniture boxes cartons loading lorry conveyor-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

After Warranty Service:Video technical support, Online support

Local Service Location:None

Showroom Location:None

Condition:New

Material:Carbon Steel

Material Feature:Fire Resistant

Structure:Belt Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:220V/380V

Power:2.2 KW

Dimension(L*W*H):L6800*W800*H2500 mm

Certification:CE

Warranty:1 Year

After-sales Service Provided:Free spare parts

Width or Diameter:800mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter

Weight (KG):700 kg

Belt Width:800mm

Belt Material:5mm rough top black PVC belt

Adjustable Height:700-2500mm

Adjustable Speed:10-20m/min

Motor Power:0.75kw,2.2kw

Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop

Caster:250mm diameter nylon reinforced wheels

Packing Size:L6800*W800*H2500 mm

Others:With head anti-collision bar and LED Lights

Video Description

Product Overview

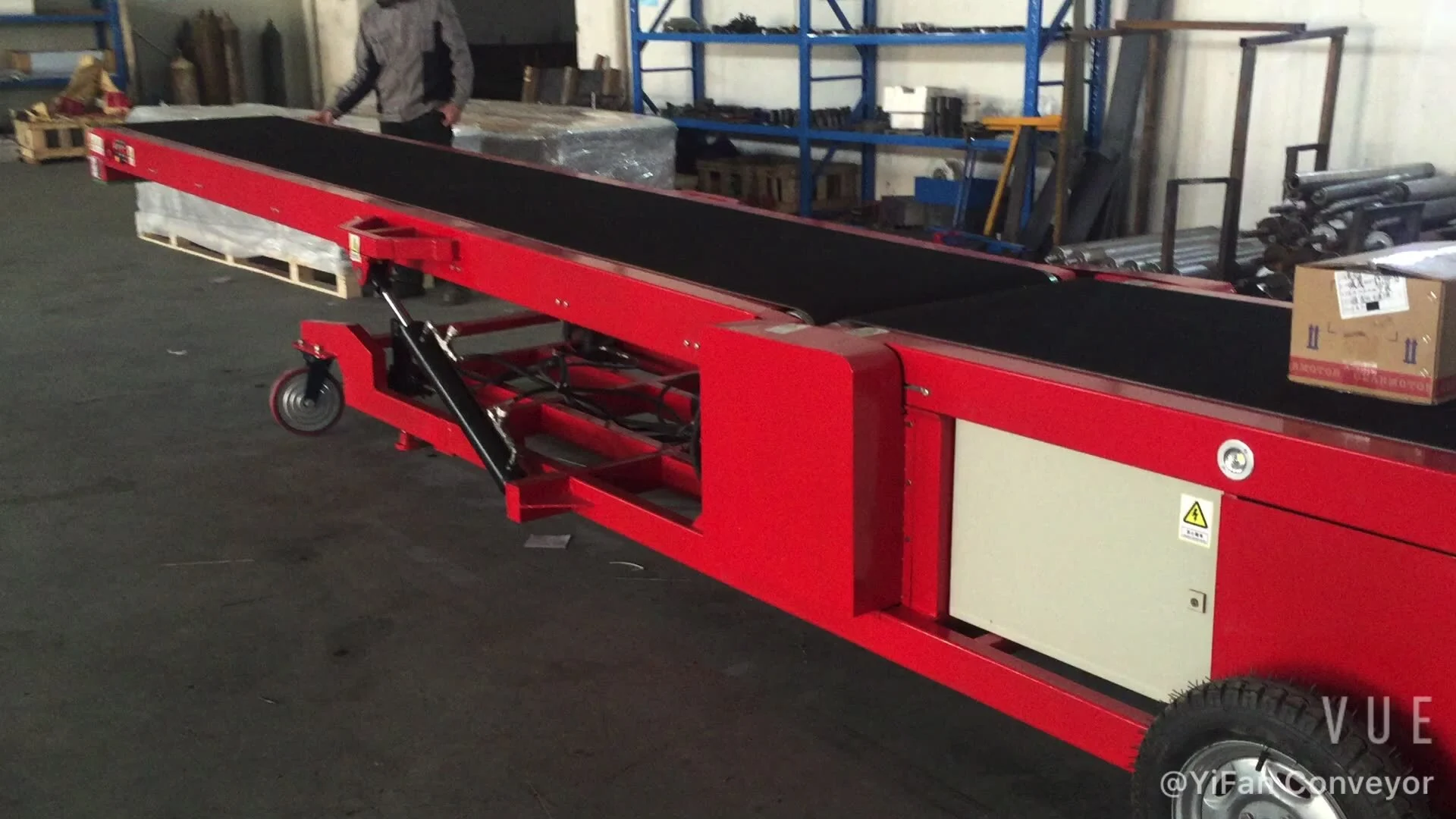

AUTO WALKING TRUCK LOADING CONVEYOR （TLC-W800）

YiFan loading conveyor manufacturer produces a number of different product series, including trailers/vans/trucks/containers unloading conveyor.Closely following the market trend, YiFan uses advanced production equipment and manufacturing technology to produce the truck loading and unloading conveyor. YiFan's TLC-W800 truck loading conveyor is an AUTO-WALKING loading conveyor. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.

Technical Parameters

Belt:5mm thick rough top black PVC belt Belt Driven Motor: 2.2kw, SEW Auto Walk Motor: 0.75kw, SEW Hydraulic Power Unit: 1.5kw Frequency Inverter: Delta Belt Running Speed: 10-20m/min Walking Speed: 12m/min Load Capacity: 50kg/m Frame Construction: carbon steel, paint Wheels: 250mm dia Nylon reinforced wheels With head anti-collision bar and LED Lights

Details Image

Main control panel

With Load,Unload,Up,Down,Stop,Emergency Stop,Light ON/OFF

Electric Box

The main electric elements is installed in the control box

Front head control panel

Load,Unload,Up,Down,Emergency Stop

Mobile on pneumatic tyre

The conveyor can auto move around in the warehouse

Successful Project

Customer Inspection

Company Profile

With this product, less work is required to be done by human labor, which enhances speed, accuracy, and efficiency. High-quality steel rollers ensure a smooth transfer. With all these features, this product will not bring evil consequences such as overcrowding, tantalizing machine-noises, and air pollution. High-quality steel rollers ensure a smooth transfer.
