Part 1
2m extendable powered roller conveyor
700-1000mm adjustable height
10-18m/min adjustable speed
independent control box
two way operation
Part 2
Inclined Belt Conveyor
800-2000mm adjustable height
loading & unloading
10-20m/min adjustable speed
50kg/m load capacity
Factory direct sale portable belt conveyor for loading vehicle
5.0
Start Port:
Sea freight
Payment:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Vertical Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817511;'}]
Load Capacity:
[{'sku_name': 'TLC-S600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 3 Sets),Customized packaging (Min. Order: 3 Sets),Graphic customization (Min. Order: 3 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V, 220V/380V
Power:2.2 KW
Dimension(L*W*H):L4600*W600*H800/2000 mm
Certification:CE
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):600 kg
Belt Width:600mm
Belt Material:black PVC belt
Front Tongue:2m powered roller
Adjustable Speed:10-20m/min
Adjustable Height:800-2000mm
Motor Power:1.5kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:5" heavy duty swivel lockable PU casters
Packing Size:L3600*W1100*H1500mm,650KGS
Video Description
Product Overview

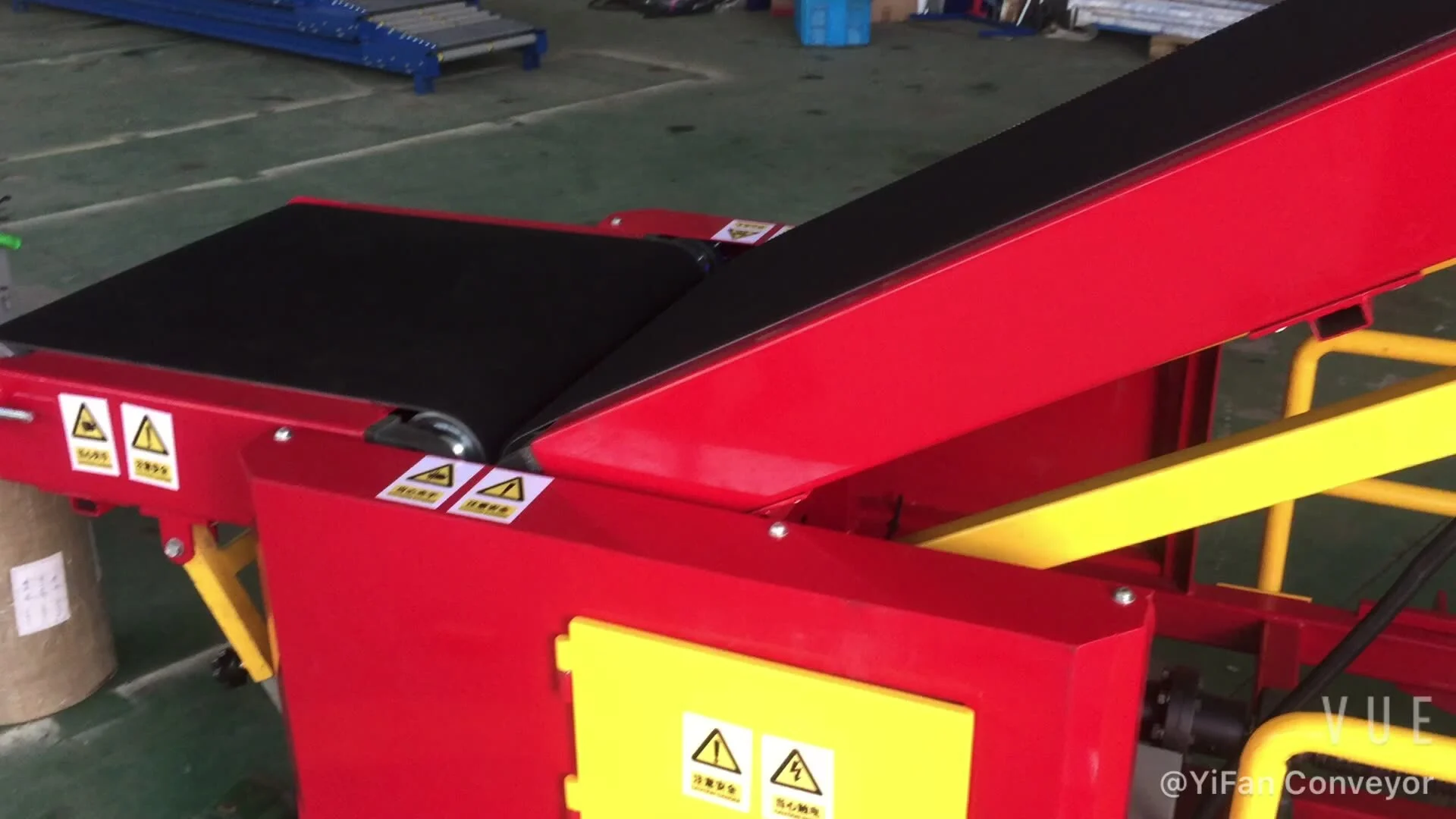

SMALL TRUCK LOADING CONVEYOR (TLC-S600)
Small truck loading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.
Front Elevation
Left elevation
Right Elevation
Model List | ||||||||||||||
Model | Belt Width (mm) | L1(mm) | L2(mm) | L3(mm) | L(mm) | H1(mm) | H2(mm) | |||||||
TLC-S600 | 600 | 700 | 2800 | 1000 | 2000 | 800 | 800-2000 | |||||||
TLC-S800 | 800 | 700 | 2800 | 1000 | 2000 | 800 | 800-2000 | |||||||
Details Images
With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
Control panel covered by a lockable door
Flexible conveyor bracket and main conveyor are joint by screws
Mobile on lockable swivel casters
Slave conveyor with adjustable height
With screw handle to fix the conveyor when lift up
With hole for add oil to the bearings
Front flexible conveyor with independent control box
With two side guide on the main body
Successful Project
Company Profile
This product can bring huge benefits for business owners, such as its incredible safety. It can ensure a decrease in work accidents. Its robust solid welded construction ensures its stability and safety when running.
This product has proved a great blessing to the workers. It makes human muscles relieved. Therefore, the work of the laborer has become much lighter. Its robust solid welded construction ensures its stability and safety when running.
