Part 1
4.2m extendable powered roller conveyor
700-1000mm adjustable height
10-18m/min adjustable speed
independent control box
two way operation
Part 2
Inclined Belt Conveyor
700-2500mm adjustable height
loading & unloading
10-20m/min adjustable speed
50kg/m load capacity
YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
Factories Load Conveyor Truck Load Unload Container Unloading Equipment
5.0
Start Port:
Sea freight
Payment:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Vertical Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817511;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'TLC-P600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 3 Sets),Customized packaging (Min. Order: 3 Sets),Graphic customization (Min. Order: 3 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Heat Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V, 220V/380V
Power:2.2 KW
Dimension(L*W*H):L4700*W600*H700/2500 mm
Certification:CE
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Motor, Gear, Gearbox, Frequency Inverter
Weight (KG):800 kg
Belt Width:600mm
Belt Material:anti-skiding green PVC belt
Front Tongue:4.2m powered roller
Adjustable Speed:10-20m/min
Adjustable Height:700-2500mm
Motor Power:1.5kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:6" heavy duty swivel lockable PU casters
Packing Size:L4900*W1240*H1625mm
Video Description
Product Overview
TLC-P600 TRUCK LOADING CONVEYOR
Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.The Truck Loading Conveyor is consist of two parts: Front Flexible Tongue and Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.
Front Elevation
Left elevation
Right Elevation
Model List | ||||||||||||||
Model | Belt Width (mm) | L1(mm) | L2(mm) | L3(mm) | L(mm) | H1(mm) | H2(mm) | |||||||
TLC-P600 | 600 | 900 | 3700 | 1800 | 4200 | 700 | 700-2500 | |||||||
TLC-P800 | 800 | 900 | 3700 | 1800 | 4200 | 700 | 700-2500 | |||||||
Details Images
With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
Control panel covered by a lockable door
Flexible conveyor bracket and main conveyor are joint by screws
Mobile on lockable swivel casters
Screw lift system
With two side guards
Belt tighten system
PVC anti-skiding belt
Lock the foot to be more stable when rise up
Successful Project

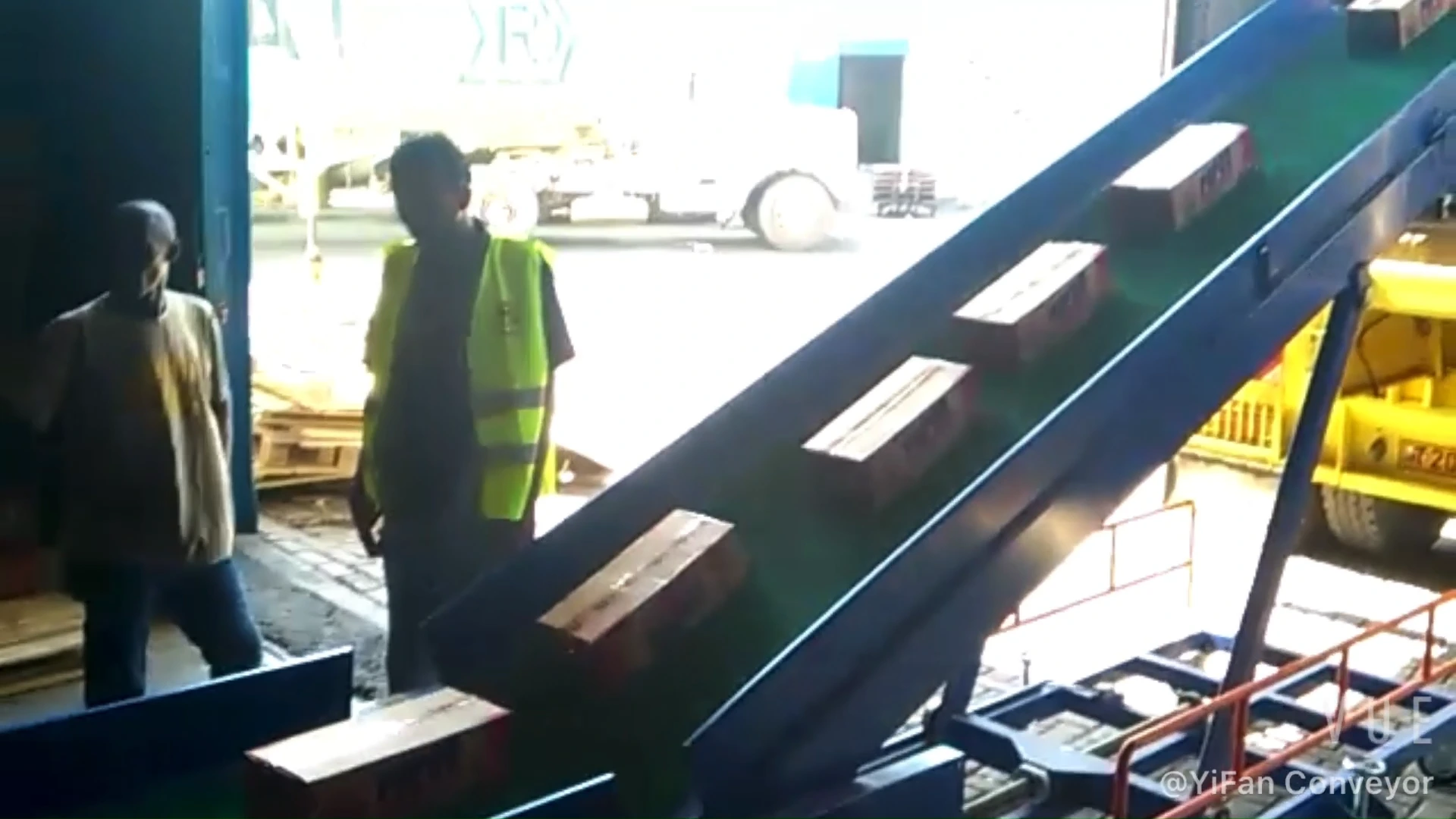

2012 Project In Mombasa,Kenya
Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR
The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor
We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600
Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600
Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
2016 Project In Kenya Cartons loading unloading container/trucks/trailers
Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
2016 Project In Kenya Bags stacking mobile belt conveyor
Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
Packing and Shipping
One 20ft container can load 2nos of TLC-P600
One 40ft container can load 4nos of TLC-P600
Installation Instructions
Similar Products
TLC-G600
TLC-S600
TLC-F600
TLC-600
TLC-W800
TLC-L600
TLC-E600
TLC-600
CBLC-600
Company Profile
FAQ
Please feel free to contact us at sales@yfconveyor.com if you have any other questions.
How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks
What is the MOQ?
YIFAN: 1 unit
Can your company provide OEM & ODM service
YIFAN: yes
Can you do customized conveyors?
YIFAN: yes
Do you offer installation service abroad?
YIFAN: yes
What is the payment terms?
YIFAN: T/T,LC,
What is the delivery port?
YIFAN: Ningbo/Shanghai
How many years have you been in this industry?
YIFAN: 10 years
What is the HS code?
YIFAN: 84283300,84283920,84283990
Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.
Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
