Expandable Mobile flexible Powered rubber coated Roller Conveyor big loading

这里可以自定义设置
Expandable Mobile flexible Powered rubber coated Roller Conveyor big loading
B站不支持收货地址
B站不支持库存规格
Model
SLAT CONVEYOR
MOQ
100KG
Start Port
Sea freight
Certification
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
Lead_Time
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Load Capacity
FPR-RV
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Showroom Location:None
Condition:New
Material:Carbon Steel,galvanized
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:China
Brand Name:YiFan
Power:750W
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
Width or Diameter:Size customization
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Frequency Inverter
Weight (KG):50 kg
Extendable Length:2750-6000mm
Adjustable Height:700-1000mm
Roller Width:600*50mm galvanized steel roller
Roller Center Gap:Max.140mm
Motor:90W,Zhongda brand
Side Links:5mm thickness galvanized join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
After Warranty Service:Video technical support
Video Description
Product Overview

V-BELT FLEXIBLE POWERED RUBBER COATED ROLLER CONVEYOR

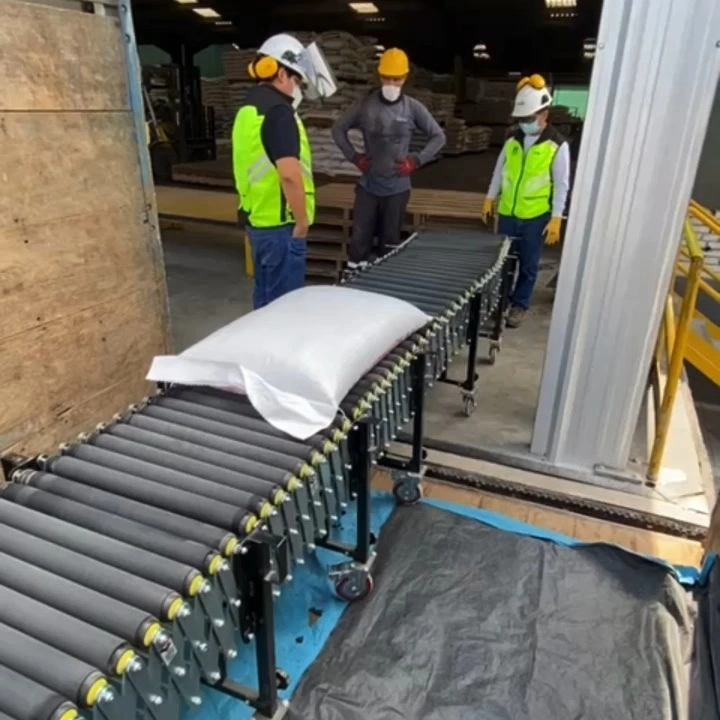

50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.
Specification Roller Width: 600mm or 800mm Adjustable Height: 700-1000mm Extendable Length: 2750-6000mm Load Capacity: 100kg/m Control Box: Forward/Stop/Reverse,Emergency Stop Voltage: 220V,1-Phase or 380V, 3-Phase Motor: 90W, Zhongda brand Caster: 5" swivel lockable casters Side Links: 5mm thickness galvanized join plates
Open Elevation
Bend Elevation
Close Elevation
Model List
Model
Open Length
(mm)
Close Length
(mm)
Adjustable Height
(mm)
Roller Width
(mm)
Motor Power
(w)
FPR-RV6
6000
2750
700-1000
600,800
450
FPR-RV7.2
7200
3300
700-1000
600,800
540
FPR-RV8.4
8400
3850
700-1000
600,800
630
FPR-RV9.6
9600
4400
700-1000
600,800
720
FPR-RV10.8
10800
4950
700-1000
600,800
810
FPR-RV12
12000
5500
700-1000
600,800
900
FPR-RV13.2
13200
6050
700-1000
600,800
990
FPR-RV14.4
14400
6600
700-1000
600,800
1080
FPR-RV15.6
15600
7150
700-1000
600,800
1170
FPR-RV16.8
16800
7700
700-1000
600,800
1260
FPR-RV18
18000
8250
700-1000
600,800
1350
FPR-RV19.2
19200
8800
700-1000
600,800
1440
FPR-RV20.4
20400
9350
700-1000
600,800
1530
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug.
Details Images
Reinforced double H shape legs with nice load capacity
With handle on the legs to help move the conveyor around
Adjustable Height: 700-1000mm or 800-1200mm
Each conveyor with one independent control box, Fwd/Stop/Rev
5mm thick heavy duty side links with good load capacity
Each conveyor leg with a min motor
Adopt rubber coated rollers to avoid items getting slippery
Rollers driven by high quality V belt
Mobile on 5" swivel casters with brakes
Packing and Shipping
Company Profile
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

By using this product, the process of production is significantly streamlined. In this way, the whole production efficiency has been improved. The product can drastically cut labor costs. With this product, people can get the same high quality while hiring fewer workers.
