    ETBC-4S-6/12-800

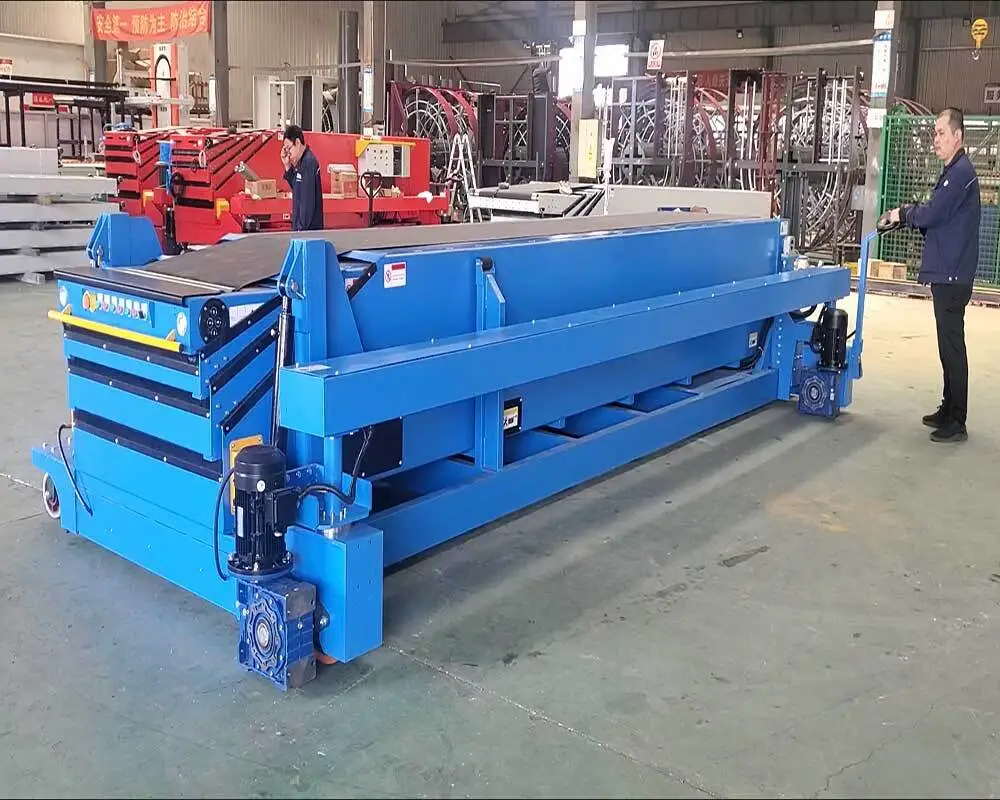

    ELECTRIC AUTO MOBILE TELESCOPIC LOADING UNLOADING BELT CONVEYOR

    Telescopic Belt Conveyor is automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

    The electirc mobile one is more convenient to move around after fnihsing loading unloading work.

    PRODUCT PARAMETERS

    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 8

    40ft Container Loading Unloading Telescopic Belt Conveyor

    Fixed Length

    6m

    Extension Length

    12m

    Total Length

    18m

    Belt Spec

    800mm width Siegling PVK belt, alligator clip jointing

    Belt Top Height

    900mm, can lift up to 2100mm

    Operation Direction

    forward & reverse

    Load Capacity

    50kg/m

    Belt Driven Motor

    3.0kw, SEW

    Telescopic Motor

    0.75kw, SEW

    Hydraulic Power Pack

    2.2kw

    Machine Total Power

    5.95 kw

    Electric Control System

    Siemens PLC intelligent controller

    Main Electric ComponentsSchneider,including abnormal fault automatic detection alarm device

    Telescopic Chain

    Donghua, Hangzhou

    Cable Carrier

    Kruis

    Standard Color

    BLUE, RAL5005

    Power Cord Length10m
    Standard ColorBlue, RAL 5015

    Voltage

    380V, three phase, 50Hz

    SHOW DETAILS

    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 9
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 10
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 11
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 12
    Font head with anti collision bar
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 13
    Control extend and retract on both side of the conveyor

    Application 1

    Loading 50KG cement bags from warehouse directly to trucks by Yifan's telescopic belt conveyor

    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 14
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 15
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 16
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 17

    Application 2

    Unloading cartons/boxes from trucks to warehouse

    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 18
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 19
    Electric Mobile Telescopic Belt Conveyor System | ETBC-4S-6/12-800 20
