    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Heat Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L4700*W600*H700/2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2021
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Gearbox, Frequency Inverter
    Weight (KG):600 kg
    Belt Width:600mm or 800mm
    Belt Material:anti-skiding green PVC belt
    Adjustable Speed:10-20m/min
    Adjustable Height:700-2500mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L4700*W1240*H700mm
    Video Description
    Product Overview

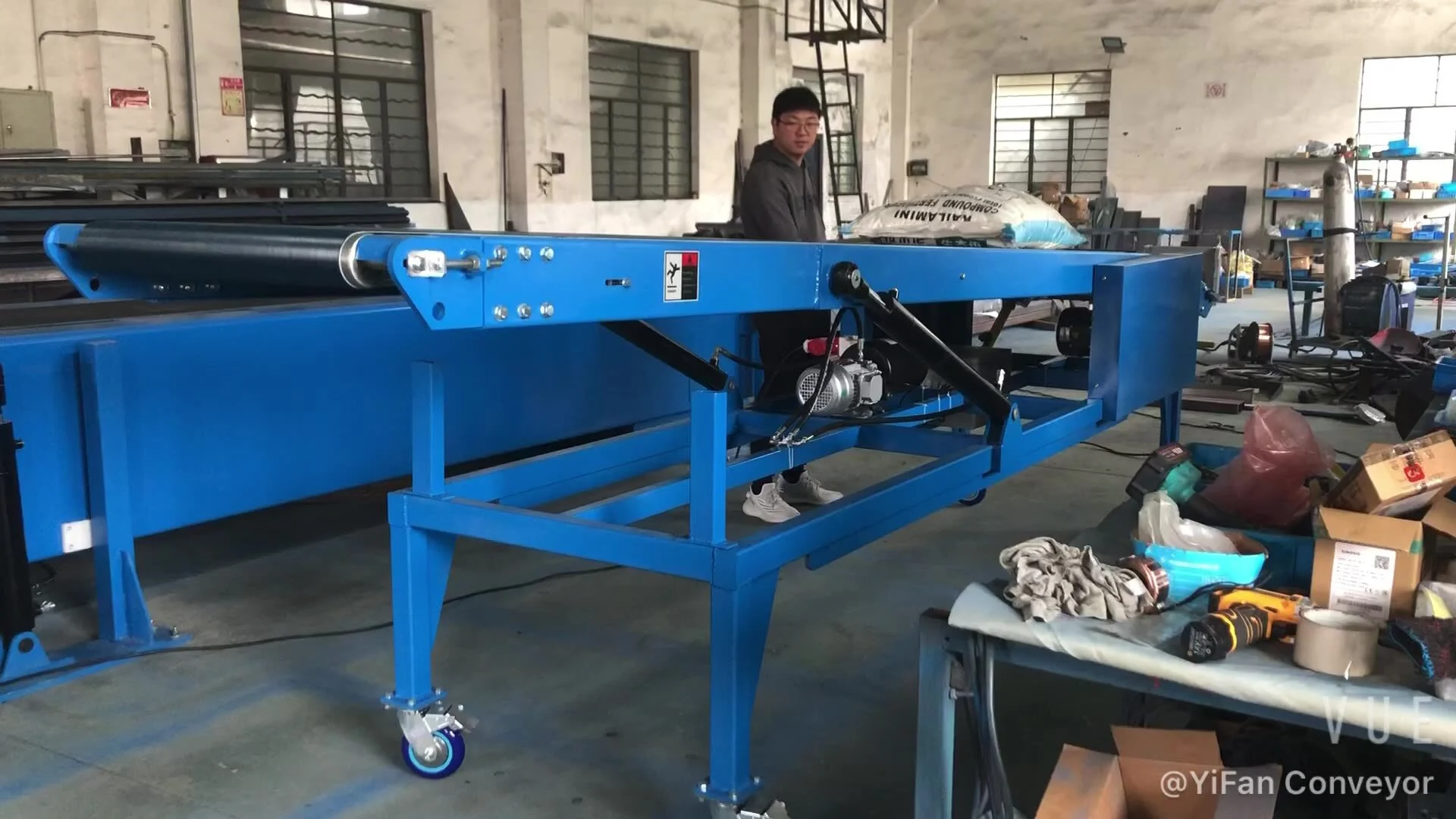

    TRUCK LOADING CONVEYOR (TLC-600)

    The Truck Loading Conveyor largely facilitates goods handling work and increase work efficiency.
    Dump truck loading conveyor that help load truck 7
    Dump truck loading conveyor that help load truck 9
    Dump truck loading conveyor that help load truck 11
    Dump truck loading conveyor that help load truck 13
    Dump truck loading conveyor that help load truck 15
    Technical Parameters
    Dump truck loading conveyor that help load truck 17
    Model
    Belt Width(mm)
    L1(mm)
    L2(mm)
    L3(mm)
    L(mm)
    H1(mm)
    H2(mm)
    TLC-600
    600
    900
    3700
    0
    0
    700
    700-2500
    TLC-800
    800
    900
    3700
    0
    0
    700
    700-2500
    Details Images
    Dump truck loading conveyor that help load truck 19




    Anti-skiding PVC belt
    600mm width
    3mm thickness
    rough top
    PVC material
    Dump truck loading conveyor that help load truck 21




    Adjustable Height
    The slave conveyor height is adjustable by hand.
    Dump truck loading conveyor that help load truck 23




    Hydraulic Lifting System
    The belt conveyor is lift up by hydraulic lifting system.
    Dump truck loading conveyor that help load truck 25





    Control Panel
    Up,Down,Belt Forward,Stop,Belt Reverse,Emergency Stop,Speed Kob buttons
    Dump truck loading conveyor that help load truck 27





    Mobile on wheels
    The conveyor is easy to move around.
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    Dump truck loading conveyor that help load truck 29
    Dump truck loading conveyor that help load truck 31
    Dump truck loading conveyor that help load truck 33
    Dump truck loading conveyor that help load truck 35

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    Dump truck loading conveyor that help load truck 37
    Dump truck loading conveyor that help load truck 39
    Dump truck loading conveyor that help load truck 41
    Dump truck loading conveyor that help load truck 43

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Dump truck loading conveyor that help load truck 45
    Dump truck loading conveyor that help load truck 47
    Dump truck loading conveyor that help load truck 49
    Dump truck loading conveyor that help load truck 51

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    Dump truck loading conveyor that help load truck 53
    Dump truck loading conveyor that help load truck 55
    Dump truck loading conveyor that help load truck 57
    Dump truck loading conveyor that help load truck 59

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    Dump truck loading conveyor that help load truck 61
    Dump truck loading conveyor that help load truck 63
    Dump truck loading conveyor that help load truck 65
    Dump truck loading conveyor that help load truck 67

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    Dump truck loading conveyor that help load truck 69
    Dump truck loading conveyor that help load truck 71
    Dump truck loading conveyor that help load truck 73
    Dump truck loading conveyor that help load truck 75
    Company Profile
    Dump truck loading conveyor that help load truck 77
    Dump truck loading conveyor that help load truck 79
    Dump truck loading conveyor that help load truck 81
    Dump truck loading conveyor that help load truck 83
    Dump truck loading conveyor that help load truck 85
    Dump truck loading conveyor that help load truck 87
    The use of this product helps the producer in many ways which tend to increase his or her production and income. High-quality swivel braked castors are equipped to ensure the greatest safety. This product can bring great relief to laborers owing to its ability to lessen pain and strain on human muscles. High-quality swivel braked castors are equipped to ensure the greatest safety.
