    Overview
    Quick Details
    Applicable Industries:Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail, Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Printing Shops, Construction works , Energy & Mining
    After Warranty Service:Online support, Video technical support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Roller Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:AC 110V/220V/380V, AC 110V/220V/380V
    Power:1.5 KW
    Dimension(L*W*H):L6000*W600*H700/1000 mm
    Warranty:1 Year
    After-sales Service Provided:Online support
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Gear, Motor
    Weight (KG):300 kg
    Extendable Length:2550-6000mm
    Adjustable Height:700-1000mm
    Roller:600*50mm galvanized steel roller
    Roller Center Gap:Max.140mm
    Motor:90W,Zhongda brand
    Side Links:5mm thickness galvanized curved join plates
    Adjustable Legs:32*32 outer tube with 30*30 inner tube
    Control Box:Forward/Stop/Reverse,Emergency Stop
    Caster:5'' swivel lockable caster
    Product Overview

    FPR-V6-600 Powered Roller Conveyor

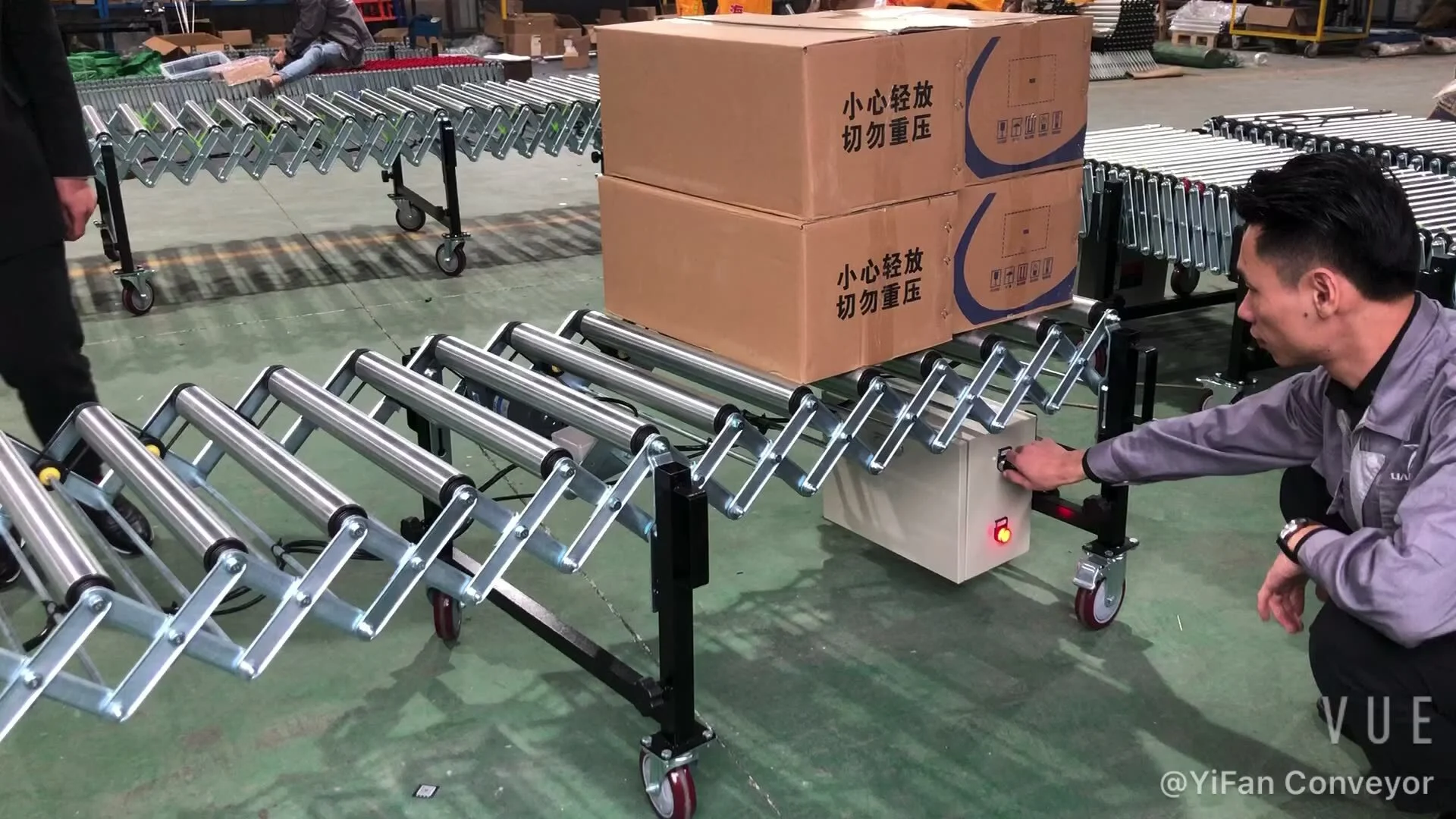

    Expandable Powered Roller Conveyor, Motorized Flexible Roller Conveyor is an popular automatic roller conveyor with adjustable speed,height & direction.It is well qualified to intensively transport cartons,cases,boxes in the warehouse , workshop,factory,harbor,dock,etc.It can also be applied as packing line,temporary conveying line and goods distribution
    line.
    Technical Parameters
    Customize powered flexible roller conveyor power 8
    Extendable Length
    2550-6000mm
    Adjustable Height
    700-1000mm
    Roller
    600*50mm galvanized steel roller
    Roller Center Gap
    Max.140mm
    Motor
    90W,Zhongda brand
    Side Links
    5mm thickness galvanized curved join plates
    Adjustable Legs
    32*32 outer tube with 30*30 inner tube
    Control Box
    Forward/Stop/Reverse,Emergency Stop
    Caster
    5'' swivel lockable caster
    Model
    Open Length
    (mm)
    Close Length
    (mm)
    Width
    (mm)
    AdjustableHeight
    (mm)
    VariableSpeed
    (m/min)
    Max.Load
    (kg/㎡)
    Motor Power (w)
    FPR-V4
    4800
    2040
    600,700,800
    700-1000
    10-20
    95
    450
    FPR-V6
    6000
    2550
    600,700,800
    700-1000
    10-20
    95
    540
    FPR-V7
    7200
    3060
    600,700,800
    700-1000
    10-20
    95
    630
    FPR-V8
    8400
    3570
    600,700,800
    700-1000
    10-20
    95
    720
    FPR-V9
    9600
    4080
    600,700,800
    700-1000
    10-20
    95
    810
    FPR-V10
    10800
    4590
    600,700,800
    700-1000
    10-20
    95
    900
    FPR-V12
    12000
    5100
    600,700,800
    700-1000
    10-20
    95
    990
    FPR-V13
    13200
    5610
    600,700,800
    700-1000
    10-20
    95
    1080
    FPR-V14
    14400
    6120
    600,700,800
    700-1000
    10-20
    95
    1170
    FPR-V15
    15600
    6630
    600,700,800
    700-1000
    10-20
    95
    1260
    FPR-V16
    16800
    7140
    600,700,800
    700-1000
    10-20
    95
    1350
    FPR-V18
    18000
    7650
    600,700,800
    700-1000
    10-20
    95
    1440
    FPR-V19
    19200
    8160
    600,700,800
    700-1000
    10-20
    95
    1530
    FPR-V20
    20400
    8670
    600,700,800
    700-1000
    10-20
    95
    1620
    Customize powered flexible roller conveyor power 10
    Customize powered flexible roller conveyor power 12
    Details Image
    Customize powered flexible roller conveyor power 14
    Control Box
    Customize powered flexible roller conveyor power 16
    Side Links
    Customize powered flexible roller conveyor power 18
    Motor
    Customize powered flexible roller conveyor power 20

    Roller

    Customize powered flexible roller conveyor power 22

    transfer bags


    Customize powered flexible roller conveyor power 24

    adjustable height

    Successful Project
    Customize powered flexible roller conveyor power 26

    Customize powered flexible roller conveyor power 28

    Customize powered flexible roller conveyor power 30

    Company Profile
    Customize powered flexible roller conveyor power 32
    Customize powered flexible roller conveyor power 34
    Customize powered flexible roller conveyor power 36
    Customize powered flexible roller conveyor power 38
    Customize powered flexible roller conveyor power 40
    Customize powered flexible roller conveyor power 42
    FAQ
    Please feel free to contact us at sales02@yfconveyor.com if you have any other questions.
    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service?
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry.

    How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    There will be a cut in the payment of labor prices because the use of this product can replace manual labor. The utilization of high-quality raw materials ensures its chemical resistance. One of the biggest advantages in the use of this product is the considerable increase in the skill and productivity of laborers. The utilization of high-quality raw materials ensures its chemical resistance.
