Container truck load unload powered unloading conveyor roller-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Roller Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:AC 110V/220V/380V

Power:1.5kw

Dimension(L*W*H):L6000*W600*H700/1000 mm

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Gear, Frequency Inverter

Weight (KG):250 kg

Roller:50mm galvanized steel roller

Roller Width:600mm or 800mm

Roller Center Gap:Max.130mm

Motor:90W

Adjustable Height:600-800mm

Extendable Length:2300-6000mm

Adjustable Legs:30*30 steel tubes

Side Links:3.5mm thickness galvanized curved join plates

Control Box:Forward/Stop/Reverse,Emergency Stop

Caster:5'' swivel lockable caster

Video Description

Product Overview

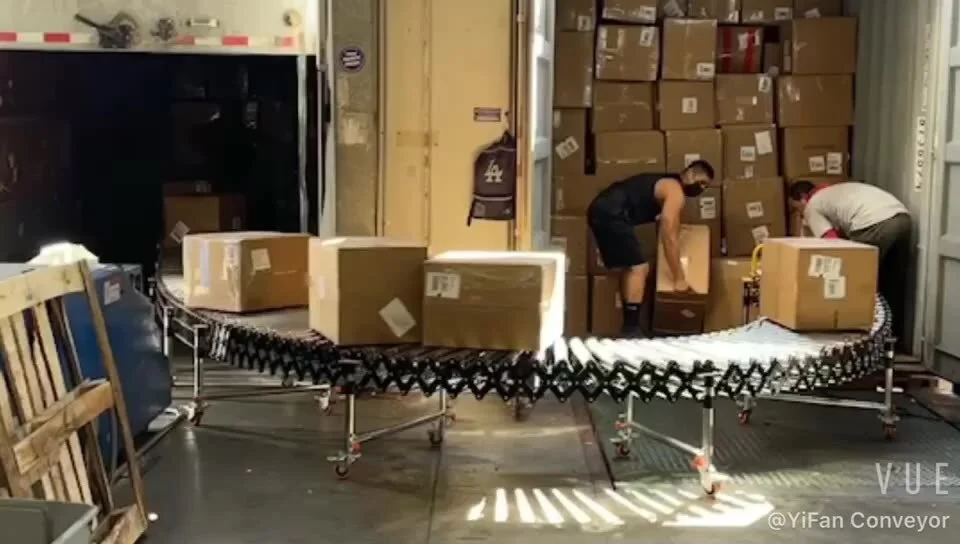

50KG LOAD O-BELT FLEXIBLE POWERED ROLLER CONVEYOR

50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.

Specification Roller Width: 600mm or 800mm Adjustable Height: 700-1000mm Extendable Length: 2300-6000mm Load Capacity: 50kg/m Control Box: Forward/Stop/Reverse,Emergency Stop Voltage: 220V,1-Phase or 380V, 3-Phase Motor: 90W, Zhongda brand Caster: 5" swivel lockable casters Side Links: 3.5mm thickness galvanized curved join plates

Details Images

Packing and Shipping

Model List

Model	Open Length (mm)	Close Length (mm)	Adjustable Height (mm)	Roller Width (mm)	Motor Power (w)
FPR-O6	6000	2300	600-800	600,800	450
FPR-O7.2	7200	2760	600-800	600,800	540
FPR-O8.4	8400	3220	600-800	600,800	630
FPR-O9.6	9600	3680	600-800	600,800	720
FPR-O10.8	10800	4140	600-800	600,800	810
FPR-O12	12000	4600	600-800	600,800	900
FPR-O13.2	13200	5060	600-800	600,800	990
FPR-O14.4	14400	5520	600-800	600,800	1080
FPR-O15.6	15600	5980	600-800	600,800	1170
FPR-O16.8	16800	6440	600-800	600,800	1260
FPR-O18	18000	6500	600-800	600,800	1350
FPR-O19.2	19200	6960	600-800	600,800	1440
FPR-O20.4	20400	7420	600-800	600,800	1530
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug.

How to choose YiFan's FPR ?

FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Tasks which are too heavy or too delicate for a human to do can be done easily by this product. It really makes people's jobs easier. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying. The use of this product helps revolutionize the production approach. Manufacturers can see from increased productivity and reduced labor costs. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying.
