China origin 40ft container loading and unloading conveyor-YiFan Conveyor

Overview

Quick Details

Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company

Showroom Location:None

Condition:New

Material:Carbon steel

Material Feature:Fire Resistant

Structure:Belt Conveyor

Place of Origin:Zhejiang, China

Brand Name:YiFan

Voltage:110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz

Power:2.2 KW

Dimension(L*W*H):L4700*W600*H700/2500 mm

Warranty:1 Year

Width or Diameter:600mm

Machinery Test Report:Not Available

Video outgoing-inspection:Provided

Marketing Type:Hot Product 2020

Warranty of core components:1 Year

Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter

Weight (KG):800 kg

Belt Material:600mm anti-skiding green PVC belt

Caster:6" heavy duty swivel lockable PU casters

Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop

Packing Size:L4900*W1240*H1625mm,850KGS

Motor Power:1.5kw,2.2kw

Table Width:800mm

Adjustable Speed:10-20m/min

Loading Height:2500mm

Discharge Height:700mm

After Warranty Service:Video technical support, Online support

Local Service Location:None

After-sales Service Provided:Free spare parts

Certification:CE

Video Description

Product Overview

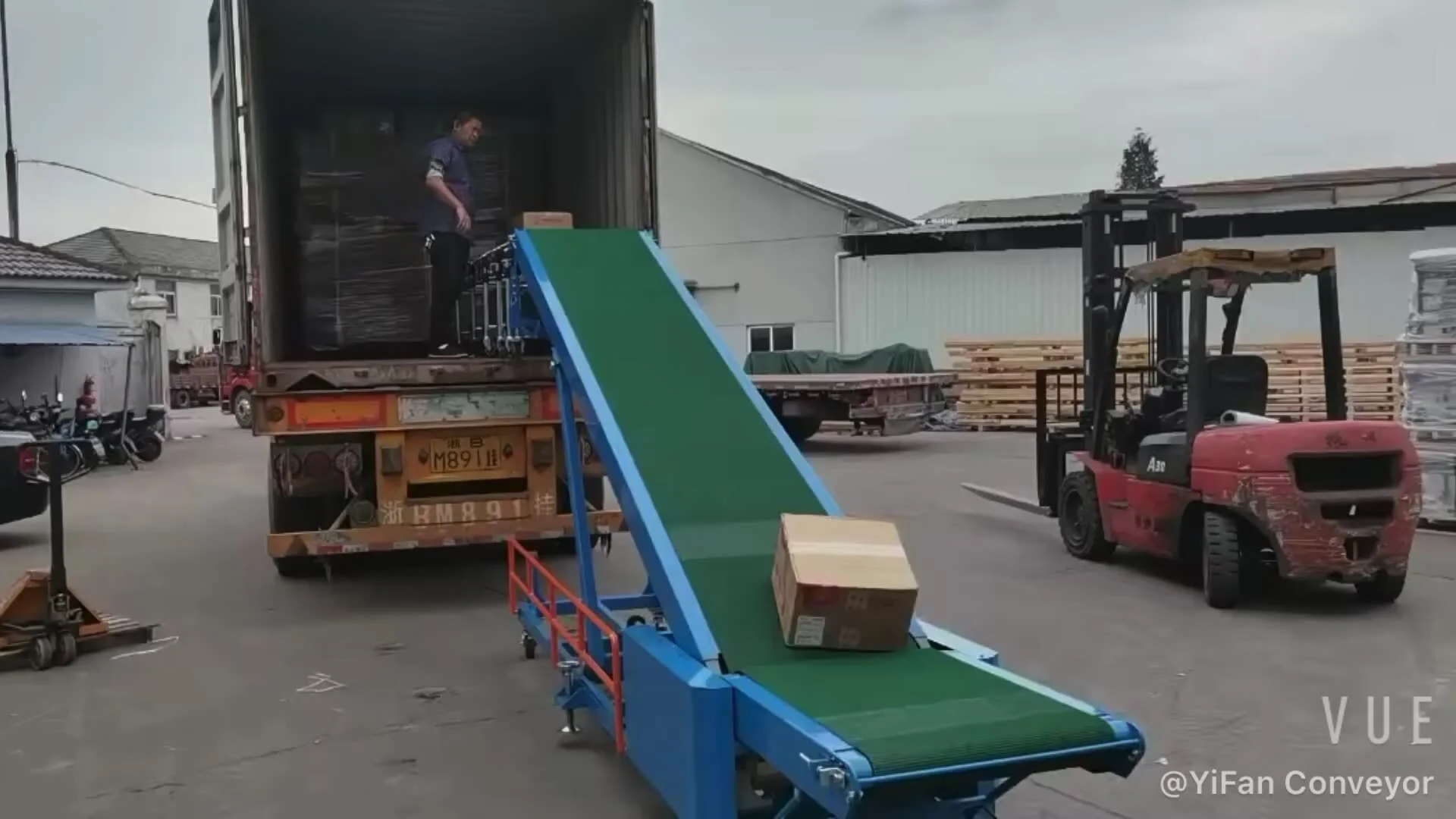

TLC-G600 TRUCK LOADING CONVEYOR

Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.The Truck Loading Conveyor is consist of two parts: Front Flexible Tongue and Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.

Part 1 Inclined Belt Conveyor 700-2500mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity Part 2 6.9m extendable skate wheel conveyor 700-1000mm adjustable height 600mm effective width 40kg/m load capacity

Model List
Model	Belt Width (mm)	L1(mm)	L2(mm)	L3(mm)	L(mm)	H1(mm)	H2(mm)
TLC-G600	600	900	3700	2200	6900	700	700-2500
TLC-G800	800	900	3700	2200	6900	700	700-2500

Details Images

With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons

Control panel covered by a lockable door

Flexible conveyor bracket and main conveyor are joint by screws

Mobile on lockable swivel casters

Screw lift system

With two side guards

Belt tighten system

PVC anti-skiding belt

Lock the foot to be more stable when rise up

Successful Project

2012 Project In Mombasa,Kenya

Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.

2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.

2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.

2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.

2016 Project In Kenya Cartons loading unloading container/trucks/trailers

Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags

2016 Project In Kenya Bags stacking mobile belt conveyor

Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags

Packing and Shipping

One 20ft container can load 2nos of TLC-G600

One 40ft container can load 4nos of TLC-G600

Installation Instructions

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

Ningbo YiFan Conveyor Equipment Co.，Ltd has built a high quality conveyor manufacturer production base to make sure the high quality and security of Truck Loading Conveyor. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying. Ningbo YiFan Conveyor Equipment Co.，Ltd has a large-scale standardized conveyor manufacturer production base covering an area of thousands of square meters. The rugged and heavy-duty self-tracking skate wheels can ensure a smooth conveying.
