    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L4600*W600*H800/2000 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):600 kg
    Belt Material:600mm anti-skiding green PVC belt
    Front Tongue:2m powered roller
    Loading Height:2000mm
    Adjustable Speed:10-20m/min
    Discharge Height:800mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:5" heavy duty swivel lockable PU casters
    Packing Size:L3600*W1100*H1500mm
    Video Description
    Product Overview

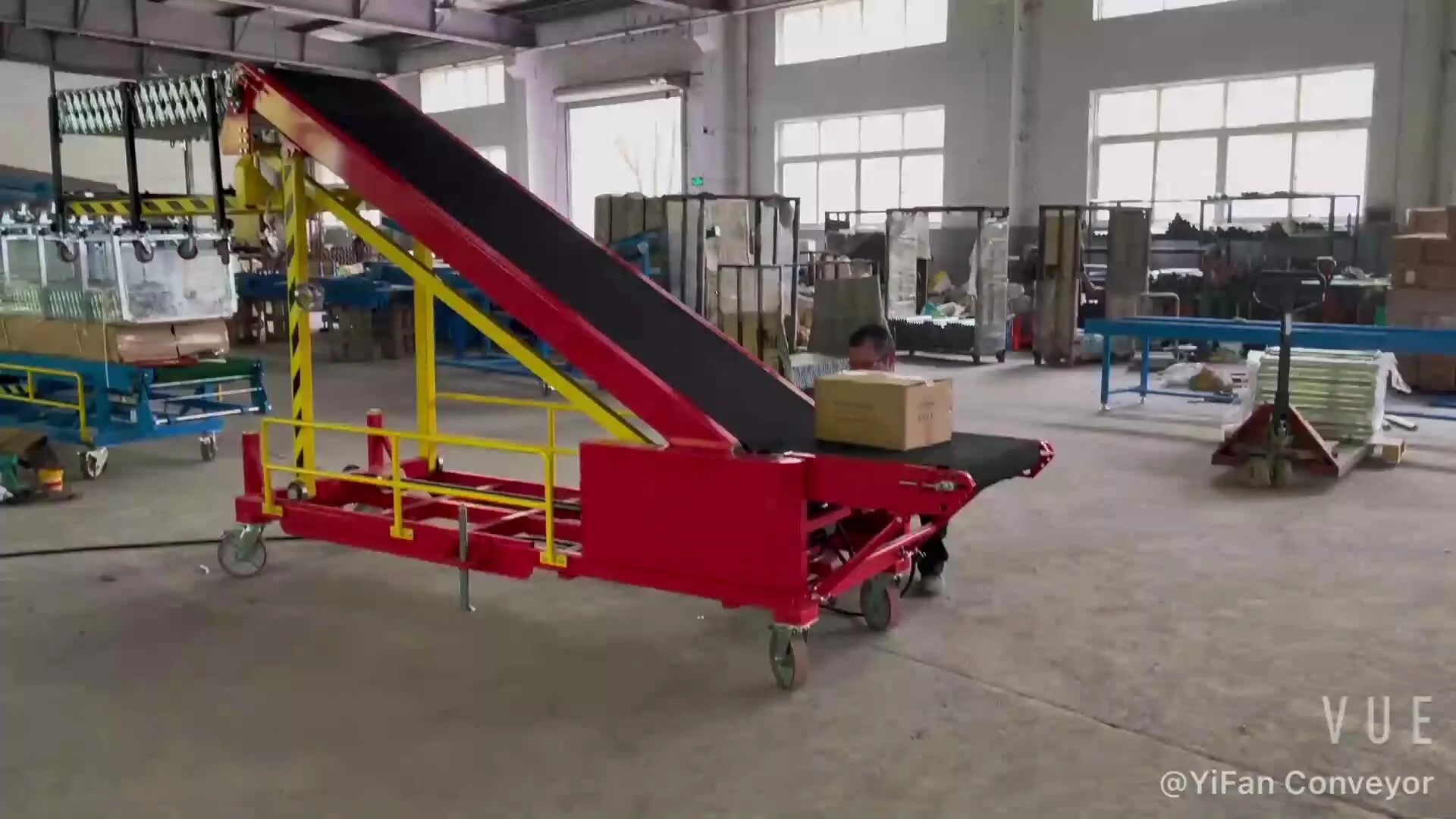

    SMALL TRUCK LOADING CONVEYOR (TLC-S600)

    Small truck loading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.
    Part 1 2m extendable powered roller conveyor 700-1000mm adjustable height 10-18m/min adjustable speed independent control box two way operation Part 2 Inclined Belt Conveyor 800-2000mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity
    China Manufacturers expandable flexible case belt roller conveyor 8
    China Manufacturers expandable flexible case belt roller conveyor 10
    Front Elevation
    China Manufacturers expandable flexible case belt roller conveyor 12
    Left elevation
    China Manufacturers expandable flexible case belt roller conveyor 14
    Right Elevation
    Model List
    Model
    Belt Width
    (mm)
    L1(mm)
    L2(mm)
    L3(mm)
    L(mm)
    H1(mm)
    H2(mm)
    TLC-S600
    600
    700
    2800
    1000
    2000
    800
    800-2000
    TLC-S800
    800
    700
    2800
    1000
    2000
    800
    800-2000
    China Manufacturers expandable flexible case belt roller conveyor 16
    Details Images
    China Manufacturers expandable flexible case belt roller conveyor 18
    With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
    China Manufacturers expandable flexible case belt roller conveyor 20
    Control panel covered by a lockable door
    China Manufacturers expandable flexible case belt roller conveyor 22
    Flexible conveyor bracket and main conveyor are joint by screws
    China Manufacturers expandable flexible case belt roller conveyor 24
    Mobile on lockable swivel casters
    China Manufacturers expandable flexible case belt roller conveyor 26
    Slave conveyor with adjustable height
    China Manufacturers expandable flexible case belt roller conveyor 28
    With screw handle to fix the conveyor when lift up
    China Manufacturers expandable flexible case belt roller conveyor 30
    With hole for add oil to the bearings
    China Manufacturers expandable flexible case belt roller conveyor 32
    Front flexible conveyor with independent control box
    China Manufacturers expandable flexible case belt roller conveyor 34
    With two side guide on the main body
    Successful Project
    China Manufacturers expandable flexible case belt roller conveyor 36
    China Manufacturers expandable flexible case belt roller conveyor 38
    China Manufacturers expandable flexible case belt roller conveyor 40
    China Manufacturers expandable flexible case belt roller conveyor 42
    China Manufacturers expandable flexible case belt roller conveyor 44
    China Manufacturers expandable flexible case belt roller conveyor 46
    China Manufacturers expandable flexible case belt roller conveyor 48
    China Manufacturers expandable flexible case belt roller conveyor 50
    Company Profile
    China Manufacturers expandable flexible case belt roller conveyor 52
    China Manufacturers expandable flexible case belt roller conveyor 54
    China Manufacturers expandable flexible case belt roller conveyor 56
    China Manufacturers expandable flexible case belt roller conveyor 58
    China Manufacturers expandable flexible case belt roller conveyor 60
    China Manufacturers expandable flexible case belt roller conveyor 62
    High working efficiency and labor-saving are the forte of the product. People like to use it to improve production income. With a high-quality powder coat finish, the product won't fade easily. By using this product, business owners will less likely to witness workplace accidents and workman’s compensation claims. With a high-quality powder coat finish, the product won't fade easily.
