China high quality container loading conveyor hydraulic loading belt conveyor

这里可以自定义设置
China high quality container loading conveyor hydraulic loading belt conveyor
B站不支持收货地址
B站不支持库存规格
Model
Vertical Conveyor,Other
MOQ
50KG
Payment
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
Start Port
Sea freight
Certification
Customized logo (Min. Order: 1 Sets),Graphic customization (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets)
Load Capacity
TLC-W800
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
After Warranty Service:Video technical support, Online support, Spare parts
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Inclining belt Conveyor
Place of Origin:China
Brand Name:YiFan
Voltage:220V/380V
Power:2.2kw
Dimension(L*W*H):L6800*W800*H2500 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:800mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
Weight (KG):700 kg
Belt Width:800mm
Belt Material:5mm rough top black PVC belt
Adjustable Height:700-2500mm
Adjustable Speed:10-20m/min
Motor Power:0.75kw,2.2kw
Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
Caster:250mm diameter nylon reinforced wheels
Packing Size:L6800*W800*H2500 mm
Others:With head anti-collision bar and LED Lights
Video Description
Product Overview

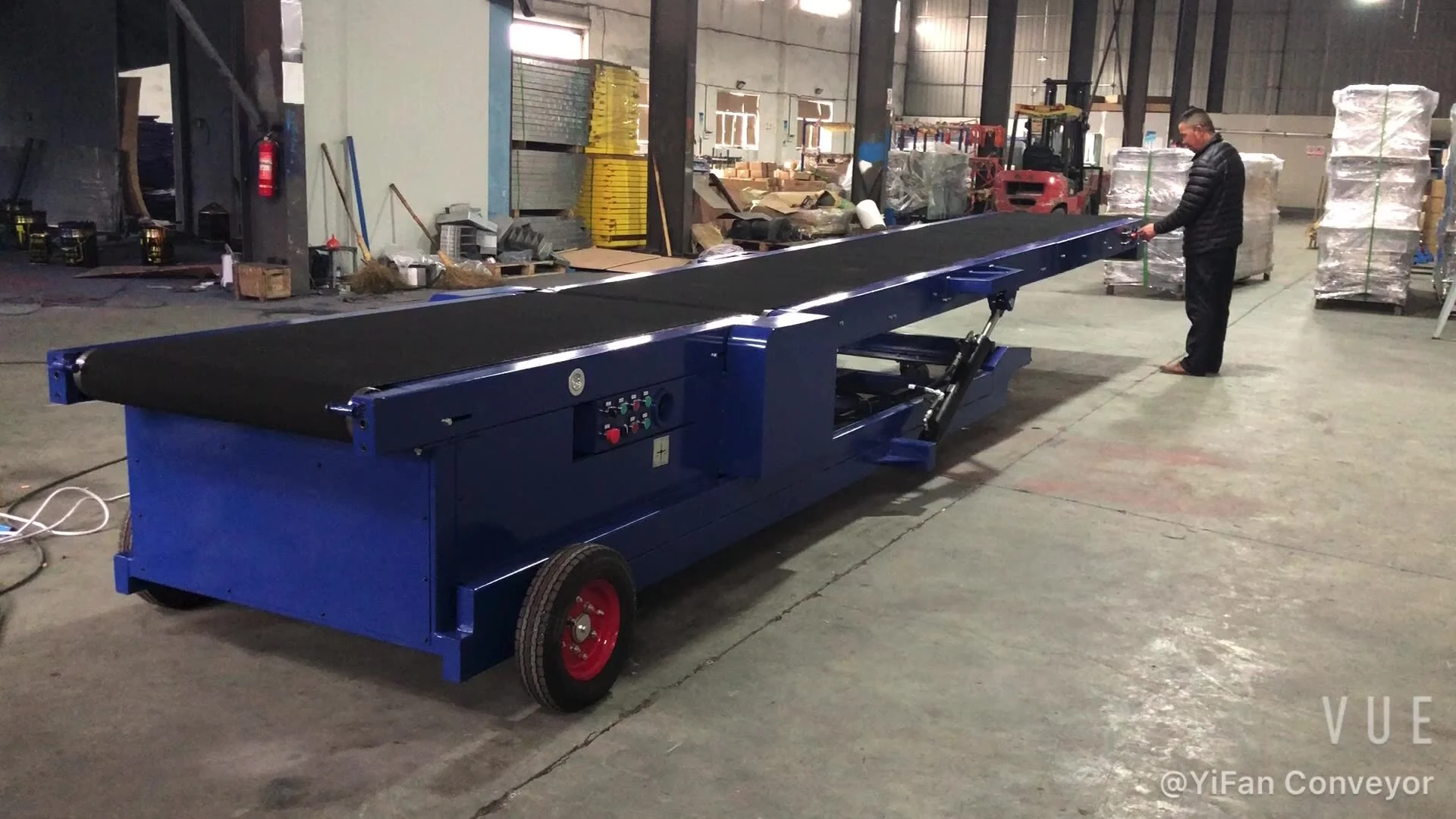

AUTO WALKING TRUCK LOADING CONVEYOR (TLC-W800)

YiFan loading conveyor manufacturer produces a number of different product series, including trailers/vans/trucks/containers unloading conveyor.Closely following the market trend, YiFan uses advanced production equipment and manufacturing technology to produce the truck loading and unloading conveyor. YiFan's TLC-W800 truck loading conveyor is an AUTO-WALKING loading conveyor. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.
Technical Parameters
Belt:5mm thick rough top black PVC belt Belt Driven Motor: 2.2kw, SEW Auto Walk Motor: 0.75kw, SEW Hydraulic Power Unit: 1.5kw Frequency Inverter: Delta Belt Running Speed: 10-20m/min Walking Speed: 12m/min Load Capacity: 50kg/m Frame Construction: carbon steel, paint Wheels: 250mm dia Nylon reinforced wheels With head anti-collision bar and LED Lights
Details Image




Main control panel
With Load,Unload,Up,Down,Stop,Emergency Stop,Light ON/OFF






Front head control panel
Load,Unload,Up,Down,Emergency Stop





Front auto stop safe bar
The conveyor will auto stop when touch some object





Mobile on pneumatic tyre
The conveyor can auto move around in the warehouse
Successful Project
Customer Inspection
Company Profile
In the decades of serving customers, Ningbo YiFan Conveyor Equipment Co.,Ltd has achieved outstanding growth performance. Its front head is equipped with an anti-collision bar. Ningbo YiFan Conveyor Equipment Co.,Ltd's customer service team has the right skills for managing customers’ needs. Its front head is equipped with an anti-collision bar.
