Cartons,bag,fruit,vegetable roller conveyor table
B站不支持收货地址
B站不支持库存规格
Type
Other
Load Capacity
50KG/m
Model Number
FPR-O
Lead Time
1 - 20(Sets):15(days),>20(Sets):Negotiable(days)
shipping
Sea freight
Customization
Customized logo (Min. Order: 1 Sets),Customized packaging (Min. Order: 1 Sets),Graphic customization (Min. Order: 5 Sets)
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Fire Resistant
Structure:Roller Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:AC 110V/220V/380V, AC 110V/220V/380V
Power:750W
Dimension(L*W*H):L6000*W600*H700/1000 mm
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2020
Warranty of core components:1 Year
Core Components:Motor, Gear, Frequency Inverter
Roller:600*50mm galvanized steel roller
Roller Center Gap:Max.130mm
Motor:90W,Zhongda brand
Side Links:3.5mm thickness galvanized curved join plates
Adjustable Legs:32*32 outer tube with 30*30 inner tube
Adjustable Height:700-1000mm
Control Box:Forward/Stop/Reverse,Emergency Stop
Caster:5'' swivel lockable caster
Extendable Length:2300-6000mm
Video Description
Product Overview

50KG Load O-belt Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height.Having enough power supply by one mini motor per section, it is well qualified to internsively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,docks,etc.
Specification Roller Width: 600mm or 800mm Adjustable Height: 700-1000mm Extendable Length: 2300-6000mm Load Capacity: 50kg/m Control Box: Forward/Stop/Reverse,Emergency Stop Voltage: 220V,1-Phase or 380V, 3-Phase Motor: 90W, Zhongda brand Caster: 5" swivel lockable casters Side Links: 3.5mm thickness galvanized curved join plates
Close Condition
Combine with belt conveyor
Connect to loading conveyor
Model List
Model
Open Length
(mm)
Close Length
(mm)
Adjustable Height
(mm)
Roller Width
(mm)
Motor Power
(w)
FPR-O6
6000
2300
700-1000
600,800
450
FPR-O7.2
7200
2760
700-1000
600,800
540
FPR-O8.4
8400
3220
700-1000
600,800
630
FPR-O9.6
9600
3680
700-1000
600,800
720
FPR-O10.8
10800
4140
700-1000
600,800
810
FPR-O12
12000
4600
700-1000
600,800
900
FPR-O13.2
13200
5060
700-1000
600,800
990
FPR-O14.4
14400
5520
700-1000
600,800
1080
FPR-O15.6
15600
5980
700-1000
600,800
1170
FPR-O16.8
16800
6440
700-1000
600,800
1260
FPR-O18
18000
6500
700-1000
600,800
1350
FPR-O19.2
19200
6960
700-1000
600,800
1440
FPR-O20.4
20400
7420
700-1000
600,800
1530
PS: for length above 10m, we make the conveyor into to parts which joint together by hooks and air plug.
Details Images
90W Zhongda motor
Control box with Fwd/Stop/Rev switch
Speed is adjustable by frequency inverter
Mobile on 5" swivel casters
50mm galvanized steel rollers driven by O belt
Conveyor height adjustable from 700mm to 1000mm
Easy to take a 180 degree curve
3.5mm thick reinforced side links
With handle on the legs to help move the conveyor around

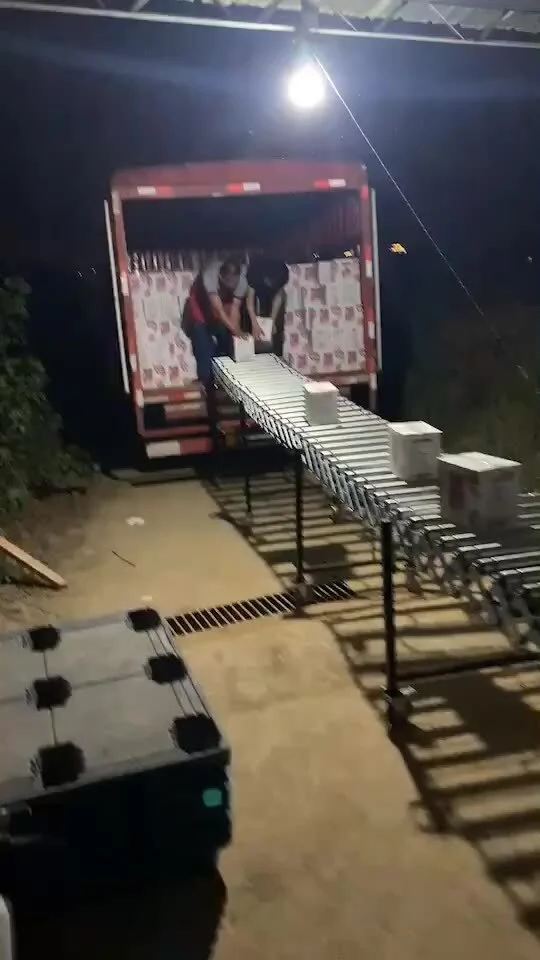

Application
Packing and Shipping
How to choose YiFan's FPR ?

Other Options

We can provide various kinds of flexible powered roller conveyor with different rollers material and structure
FPR-O with rubber coated rollers
FPR-O with PU coated rollers
FPR-RV with rubber coated rollers
FPR-O with side guide wheels
FPR-O with side stainless steel 201 rollers
FPR-O with stainless steel 304 rollers


How to joint 2 or more units together

Two or more YiFan's flexible powered roller conveyor can joint together quickly and easily by hoos and air plug
