    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, E-business Warehouse, Distribution Center, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Conveyor System
    Place of Origin:NINGBO,China
    Brand Name:YiFan
    Voltage:220V/380V
    Power:2.2 KW
    Dimension(L*W*H):Variable
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Provided
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Bearing
    Weight (KG):1000 kg
    Belt Width:600mm
    Belt Material:PVC
    Adjustable Height:850-1850mm
    Conveying Speed:10-20m/min
    Motor Power:1.5kw
    Hydraulic Unit:1.5kw
    Front Tongue:7.2m
    Video Description
    Product Description

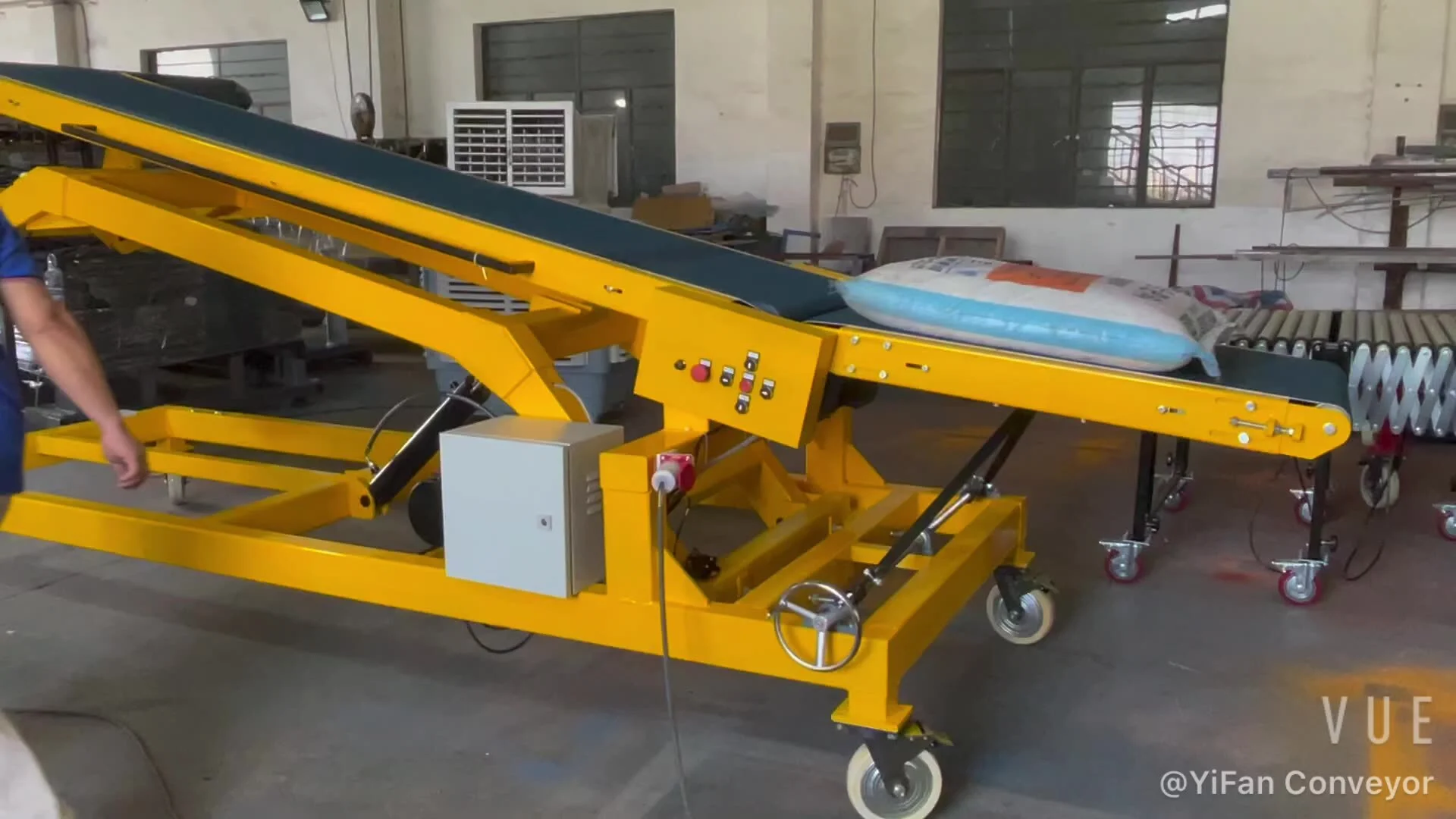

    AdjustableTruck Loading Belt Conveyor is one of the most popular lorry loaders.It is extremely flexible it and easy to use, good mobility. The truck loading belt conveyor is mainly composed of an motorized inclined belt conveyor and motorized flexible roller conveyor.The front end is a lifting inclinec belt conveyor, and the products are transported to the back end of the flexible roller conveyor through the belt. The whole process of products will be automatically transported, saving time and labor. The truck loading belt conveyor is also the most economical and convenient one in the truck loading conveyor,.
    Technical Parameters
    Belt Width
    600mm
    Load Capacity
    50kg/m
    Belt Type
    3mm thick rough top green PVC belt
    Belt Driven Motor
    1.5kw
    Adjustable Height
    850-2320mm
    Hydraulic Power Pack
    1.5kw
    Adjustable Speed
    10-20m/min
    Frequency Inverter
    Delta
    Main Electric Elements
    Schneider
    Caster
    D200mm heavy duty lockable swivel PU casters
    Frame Construction
    Carbon steel, powder coated in BLUE RAL 5015
    Power Supply
    220V, single phase,50Hz/380V,three phase,50Hz
    Details Image
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 8
    Control Panel: Emergency Stop, Revers, Up, Stop, Down, Forward
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 10
    Front tongue conveyor combined with inclined belt conveyor which can be removed if not needed.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 12
    Slave section can be adjusted manually.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 14
    With hydraulic power unit to adjust height.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 16
    200 diameter universal swivel PU castors with brake.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 18
    Strong enough frame.
    How to install it?
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 20
    1.First remove the roller conveyor and the front tongue frame.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 22
    2.Install screws at the joint of the front tongue frame.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 24
    3.Align the connecting port of the front tongue frame with the conveyor.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 26
    4.The front tongue frame is connected with the conveyor.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 28
    5.Place the closed Roller Conveyor on the installed bracket.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 30
    6.The hook on the roller conveyor is connected to the conveyor.
    Hot Products

    Flexible Power Roller Conveyor --O Belt.
    O Belt Flexible power roller conveyor is a kind of telescopic power automatic roller conveyor, the conveying speed and supporting leg height can be adjusted.Can be used for warehouse, workshop, factory, port, wharf and other flat bottom goods centralized transport.
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 32
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 34

    Flexible Power Roller Conveyor --V Belt.
    V Belt Flexible Motorized Roller Conveyor is more strong than O Belt type. Loading capacity is better than O Belt type.
    The side links and legs joint structure is reinforced.
    Also suitable for warehouse, workshop, factory, port, wharf and other flat bottom goods centralized transport.

    Flexible Gravity Steel Roller Conveyor
    Flexible gravity steel roller conveyor is specially designed for conveying different sizes of boxes, boxes, cartons and other flat
    base load.This conveyor is very easy to operate quickly in and out of trucks faster, safer and easier to load and unload materials.Suitable for warehouse, airport, wharf, etc
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 36
    Best Selling Product Garment Conveyor Transfer System Conveyor Unloader 38

    Flexible Gravity Skate Wheel Conveyor
    Flexible Gravity skate wheel conveyor is often chosen to convey small and medium sized flat-bottom items in harbor,dock,warehouse
    and storehouse,factory,etc.It is extendable,retractable and bendable.The crossed skate-wheels make sure that the conveyed goods will be automatically oriented an not fall down from sides.The conveyor largely facilitates goods delivery work.
