    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
    Power:2.2 KW
    Dimension(L*W*H):L4700*W600*H700/2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):600 kg
    Belt Material:600mm anti-skiding green PVC belt
    Front Tongue:no
    Loading Height:2500mm
    Adjustable Speed:10-20m/min
    Discharge Height:700mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L3000*W1200*H100mm,500KGS
    Video Description
    Product Overview

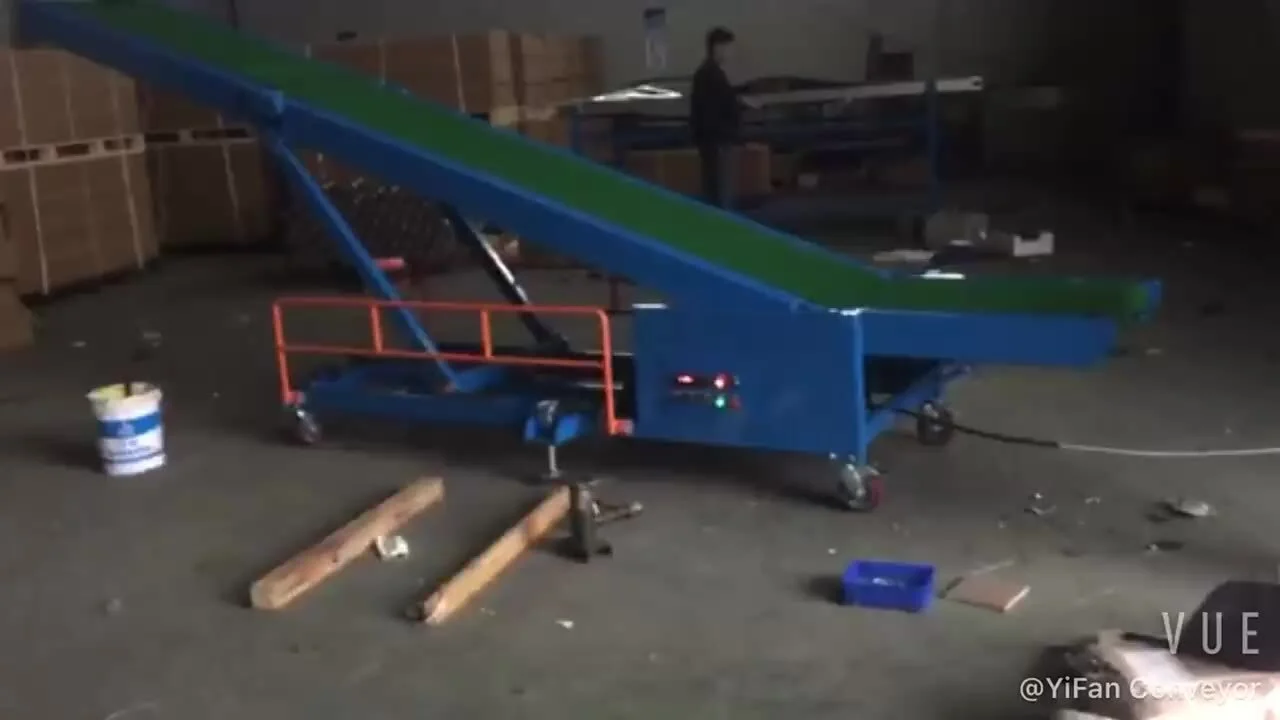

    FOLDABLE TRUCK LOADING CONVEYOR (TLC-F600)


    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 7
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 9
    Front Elevation
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 11
    Left elevation
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 13
    Right Elevation
    Drawing
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 15
    Technical Parameters
    1.Belt Specs:W=600,T=5mm,rough top PVC belt 2.Adjustable Speed:10-20m/min,foward & reverse 3.Adjustable Height:700-2500mm 4.Load Capacity:50kg/m 5.Lift Motor:2.2kw;Belt Motor:1.5kw 6.Power Supply:380V,3-PH,50Hz or 220V,1-PH,50Hz 7.Packing Size:L3000*W1200*H1000,3.6CBM,G.W.:730KGS
    Successful Project

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 17
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 19
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 21
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 23
    Packing and Shipping
    One 20ft container can load 2nos of TLC-F600
    One 40ft container can load 4nos of TLC-F600
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 25
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 27
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 29
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 31
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 33
    Company Profile
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 35
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 37
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 39
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 41
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 43
    Best selling product belt conveyor manufacturer chicken food truck fully load conveyor 45
    The factory of YiFan Conveyor has passed ISO9001: 2008 international quality certification. High-quality swivel braked castors are equipped to ensure the greatest safety. Ningbo YiFan Conveyor Equipment Co.,Ltd has a management team with rich overseas experience. High-quality swivel braked castors are equipped to ensure the greatest safety.
