3mm thickness
PVC material
YiFan Conveyor - Conveyor Manufacturer and One-Stop Solution Service Provider for Truck Loading Conveyor and Flexible Roller Conveyor System.
Best price dockless mini mobile belt conveyor
5.0
Start Port:
Sea freight
Payment:
1 - 5(Sets):30(days),>5(Sets):Negotiable(days)
MOQ:
[{'sku_name': '50KG', 'sku_img': None, 'sku_id': '100005813:-1;'}]
Model:
[{'sku_name': 'Vertical Conveyor', 'sku_img': None, 'sku_id': '191284229:1875817511;'}, {'sku_name': 'Other', 'sku_img': None, 'sku_id': '191284229:4;'}]
Load Capacity:
[{'sku_name': 'TLC-E600', 'sku_img': None, 'sku_id': '3:-1;'}]
Certification:
Customized logo (Min. Order: 3 Sets),Customized packaging (Min. Order: 3 Sets),Graphic customization (Min. Order: 3 Sets)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Overview
Quick Details
Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
After Warranty Service:Video technical support, Online support
Local Service Location:None
Showroom Location:None
Condition:New
Material:Carbon Steel
Material Feature:Heat Resistant
Structure:Belt Conveyor
Place of Origin:Zhejiang, China
Brand Name:YiFan
Voltage:220V/380V, 220V/380V
Power:2.2 KW
Dimension(L*W*H):L4000*W600*H800/1500 mm
Certification:CE
Warranty:1 Year
After-sales Service Provided:Free spare parts
Width or Diameter:600mm
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Marketing Type:Hot Product 2021
Warranty of core components:1 Year
Core Components:Motor, Gear, Gearbox, Frequency Inverter
Weight (KG):350 kg
Belt Width:600mm or 800mm
Belt Material:smooth PVC belt
Adjustable Speed:10-20m/min
Conveyor Height:800-1500mm
Motor Power:0.75KW
Control Panel:Belt Forward, Stop, Reverse,Emergency Stop
Caster:6" swivel lockable PU casters
Packing Size:L4000*W800*H800mm
Video Description
Product Overview

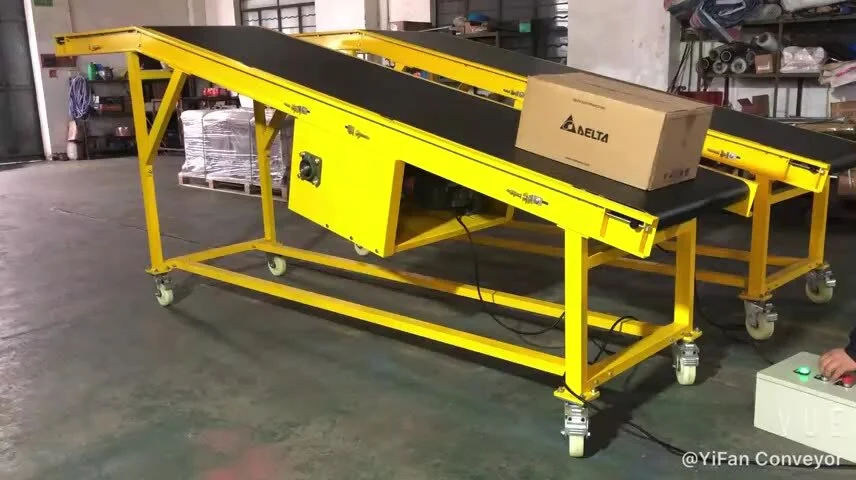

MINI TRUCK LOADING CONVEYOR (TLC-E600)
Reference Drawing
Application Picture
Details Images
600mm width
Horizontal length can be customized.
The frame is fixed by bolt, which can be easily dismantled for packing.
Power Indicator,Belt Forward,Stop,Reverse
Emergency Stop
The conveyor is easy to move around on 6 inches castors
Successful Project
2012 Project In Mombasa,Kenya
Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR
The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor
We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600
Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600
Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
2016 Project In Kenya Cartons loading unloading container/trucks/trailers
Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
2016 Project In Kenya Bags stacking mobile belt conveyor
Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
Company Profile
With the help of this product, large scale production is possible with less investment in less time. It could be a valuable asset for the company. Its side plates are made of high-quality steel, ensuring maximum strength and durability.
The use of this product makes workers encounter lesser fatigue and tiredness. It greatly helps reduce the workload of workers. Its side plates are made of high-quality steel, ensuring maximum strength and durability.
