    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Heat Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:220V/380V, 220V/380V
    Power:2.2 KW
    Dimension(L*W*H):L4700*W600*H700/2500 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):800 kg
    Belt Width:600mm
    Belt Material:anti-skiding green PVC belt
    Front Tongue:4.2m powered roller
    Adjustable Speed:10-20m/min
    Discharge Height:700-2500mm
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L4900*W1240*H1625mm
    Video Description
    Product Overview

    TLC-P600 TRUCK LOADING CONVEYOR

    Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.The Truck Loading Conveyor is consist of two parts: Front Flexible Tongue and Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock,distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors.It largely facilitates goods handling work and increase work efficiency.

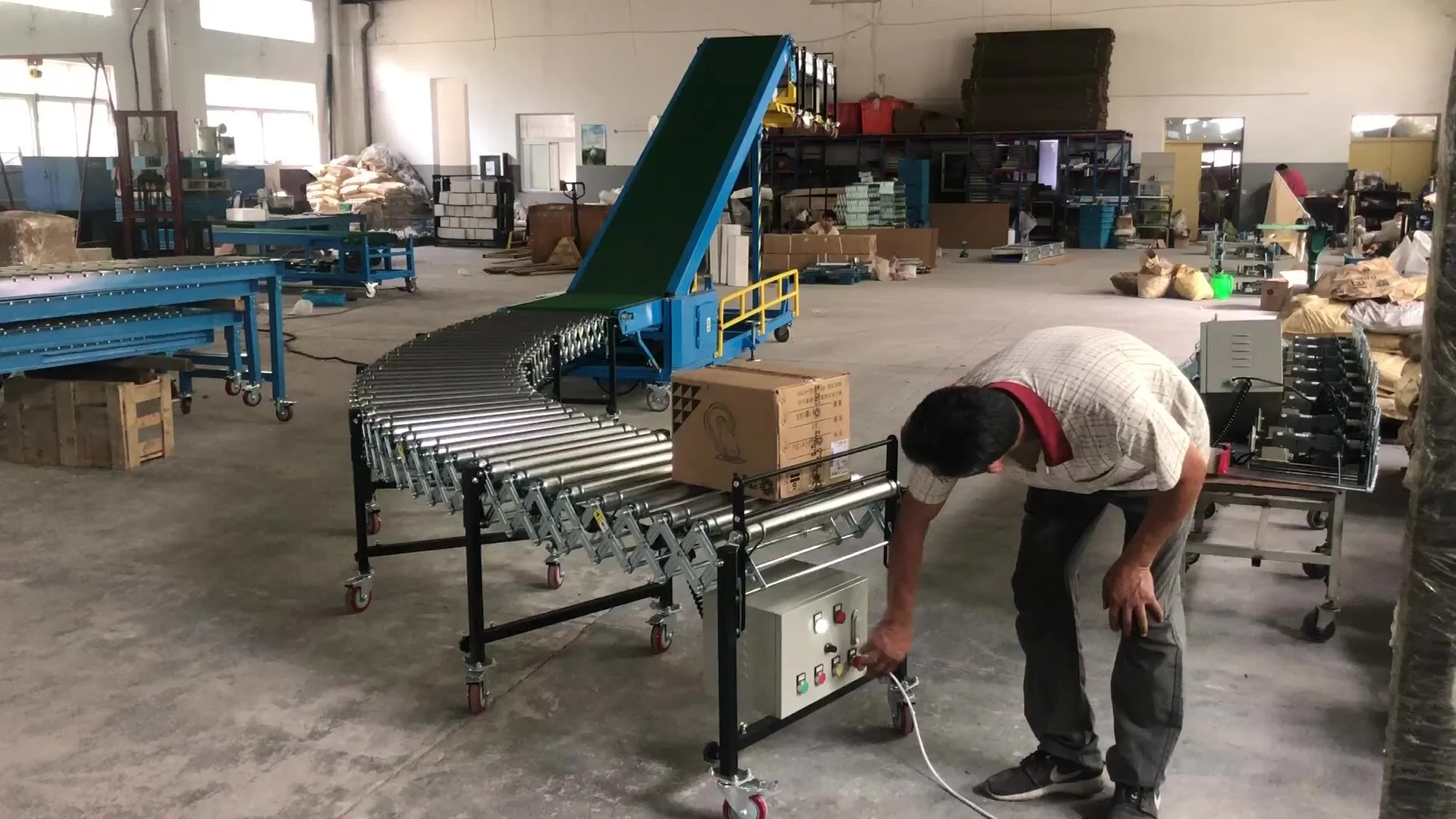

    Part 1 4.2m extendable powered roller conveyor 700-1000mm adjustable height 10-18m/min adjustable speed independent control box two way operation Part 2 Inclined Belt Conveyor 700-2500mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 8
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 10
    Front Elevation
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 12
    Left elevation
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 14
    Right Elevation
    Model List
    Model
    Belt Width
    (mm)
    L1(mm)
    L2(mm)
    L3(mm)
    L(mm)
    H1(mm)
    H2(mm)
    TLC-P600
    600
    900
    3700
    1800
    4200
    700
    700-2500
    TLC-P800
    800
    900
    3700
    1800
    4200
    700
    700-2500
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 16
    Details Images
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 18
    With Load,Unload,Up,Down,Emergency Stop,Speed Kob buttons
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 20
    Control panel covered by a lockable door
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 22
    Flexible conveyor bracket and main conveyor are joint by screws
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 24
    Mobile on lockable swivel casters
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 26
    Screw lift system
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 28
    With two side guards
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 30
    Belt tighten system
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 32
    PVC anti-skiding belt
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 34
    Lock the foot to be more stable when rise up
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 36
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 38
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 40
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 42

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 44
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 46
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 48
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 50

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 52
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 54
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 56
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 58

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 60
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 62
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 64
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 66

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 68
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 70
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 72
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 74

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 76
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 78
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 80
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 82
    Packing and Shipping
    One 20ft container can load 2nos of TLC-P600
    One 40ft container can load 4nos of TLC-P600
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 84
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 86
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 88
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 90
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 92
    Installation Instructions
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 94
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 96
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 98
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 100
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 102
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 104
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 106
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 108
    Similar Products
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 110
    TLC-G600
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 112
    TLC-S600
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 114
    TLC-F600
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 116
    TLC-600
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 118
    TLC-W800
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 120
    TLC-L600
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 122
    TLC-E600
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 124
    TLC-600
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 126
    CBLC-600
    Company Profile
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 128
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 130
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 132
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 134
    Belt Conveyor for Truck Loading Unloading Container Truck Load Unload 136
    FAQ

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.

    This product consumes little electricity and helps save on much energy costs due to its high efficiency. In this way, it will contribute to a reduction in operation costs. One of the highlights is its precise dimensions. The product reduces the needs for unskillful workers and allows them to do other labor-required works, which promotes reasonable labor division. One of the highlights is its precise dimensions.
