    Overview
    Quick Details
    Applicable Industries:Garment Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company, Distribution Center, E-business Warehouse, Store, Third Party Logistics, Packaging Company
    After Warranty Service:Video technical support, Online support
    Local Service Location:None
    Showroom Location:None
    Condition:New
    Material:Carbon Steel
    Material Feature:Fire Resistant
    Structure:Belt Conveyor
    Place of Origin:Zhejiang, China
    Brand Name:YiFan
    Voltage:AC 110V/220V/380V, 220V,1-Phase,50Hz or 380V,3-Phase,50Hz
    Power:2.2 KW
    Dimension(L*W*H):L5100*W600*H1000/2300 mm
    Certification:CE
    Warranty:1 Year
    After-sales Service Provided:Free spare parts
    Width or Diameter:600mm
    Machinery Test Report:Not Available
    Video outgoing-inspection:Provided
    Marketing Type:Hot Product 2020
    Warranty of core components:1 Year
    Core Components:Motor, Gear, Pump, Gearbox, Frequency Inverter
    Weight (KG):1000 kg
    Belt Width:600mm
    Belt Material:anti-skiding green PVC belt
    Adjustable Height:1000-2300mm
    Flexible Tongue:7.2m powered roller
    Adjustable Speed:10-20m/min
    Motor Power:1.5kw,2.2kw
    Control Panel:Belt Forward, Stop, Reverse,Up, Down, Emergency Stop
    Caster:6" heavy duty swivel lockable PU casters
    Packing Size:L4900*W1240*H1625mm,850KGS

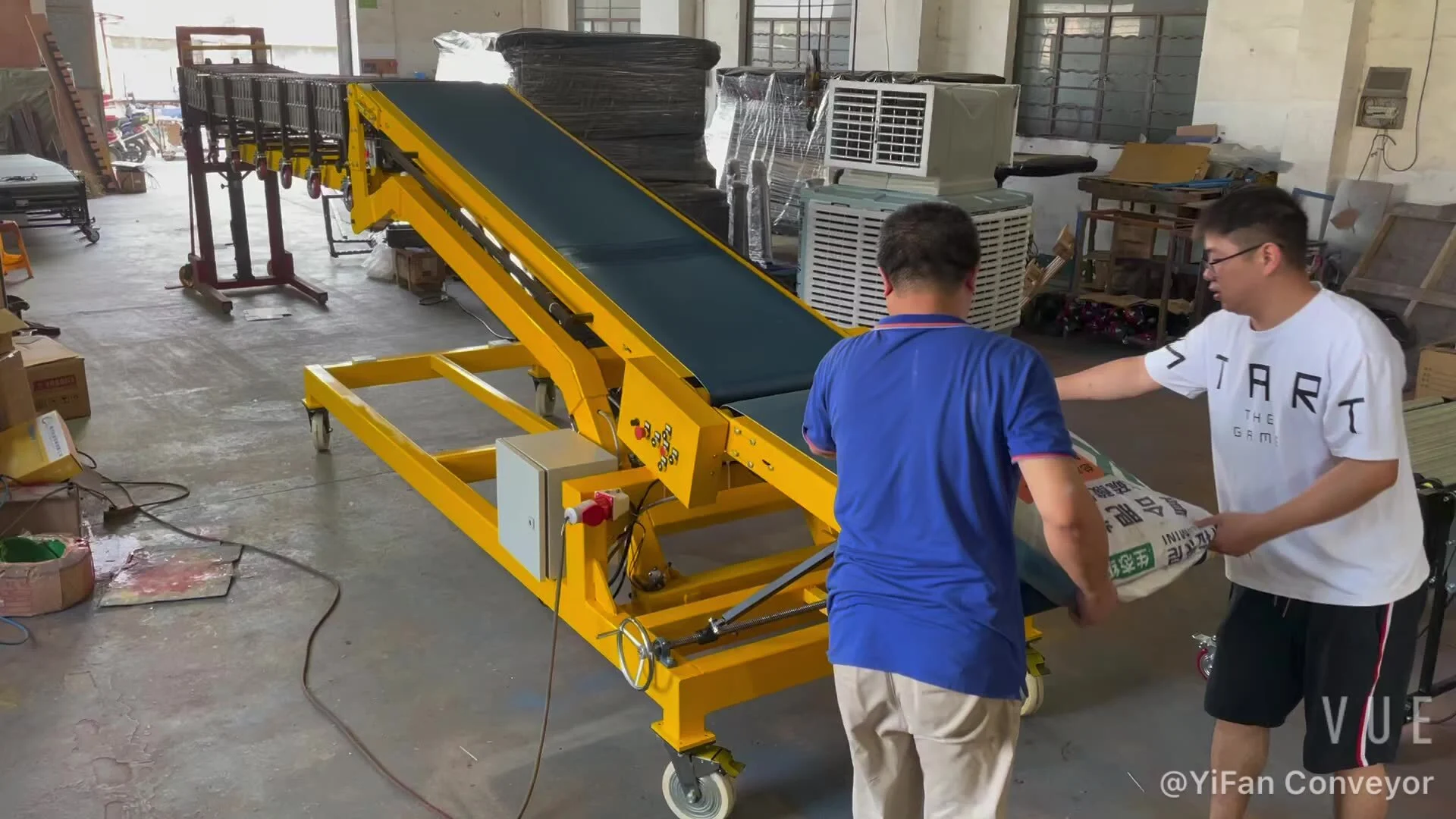

    Video Description
    Product Overview

    CBLC-600 20FT CONTAINER LOADING CONVEYOR

    Automatic trailer,van,truck,container loading and unloading conveyor is CONSISTS OF TWO PARTS: Front Flexible Tongue & Inclined Belt Conveyor.It is designed to endure the rigorous demands of warehouse,harbor,airport,dock, distribution center and parcel handling hubs around the world,which is extremely flexible and easily move into position on braked swivel castors. YiFan's CBLC-600 truck loading conveyor is an upgraded senior model with 7.2m heavy duty flexible powered roller conveyor as stretch arm. It is very popular to automatically load/unload goods in and out containers in warehouse without loading docks.The mechanized operation largely increases work efficiency, relieves labor intensity and also reduces cost for modern enterprises in a wide range of applications. It facilitates goods handling work and also provides advantages to advanced production, modernized management and safe operation.
    Part 1 7.2m extendable powered roller conveyor 600-800mm adjustable height 10-18m/min adjustable speed independent control box two way operation Part 2 Inclined Belt Conveyor 1050-2300mm adjustable height loading & unloading 10-20m/min adjustable speed 50kg/m load capacity
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 8
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 10
    Front Elevation
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 12
    The flexible conveyor can be removed
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 14
    The bracket is easy take off
    Model List
    Model
    Belt Width
    (mm)
    L1(mm)
    L2(mm)
    L3(mm)
    L(mm)
    H1(mm)
    H2(mm)
    CBLC-600
    600
    1100
    3000
    3100
    7200
    750
    1050-2300
    CBLC-800
    800
    1100
    3000
    3100
    7200
    750
    1050-2300
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 16
    Details Images
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 18
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 20
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 22
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 24
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 26
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 28
    With Load,Unload,Up,Down,Emergency Stop
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 30
    Electric box of inclined belt conveyor
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 32
    Flexible conveyor bracket and main conveyor are joint by screws
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 34
    Slave conveyor with adjustable height
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 36
    Main conveyor lift by hydraulic lift
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 38
    7.2m powered roller stretch arm
    Successful Project

    2012 Project In Mombasa,Kenya

    Loading soap bar cartons from store area directly into 20ft & 40ft containers by TLC-P600 & FPR The TLC-P600 combine with flexible expandable powered roller conveyor is the most safe, easy and efficient way for plant warehouse, E-commerce stores and courier company distribution center to load unload all kinds of container/vehicles/trailers/vans/trucks.
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 40
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 42
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 44
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 46

    2013 Project In Mombasa,Kenya Loading 25KG soft powder bags directly from warehouse into 40ft containers by TLC-600 & Mobile Belt Conveyor

    We have rich experience in loading 50KG flour/rice/fertilizer bags to trucks/containers by truck loading conveyor, flexible powered roller conveyor and mobile belt conveyor.
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 48
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 50
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 52
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 54

    2014 Project In Bangladesh Transport 60KG tea bags from 2nd floor to ground floor and loading into trucks by TLC-P600

    Adopt flexible powered PU rollers conveyor to ransport 50KGS tea bags from 2nd floor store house and go down on vertical lifting conveyor to ground floor, directly load into trucks by TLC-P600.
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 56
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 58
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 60
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 62

    2015 Project In Kenya Unloading 10ltr and 20ltr Edible Oil Jerry Cans from Vans by TLC-600

    Flexible powered roller conveyor is very popular in store house with limit space, as it can take curve freely. After unloading the jerry cans from the vans, it go freely inside the storeroom.
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 64
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 66
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 68
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 70

    2016 Project In Kenya Cartons loading unloading container/trucks/trailers

    Truck Loading Conveyor combine with mobile belt conveyor, 90 degree curve roller conveyor for loading unloading all kinds of cartons/boxes/bags
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 72
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 74
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 76
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 78

    2016 Project In Kenya Bags stacking mobile belt conveyor

    Bags Stacking Mobile Belt Conveyor combine with straight PVC belt conveyor for loading unloading and stacking all kinds of cartons/boxes/bags
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 80
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 82
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 84
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 86
    Packing and Shipping
    One 20ft container can load 2nos of TLC-P600
    One 40ft container can load 4nos of TLC-P600
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 88
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 90
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 92
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 94
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 96
    Installation Instructions
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 98
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 100
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 102
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 104
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 106
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 108
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 110
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 112
    Exhibition
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 114
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 116
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 118
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 120
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 122
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 124
    Similar Products
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 126
    TLC-G600
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 128
    TLC-S600
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 130
    TLC-F600
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 132
    TLC-600
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 134
    TLC-W800
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 136
    TLC-L600
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 138
    TLC-E600
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 140
    TLC-600
    Bag Loading Belt Conveyors for Truck Loading Adjustable Height Belt Conveyor 142
    CBLC-600
    FAQ

    Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

    How long is the production time?
    YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

    What is the MOQ?
    YIFAN: 1 unit

    Can your company provide OEM & ODM service
    YIFAN: yes

    Can you do customized conveyors?
    YIFAN: yes

    Do you offer installation service abroad?
    YIFAN: yes

    What is the payment terms?
    YIFAN: T/T,LC,

    What is the delivery port?
    YIFAN: Ningbo/Shanghai

    How many years have you been in this industry?
    YIFAN: 10 years

    What is the HS code?
    YIFAN: 84283300,84283920,84283990

    Is YIFAN a trading company or factory?
    YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

    Which industry can your conveyors be applied to?
    YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
    YIFAN:: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
